Oscilloscope with 200MHz touch screen (Professional range)

Material on request
€2,667.81 Tax included

€2,204.80 tax excl.

Oscilloscope with 8" touch screen. 200 MHz bandwidth and real-time sampling rate up to 2 GS/s. USB 2.0 connectivity, USB for file storage, LAN and VGA

Reference: OD-624B



No queries yet, leave the first!

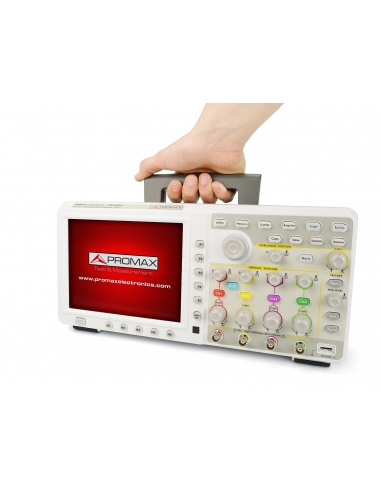

thePROMAX OD-624 is an oscilloscope with a bandwidth of up to 200 MHz and a real-time sampling rate of up to 2 GS/s. This professional digital oscilloscope has a large 8" touch screen.

They include advanced features such as different trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Its compact design and low weight make this oscilloscope ideal not only for desktop applications such as circuit design or production lines but also for those cases that require transporting the instrument from one place to another: Car maintenance, education and training, etc.

Brand/Supplier: PROMAX
Reference: OD-624B

Specifications:
  • Bandwidth: 200MHz
  • Sampling: 2 GS/s
  • Channels: 4
  • Horizontal scale (s/div): 2 ns/div to 100 s/div, 1-2-5 steps
  • Sync: Flank, Pulse, Video, Slope
  • Registration length: 7.6M
  • Display: 8" color TFT touch, 800x600 pixels

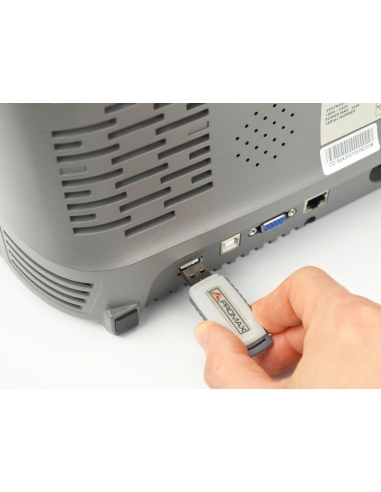

  • Communication interfaces: USB 2.0, USB for file storage, LAN port, VGA port
  • Included Accessories: Passive Probe (x4), Power Cable, USB Cable, Quick Guide


Calibration certificate not included in the supply. It must be requested before placing the order.
