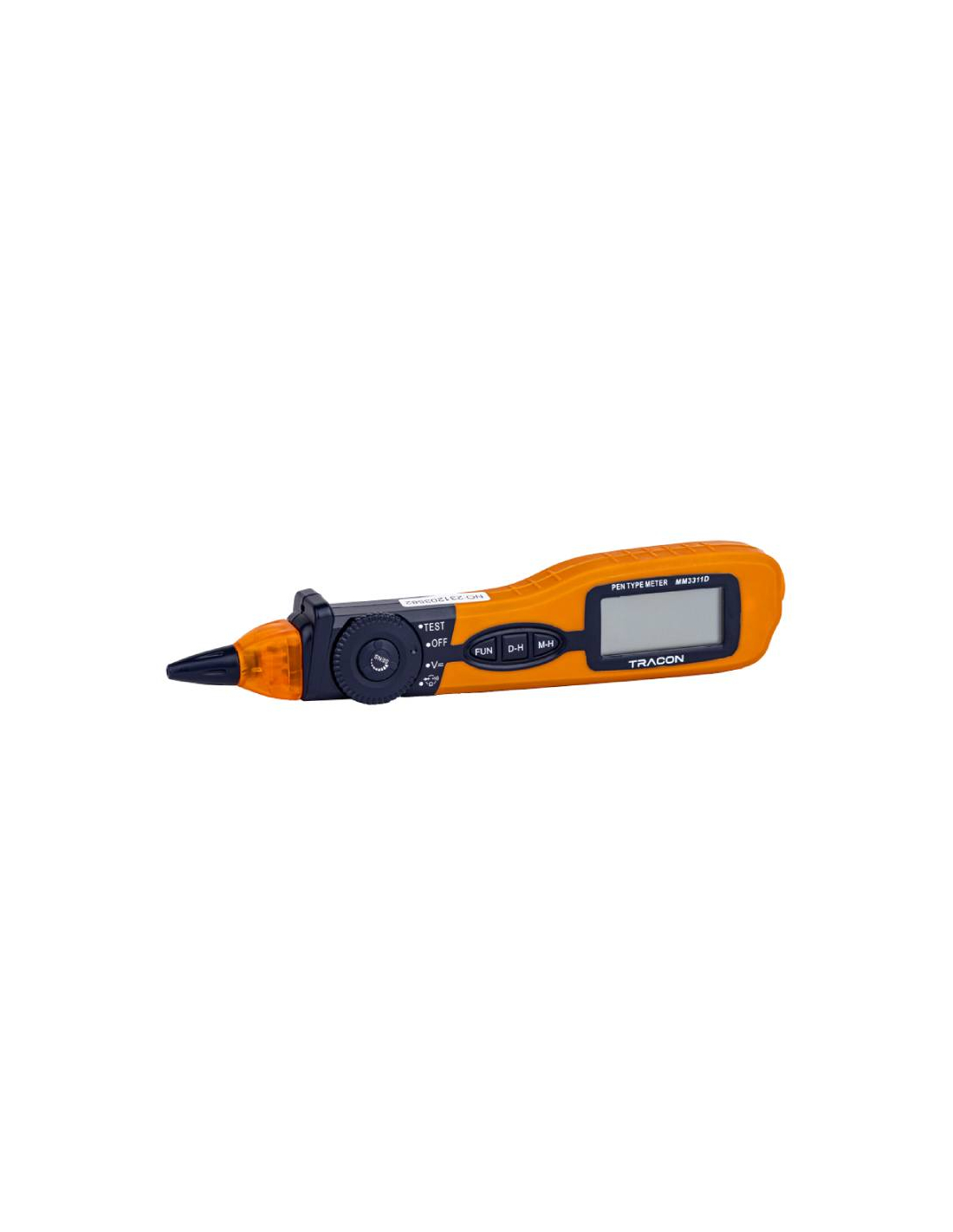

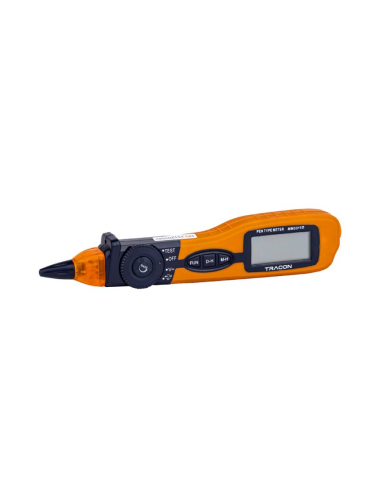

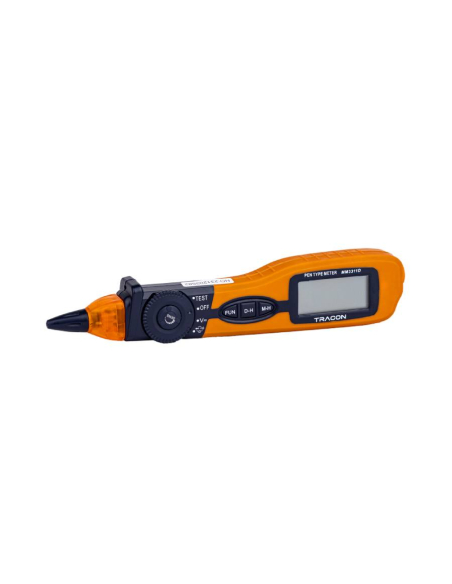

MM3311D CAT III Pen Type Digital Multimeter

Name: MM3311D CAT III Pen Type Digital Multimeter
Brand: TRACON
SKU: MM3311D
Price: 42.77 EUR
Availability: BackOrder

€42.77 Tax included

35.35 tax excl.

MM3311D

Pencil type digital multimeter measurement category CAT III. Performs direct and alternating voltage measurement, resistance, diode and continuity testing, non-contact voltage detection.

Reference: MM3311D

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Small pen-type digital multimeter, CAT III measurement category. It performs measurements of voltage, resistance, diode testing, continuity and has non-contact voltage detection with light indicator. Easy-to-use meter, compact size and lightweight with flexible measuring head.

Manufacturer/Supplier: Tracon
Reference: MM3311D

Technical specifications:

DC voltage: 200mV, 2V, 20V, 200V, 600V
AC voltage: 2V, 20V, 200V, 600V
Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
Diodes: 1.5V / 1mA
Continuity:

Other functions and features:

3.5 digit LCD display
Backlit display
Measurement interval selection: Automatic
HOLD function (data retention )
MAX Values
Low battery indicator
Auto power off
Operating temperature: 0～40°C
Battery: 2 x 1.5V AAA (not included)
Dimensions: 229 × 43 × 25mm
Weight: 120g

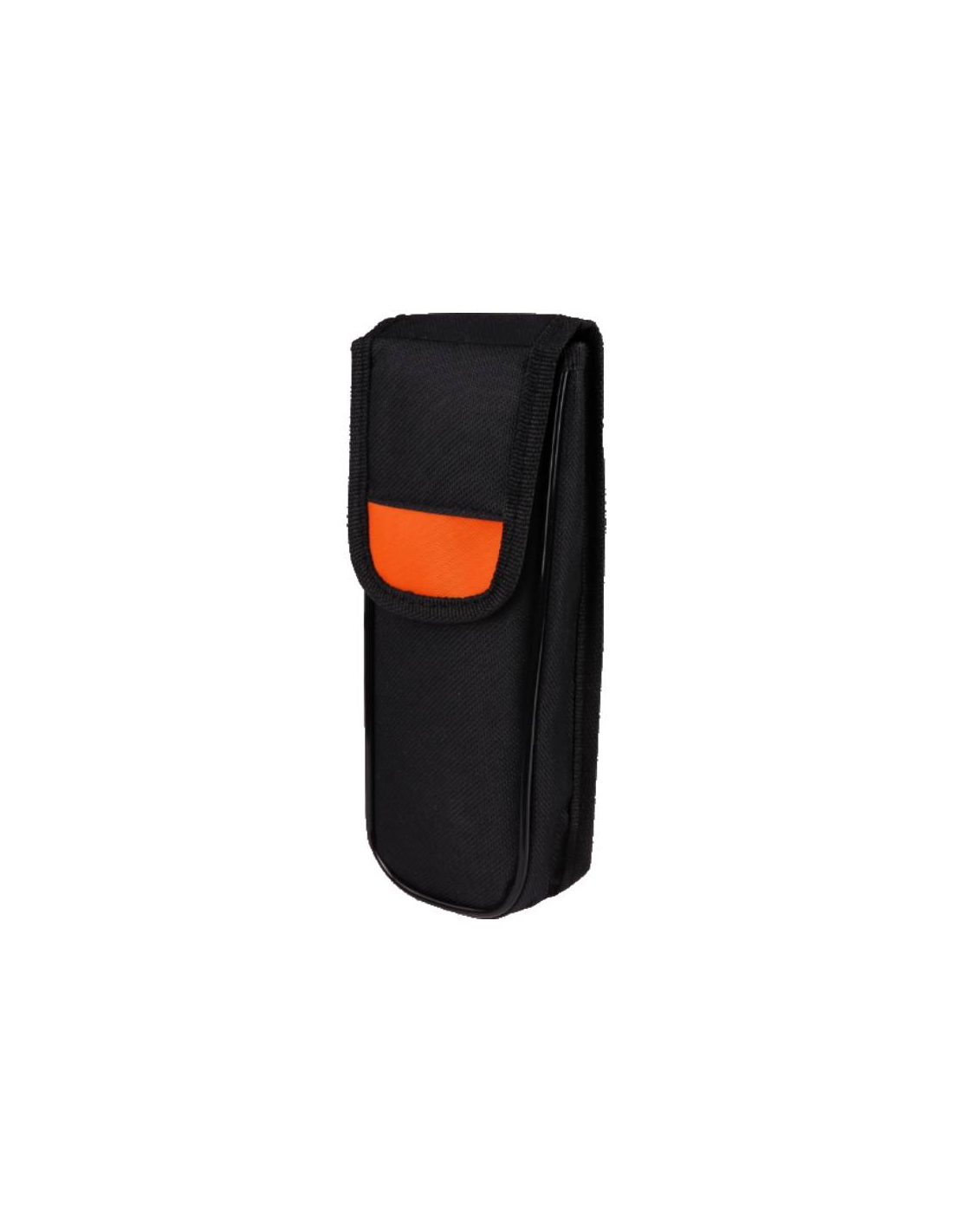

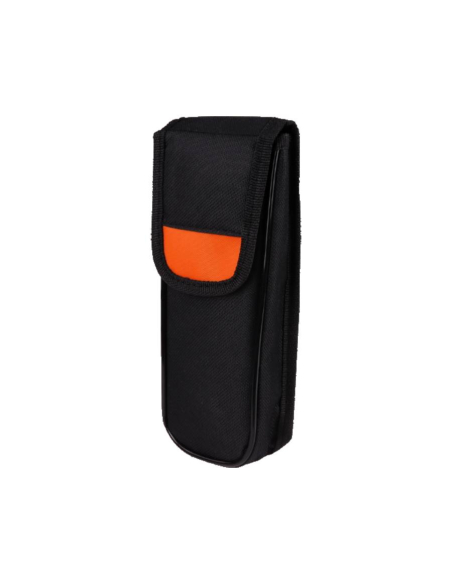

Accessories: Case, test leads
Regulations: EN 61010-1, EN 61326-1

Manual MM3311D_ES

Download (143.91KB)

Instructions for use MM3311D_EN

Download (141.24KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

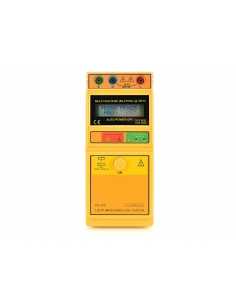

Ground, loop and short circuit resistance meter PROMAX / ADAJUSA

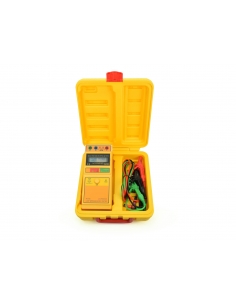

Ground, loop and short circuit resistance meter PROMAX / ADAJUSA 2

Material available in 3-5 days

Measuring instruments

Ground meter without spades PE-425 for ground impedance loop and short - PROMAX

PROMAX

PE-425

€622.55 (€514.50 tax excl.)

It measures the loop impedance and PCC (Probable Short Circuit Current) at scales from 0.3 to 2000 Ohms. Reference: PE-425

Measuring instruments

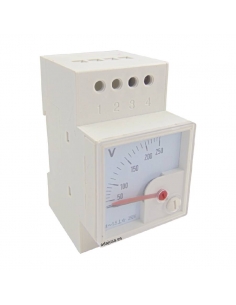

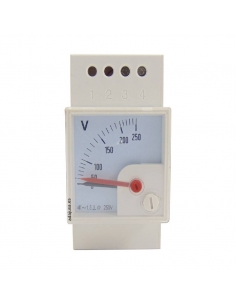

Voltmeter 0-250Vac DIN rail

XBS

AMV/250

€10.72 (€8.86 tax excl.)

Analog voltmeter for AC voltage measurements from 0 to 250V. DIN rail mounting, 2.5 modules wide. It allows to display in a very fast and simple way the value of a voltage. Part number: AMV/250 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

Power factor meter 1 phase panel 72x72mm | ADAJUSA | price

Power factor meter 1 phase panel 72x72mm | ADAJUSA | price 2

Measuring instruments

Power factor meter 1 phase 72x72

TRACON

CF72-0,5/1

€33.30 (€27.52 tax excl.)

Power factor meter (cos φ) for single-phase networks with inductive or capacitive loads, mounting Rear panel of 72x72mm. It allows a quick visualization of the power factor of the installation. Reference: CF72-0,5/1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Material available in 3-5 days

Measuring instruments

Oscilloscope OD-610 100MHz - PROMAX

PROMAX

OD-610

€1,143.45 (€945.00 tax excl.)

Oscilloscope with 100 MHz bandwidth and real-time sampling rate up to 1 GS/s. With 8" screen and USB 2.0 connectivity, USB for file storage, LAN and RS-232. Reference: OD-610

Window type current transformer 150/5A AV40150SH ADAJUSA | price

Measuring instruments

Current transformer 150/5A size 40 AV40SH Series

TRACON

AV40150SH

€14.13 (€11.68 tax excl.)

Window type current transformer size 40 for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame, with cable or bus bar . Accuracy class 0.5. Current transformation ratio 150/5A. Reference: AV40150SH Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Ammeter direct measurement 30 A 72x72mm moving coil instrument | ADAJUSA : price

Ammeter direct measurement 30 A 72x72mm moving coil instrument | ADAJUSA : price 2

Measuring instruments

Ammeter direct measurement 0-30A 72x72

TRACON

ACAM72-30

€14.48 (€11.97 tax excl.)

Analog ammeter for direct measurement, measuring range 0-30 A in alternating current without current transformer. Mounting Rear panel of 72x72mm. It allows to visualize in a very fast and visual way the value of a current. Reference: ACAM72-30 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

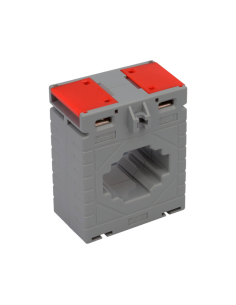

Window type current transformer 200/5A AV40200SH ADAJUSA | price

Measuring instruments

Current transformer 200/5A size 40 AV40SH Series

TRACON

AV40200SH

€15.94 (€13.17 tax excl.)

Window type current transformer size 40 for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame, with cable or bus bar . Accuracy class 0.5. Current transformation ratio 200/5A. Reference: AV40200SH Representative image for illustrative purposes, the item supplied will correspond to the specifications...

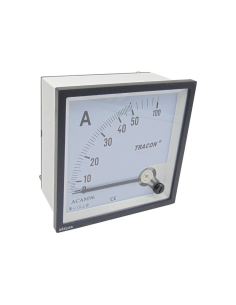

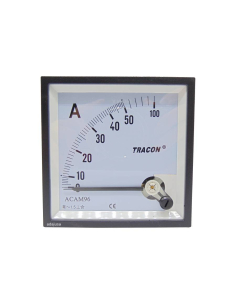

Ammeter direct measurement 50 A 96x96mm 96x96mm moving coil instrument | ADAJUSA : price

Ammeter direct measurement 50 A 96x96mm 96x96mm moving coil instrument | ADAJUSA : price 2

Measuring instruments

Ammeter for direct measurement 0-50A 96x96

TRACON

ACAM96-50

€16.46 (€13.60 tax excl.)

Analog ammeter for direct measurement, measuring range 0-50 A in alternating current without current transformer. Mounting Rear panel of 96x96mm. It allows to visualize in a very fast and visual way the value of a current. Reference: ACAM96-50 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

TRMS Bluetooth digital multimeter PD-352 PROMAX / ADAJUSA

TRMS Bluetooth digital multimeter PD-352 PROMAX / ADAJUSA 2

Measuring instruments

Digital Multimeter PD-352 TRMS with Bluetooth - PROMAX

PROMAX

PD-352

€152.46 (€126.00 tax excl.)

Digital multimeter with Bluetooth remote control (via Android app), true effective value (True RMS) and voice, employment category CATIII (1000 V). Performs measurements of voltage, current, resistance, capacity, frequency, diodes, transistors, continuity and temperature. 3 5/6 digit backlit display. Reference: PD-352

Banana hose male-male red| ADAJUSA : price

Connectors and banana plugs

Male-male banana hose red 1m

EUROCONNEX

3437R

€5.51 (€4.55 tax excl.)

Red male male banana cable, 1 meter cable. With screw connection and side socket for connection of another banana. Part number: 3437R Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Digital voltage detector 250Vac| ADAJUSA | price

Digital voltage detector 250Vac| ADAJUSA | price 2

Measuring instruments

250Vac digital voltage detector

TRACON

FK16ACDC

€10.72 (€8.86 tax excl.)

Voltage detector with LCD screen, allows you to safely detect the presence of voltage (up to 250Vac) by displaying the detected value on the screen. Ideal for locating cuts, checking fuses, identifying phases, etc. Reference: FK16ACDC Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Measuring instruments

Ammeter 0-40A DIN rail

XBS

AMA-40

€10.72 (€8.86 tax excl.)

Ammeter 0-40 A in alternating current, for transpanel mounting, 45mm wide. It allows to visualize in a very fast and visual way the value of a current. Reference: AMA-40Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

View

Cam voltmeter switch for phase-to-phase/phase-to-neutral measurement TKU-K | ADAJUSA | price

Selector switches for measuring instruments

Phase-phase/phase-neutral voltage voltmeter switch

TRACON

TKU-K

€17.70 (€14.63 tax excl.)

Changeover switch for voltmeter, measurement between phase-neutral and phase-phase in three-phase circuits, 7 positions AB-BC-CA-0-ABC (L1L2-L2L3-L3-L1-0-L1N-L2N-L3N) with 90º rotating handle. Front plate size 48x48mm in grey colour with black handle. Reference: TKU-K Representative image for illustrative purposes, the item supplied will correspond to...

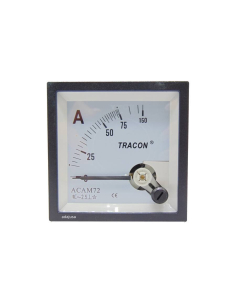

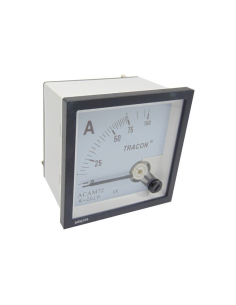

Ammeter direct measure 75 A 72x72mm moving coil instrument | ADAJUSA | price

Ammeter direct measure 75 A 72x72mm moving coil instrument | ADAJUSA | price 2

Measuring instruments

Ammeter direct measurement 0-75A 72x72

TRACON

ACAM72-75

€15.58 (€12.88 tax excl.)

Analog ammeter for direct measurement, measuring range 0-75 A in alternating current without current transformer. Mounting Rear panel of 72x72mm. It allows to visualize in a very fast and visual way the value of a current. Reference: ACAM72-75 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Ammeter direct measurement 20 mA 96x96mm moving coil instrument | ADAJUSA | price

Ammeter direct measurement 20 mA 96x96mm moving coil instrument | ADAJUSA | price 2

Measuring instruments

Ammeter direct measurement 0-20mAdc 96x96

TRACON

DCAM96-0,02

€15.56 (€12.86 tax excl.)

Analog ammeter for direct measurement, measurement range 0-20 mA in direct current without the need for a current transformer. 96x96mm transpanel mounting. It allows you to view the value of a current in a very quick and visual way. Reference : DCAM96-0.02 Representative image for illustrative purposes, the item supplied will correspond to the...

Current transformer 100/5A AVBS-100 ADAJUSA | price

Measuring instruments

Current transformer 100/5A AVBS series

TRACON

AVBS-100

€20.24 (€16.73 tax excl.)

Current transformer for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame . Accuracy class 0.5. Current transformation ratio 100/5A. Reference: AVBS-100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Signallers "4" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers 4 for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-4

€2.83 (€2.34 tax excl.)

Pre-cut signallers for cables marked "4", for electrical installations, cable size from 1mm to 2.5mm. Bag of 100 units (in 5 strips of 20 numbers).Ref: 1811-4Representative image for illustrative purposes, the item supplied will correspond to the indicated

Power supplies

Power supply 24Vdc 1A 24W DIN-rail - Delta

DELTA

DVPPS01

€47.77 (€39.48 tax excl.)

Power supply switched for controllers DELTA 24Vdc 1A 24W, independent mounting on DIN rail or attached to the controller. Plastic housing. Reference: DVPPS01 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double pre-insulated ferrule (100 pcs), insulated hollow ferrule for 2.5mm cable | ADAJUSA | price

Double insulated toe caps

Bag of 100 pre-insulated 2.5mm double toe

Generico-ELECT

2040179

€4.49 (€3.71 tax excl.)

Bag of 100 pre-insulated double hollow toe for 2.5 mm2 cable, blue color. Manufactured according to norm . Color blue Reference: 2040179 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

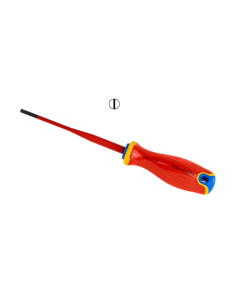

VDE 1000V 4x100mm flathead Screwdriver CD4100 | ADAJUSA | price

VDE 1000V 4x100mm flathead Screwdriver CD4100 | ADAJUSA | price 2

Tools

Flathead Screwdriver 4x100mm VDE 1000V insulation

TRACON

CD4100

€3.30 (€2.73 tax excl.)

VDE insulated flathead Screwdriver 1000Vac/1500Vdc. Size 4x0.8x100mm, magnetized tip and insulated handle. Its light weight and ergonomic handle make it an ideal tool for electrical work. Reference: CD4100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

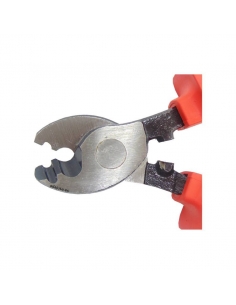

VDE 1000V insulation cutting pliers | Adajusa

VDE 1000V insulation cutting pliers | Adajusa 2

Tools

Insulation cutting pliers VDE 1000V

OMU System

VV-1

€16.61 (€13.73 tax excl.)

VDE 1000V insulated cutting pliers. Size 160mm, blackened and polished head, insulated rubber handle. Light weight and ergonomic handle, recommended for electrical precision cutting work.Reference: VV-1 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Signallers "3" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers 3 for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-3

€2.83 (€2.34 tax excl.)

Pre-cut signallers for cables marked "3", for electrical installations, cable size from 1mm to 2.5mm.Bag of 100 units (in 5 strips of 20 numbers).Ref:1811-3Representative image for illustrative purposes, the item supplied will correspond to the indicated

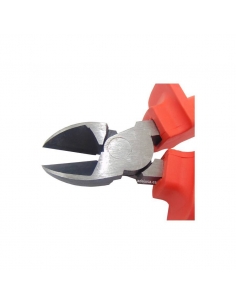

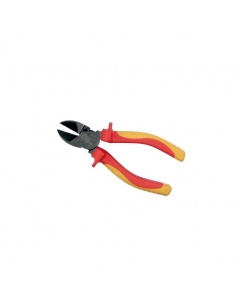

VDE 1000V isolation Diagonal Cutting Pliers | Adajusa

VDE 1000V isolation Diagonal Cutting Pliers | Adajusa 2

Tools

Diagonal cutting pliers insulation VDE 1000V

OMU System

€15.49 (€12.80 tax excl.)

VDE 1000V insulated diagonal cutting pliers. Size 160mm, blackened and polished head, insulated rubber handle. Light weight and ergonomic handle, recommended for electrical precision cutting work.Reference: OF Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Wrench set Allen 9 pieces| ADAJUSA : price

Keys

Wrench set Allen 9 pieces

Extol

6609

€12.41 (€10.26 tax excl.)

Set of wrenches Allen consisting of 9 pieces of different sizes. L-shaped wrenches and long handle with ball-ended tip that allows applying higher torque and reaching hard-to-reach places. Manufactured in high resistance steel that provides a great durability to the tool. Metric sizes included: 1.5 - 2.0 - 2.5 - 3.0 - 4.0 - 5.0 - 6.0 - 8.0 - 10mm Part...

Signallers "2" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers 2 for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-2

€2.83 (€2.34 tax excl.)

Pre-cut signallers for cables marked "2", for electrical installations, cable size from 1mm to 2.5mm.Bag of 100 units (in 5 strips of 20 numbers).Ref: 1811-2Representative image for illustrative purposes, the item supplied will correspond to the indicated

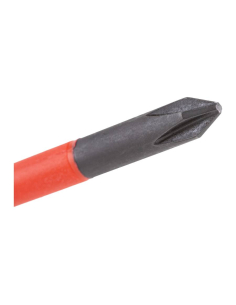

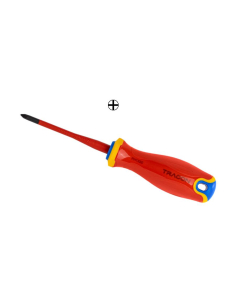

VDE 1000V PH1x80mm Phillips Screwdriver CDPH180 | ADAJUSA | price
