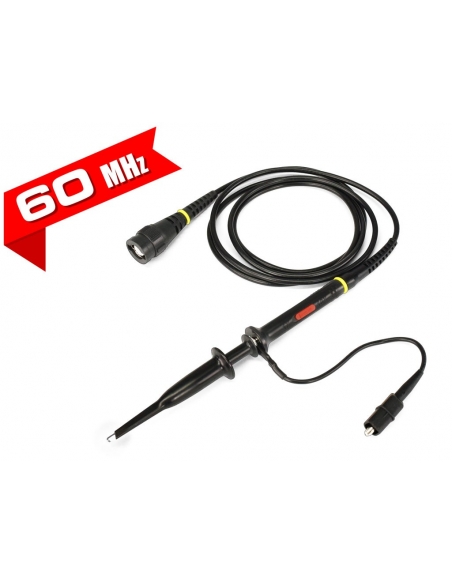

ATTENUATING PROBE SA-060 for oscilloscope (60MHz) - PROMAX

€22.65 Tax included

€18.72 tax excl.

60 MHz attenuating probe certified for PROMAX oscilloscopes with x1 and x10 attenuation factor.

Reference: SA-060



No queries yet, leave the first!


Modular attenuating probes for PROMAX oscilloscopes are included as standard in the oscilloscopes in the catalogue and are also available as optional accessories. The activation of the attenuator (x1 or x10) is done by means of an easily accessible switch in the body of the probe.

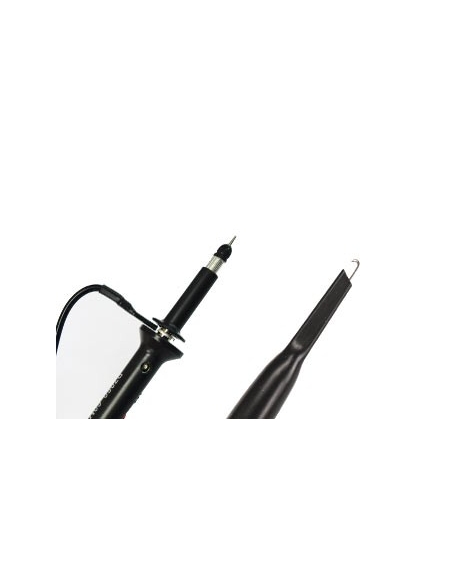

They are connected to the oscilloscope with the BNC terminal and to the circuit under test with a shrink hook. They allow to adjust the low frequency compensation using the reference signal of the oscilloscope.

Attenuating probes include replacement springs and interchangeable color rings for easy identification by the user.

Brand/Supplier: PROMAX
Reference: SA-060


Specs:

  • Attenuation: x1, x10
  • Maximum bandwidth: 60MHz
  • Input resistance: x1 1 MΩ ±2% / x10 10 MΩ ±2%
  • Maximum input voltage: 600V
  • Approximate weight: 55gr
  • Cable length (approximate): 120cm
