Three-phase electric power meter
Three-phase electric power meter

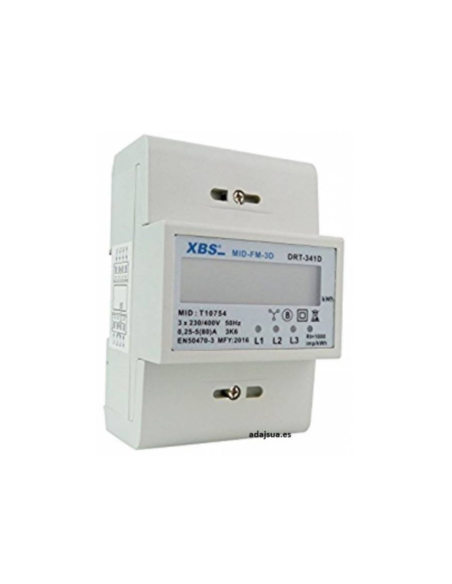

Electric power counter MID-FM-3D three-phase DIN rail

€77.42 Tax included

€63.98 tax excl.

Electric power meter for three-phase installations 3x230/400Vac, active power meter, allows to control the consumption of an installation. DIN rail mounting, digital indication on LCD display. Maximum direct measured current 80A. Complies with MID regulations on measuring instruments.

Reference: MID-FM-3D

No queries yet, leave the first!


Electric power meter meter for consumption control of three-phase installations 3x230/400Vac or machinery. Compact in size, reading is done directly on the LCD display (kWh).

DIN rail mounting, direct connection to the mains, with a maximum intensity of 80A. High reliability and precision in size. Comply with MID standards for measuring instruments.

It has visual indication of counting, by LED, emits a flicker for each pulse counted.

Technical details.

  • Manufacturer/Supplier: XBS_
  • Reference: MID-FM-3D
  • Operating voltage: 3x230/400Vac 50Hz.
  • Operating voltage range: 161/279 - 300/500Vac
  • Ib(Imax) Current: 5(80A)
  • Maximum measured circuit strength: 80A
  • Working current range: 0.4% Ib-Imax
  • Type of measurement: Direct
  • Number of poles: 3
  • Precision class: Class 1
  • Display mode: 6+1 digit LCD display (999999.9 kWh)
  • Consumption:
  • Temperature range: -25oC+50oC
  • LED indicator: 1 flicker per impulse
  • Pulse output: 1000 pulses/kWh
  • Degree of protection: IP51 (With protective cover)
  • Dimensions: 140x70x64mm
  • Mounting type: DIN rail.
  • Standard: compliant with EN50470-3 MID

Installation:
Imangen contador trifasico
