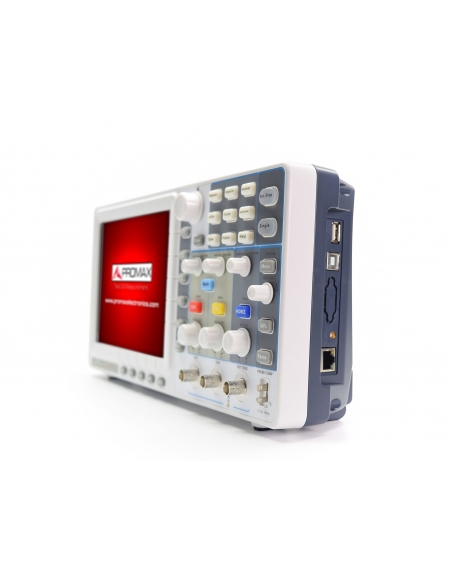

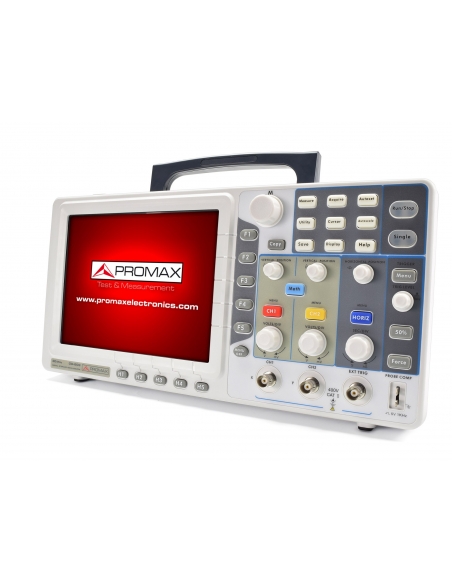

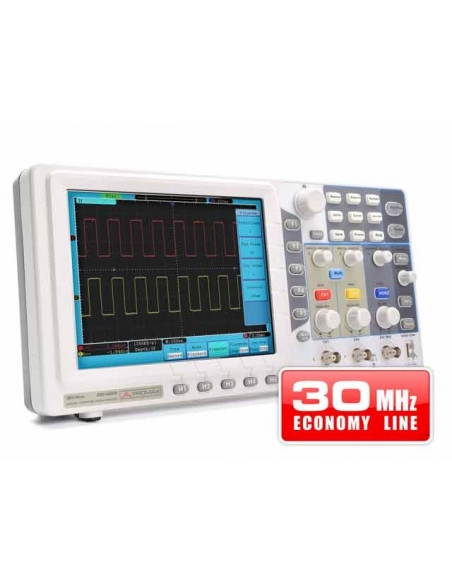

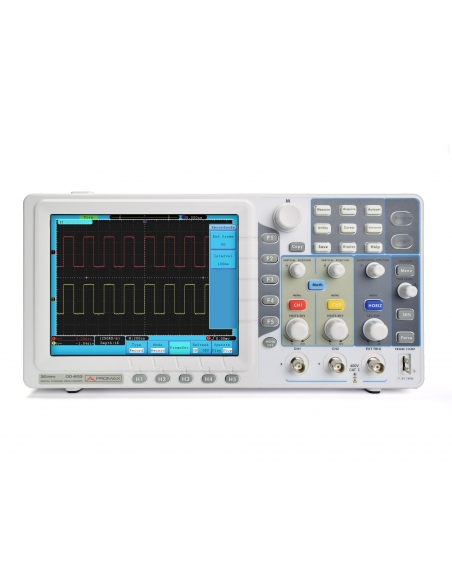

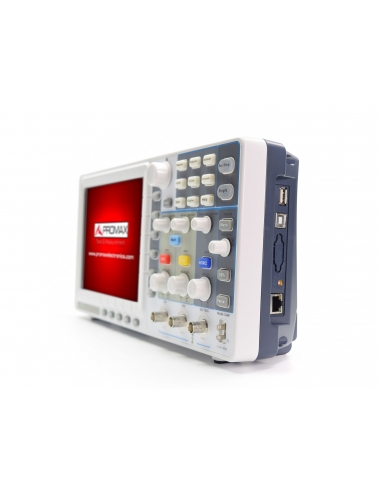

Oscilloscope OD-603 30MHz - PROMAX

The PROMAX OD-603 oscilloscope is an oscilloscope with a bandwidth of up to 30 MHz and a real-time sampling rate of up to 500 MS/s. This economical digital oscilloscope has a large 8' screen.

They include advanced features such as different trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

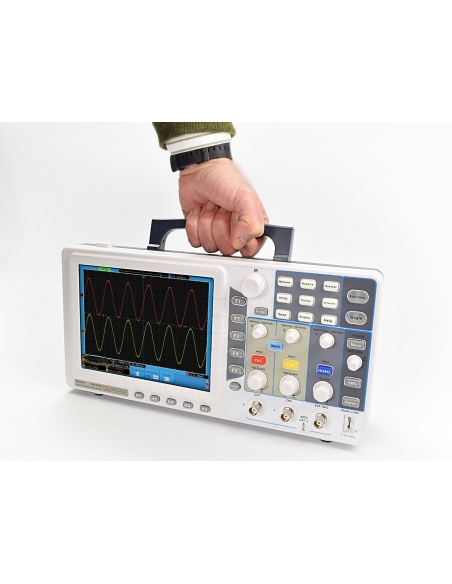

Its ultra-thin body (only 8 cm deep), compact design and low weight make this oscilloscope ideal not only for desktop applications such as circuit design or production lines but also for those cases that require transporting the instrument from one place to another: Car maintenance, education and training, etc.

Brand/Supplier: PROMAX
Reference: OD-603

• Bandwidth: 30MHz
• Sampling: 500 MS/s
• Channels: 2 + 1 (external)
• Horizontal scale (s/div): 4 ns/div to 100 s/div, 1-2-4 steps
• Sync: Flank, Pulse, Video, Slope
• Registration length: 10K
• Display: 8" color TFT, 800x600 pixels
• Communication interfaces: USB 2.0, USB for file storage, LAN, RS-232

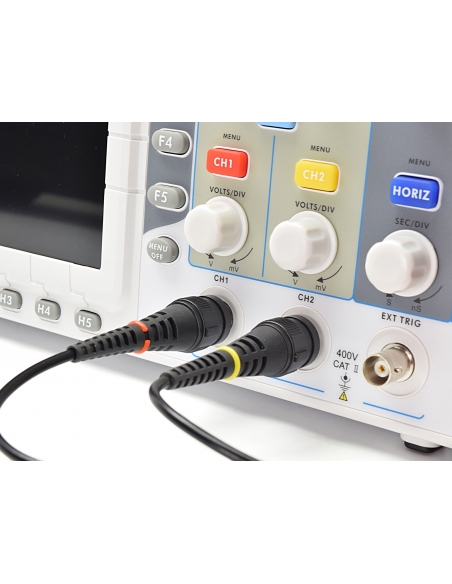

• Included Accessories: Passive Probe (x2), Power Cable, USB Cable, Quick Guide

Calibration certificate not included in the supply. It must be requested before placing the order.
