MCB circuit breaker 3 poles 32A (3x32A) Curve D...
MCB circuit breaker 3 poles 32A (3x32A) Curve D...
MCB circuit breaker 3 poles 32A (3x32A) Curve D -  LS
MCB circuit breaker 3 poles 32A (3x32A) Curve D -  LS

MCB circuit breaker 3 poles 32A (3x32A) Curve D - LS

€75.55 Tax included

€62.44 tax excl.

MCB circuit breaker 3 poles 32A curveD,for protection against short circuits and overloads, in installations with the presence of motors or machinery with high initial current, preventing it from firing during start-up. With an breaking capacity of 6000A.

Reference: BKJ63N 3P D32A

Diagrama magnetotérmico 3 polos

Logotipo LS

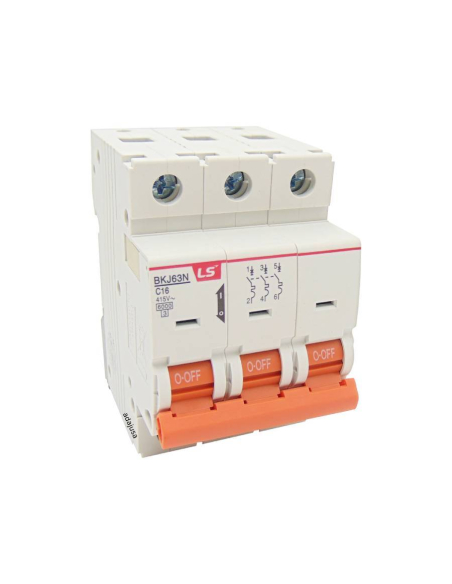

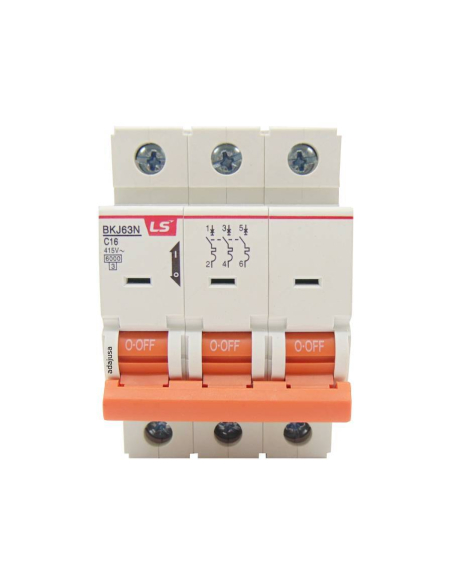

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


MCB circuit breaker 3 poles 32A curveD, for protection against short circuits and overloads in installations with the presence of motors or machinery with high initial current. This type of D-curved MCB circuit breaker prevents it from firing during start-up. Protects both drivers. Suitable for use in both single and biphasic installations. High cutting power assigned, 6000A according to IEC 60898-1.

High reliability and performance, allowing a high number of duty cycles.

Main features of MCB circuit breaker:

  • Manufacturer/Supplier: LS (LG Industrial Systems)
  • Reference: BKJ63N 3P D32A
  • Nominal MCB circuit breaker intensity: 32A
  • Number of poles: 3 (3x32A).
  • Use of MCB circuit breaker: domestic, tertiary and industrial sector
  • MCB circuit breaker cutting power: 6000A
  • Operating voltage: 230/400Vac 50/60Hz
  • Shooting curve: D
  • Mechanical life: >6000 operations
  • Regulations: IEC60898-1
  • Marking: CE
  • Allows the use of Pin-type connection combs
  • Connection capacity: 25mm2 cable
  • Width: 3 modules (3x17.8mm)

Material for professional use, install in compliance with the regulations in force at the installation site.
