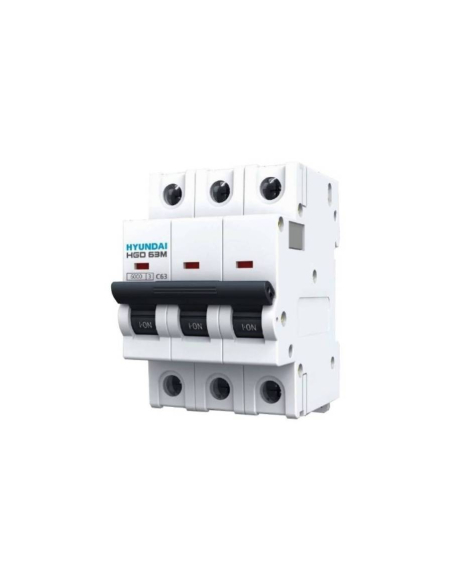

MCB circuit breaker 3 poles 16A (3x16A) curve D...
MCB circuit breaker 3 poles 16A (3x16A) curve D - Hyundai Electric

MCB circuit breaker 3 poles 16A (3x16A) curve D - Hyundai Electric

€23.38 Tax included

€19.32 tax excl.

3-pole 16A D curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations with the presence of motors or machinery with high initial current, preventing tripping during start-up. Active protection of the poles with individual status indication. Rated Breaking capacity 6kA.

It can be used in installations and assemblies up to 500Vac.

Reference: HGD63-M3P016D

2-pole margnetothermal electrical diagram



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3-pole 16A 6kA "D" curve MCB circuit breaker , for protection against short-circuits and overloads in three-phase installations with the presence of motors or machinery with high initial current, preventing it from tripping during start-up. Active protection of the poles with status indication. Manufactured in fireproof thermoplastic material according to reference regulations IEC/EN 60898-1; 60947-2.

High reliability and performance, allowing a high number of work cycles.

Main features of this range of products:

  • Compact design and structure.
  • Trip-free mechanism. The circuit breaker trips even if forced to stay in the ON position.
  • Visual status indication.
  • Supports accessory mounting.




Technical characteristics:

  • Manufacturer/Supplier: Hyundai Electric
  • Manufacturer reference: HGD63-M3P016D
  • Nominal intensity (In): 16A
  • Number of poles: 3
  • Characteristic curve: D
  • Maximum operating voltage (Ue): 415Vac, 50/60Hz
  • Breaking capacity (Icn): 6kA (Ics=100% Icn)
  • Rated insulation voltage (Ui): 500Vac
  • Rated impulse withstand voltage (Uimp): 4kV
  • Dielectric strength: 2.5kV
  • Electrical / Mechanical endurance: 10000 / 20000 maneuvers
  • Operating temperature: -40C...+55C
  • Humidity: 95% RH
  • Power limitation class: Class 3
  • Terminal Type: Screw Clamping Clamp
  • Terminal size: 25mm²
  • Maximum tightening torque: 2 Nm
  • Protection class: IP20
  • Weight: 0.345kg
  • Mounting position: Vertical/Horizontal
  • Housing material : Flame retardant molded thermoplastic
  • Supports mounting of auxiliary elements: Yes
  • Regulations: CE; IEC/EN 60898-1; 60947-2



HCG63N magnetothermic dimensions





Professional use material, install in compliance with the regulations in force at the installation site.
