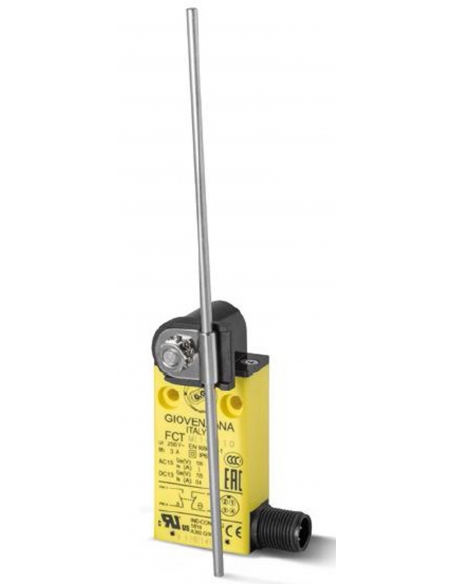

limit switch, FCT series, lever driven with adjustable metal rod. The FCT series of position switches, is made of thermoplastic material, with side M12 connector output. Designed for industrial applications of automation, elevators and lifting, and general use. The installation is very simple, ensuring extreme ease of assembly.
Electrical connection by means of M12 connector located on the side.
High degree of protection, IP67, designed to be used even in the most rigid environmental situations, these end of the race has passed the IP67 immersion test, in accordance with the EN60529 standard.
Specifications:
- Manufacturer: Giovenzana.
- Series: FCT2L10.
- Number of contacts: 2.
- Contact with positive opening: Contact NC.
- Employment category: AC15/600.
- Nominal thermal current (Ith): 10A.
- Nominal insulation voltage: 500Vac.
- Minimum permissible current: 5mA at 5Vdc.
- Insulation resistance: 100MΩ min. (DC500V).
- Contact resistance: 25mΩ max. (Initial).
- Drive path for positive opening: Miscellaneous.
- Maximum switching frequency: 2 cycles/sec.
- Housing Material: Polybutene terephthalate with UL approved glass fibers.
- Actuator material: Miscellaneous.
- Working temperature: -25ºC.. 70ºC.
- Mechanical durability: 10,000,000 min cycles.
- Electrical durability: 150,000 cycles min.
- Fixation: 2xM4.
- Output: Side M12 connector.
- Standards: EN60947-5-1, UL508, EN5004-7, EN1088
- Degree of protection: IP-67.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
