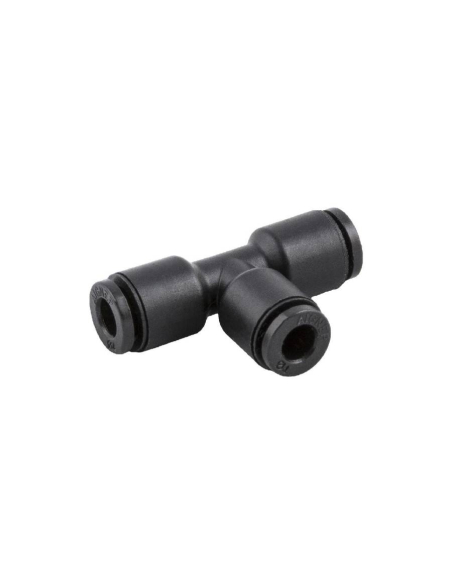

Intermediate T-fitting for 3mm diameter tube , made of technopolymer, nickel-plated brass thread and NBR seal, lightweight and compact. Its miniature design is ideal for applications where space is limited and a quick and secure connection is required.
Series of Push-In fittings suitable for compressed air systems, pneumatic automation, automotive, robotics, textile industry, packaging, handling, vacuum and industrial water.
The 56000 mini fitting series offers diameters of 2,3,4,6 mm and metric sizes M3, M5, M7, 1/8 and 1/4.
Advantages of the 56000 mini series
- The stainless steel clamp guarantees a perfect grip on the tube of any material without damaging the surface. The connection between the tube and the fitting ensures total tightness even under conditions of impact or vibration.
- The particular geometry of the seal guarantees perfect sealing even under vacuum.
- All threads in this series are manufactured with a sealing gasket that allows immediate use of the fitting, significantly reducing installation time.
- All straight fittings can also be mounted using a hex key and can even be used in very confined spaces.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 56230 3
- Tube outer diameter: 3mm
- Fluid: vacuum, compressed air and water
- Material: technopolymer
- Tube extractor ring: acetal resin
- Clamping spring: stainless steel
- Pressure: -0.99 bar to 20 bar
- Working temperature: -20ºC to +80ºC
- Thread regulations:
- Conical gas according to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- Metric according to ISO R/262
Professional use material, install in compliance with the regulations in force at the installation site.
