Central threaded swivel tee fitting 1/2 pipe 12...

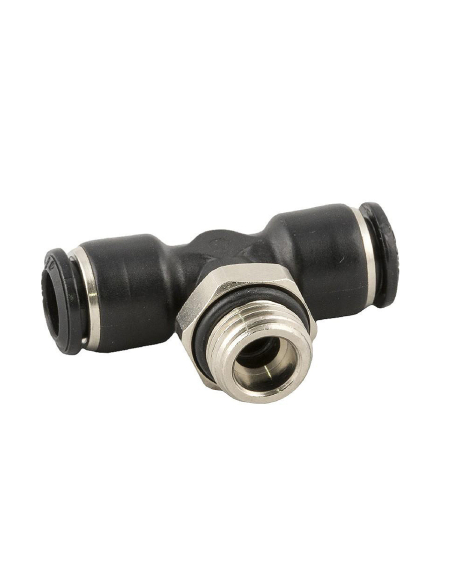

Central threaded swivel tee fitting 1/2 pipe 12 Series 55000 - Aignep

Central threaded swivel tee fitting 1/2 pipe 12 Series 55000 - Aignep

€5.45 Tax included

€4.50 tax excl.

Adjustable "T" fitting for 12mm outer Ø pipe. With quick connection and central socket with cylindrical thread 1/2 with gasket, made of technopolymer and chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55216 12 1/2




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Adjustable "T" fitting for 12mm outer Ø pipe. With quick connection, and central socket with 1/2 cylindrical thread with gasket, made of technopolymer and chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55216 12 1/2
  • Thread: 1/2
  • Outer tube Ø: 12mm
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262


55216Esp
55216Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

6mm pipe intermediate tee...
Intermediate "T" fittings

6mm pipe intermediate tee fitting 6mm instantaneous 55000 series - Aignep

Aignep
552306
€2.21 (€1.83 tax excl.)
Automatic "T" fitting for 6mm diameter pipe. Quick connection, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55230 6 Representative image for illustrative purposes, the item supplied will correspond to the...
Central threaded swivel tee...
Intermediate "T" fittings

Central threaded swivel tee fitting 3/8 pipe 12 Series 55000 - Aignep

Aignep
552161238
€4.86 (€4.02 tax excl.)
Adjustable "T" fitting for 12mm outer Ø pipe. With quick connection, and central socket with 3/8 cylindrical thread with gasket, made of technopolymer and chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55216 12...
Swivel tee fitting with...
Intermediate "T" fittings

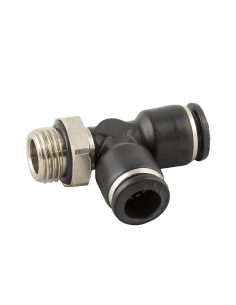

Swivel tee fitting with side thread 1/2 pipe 14 Series 55000 - Aignep
