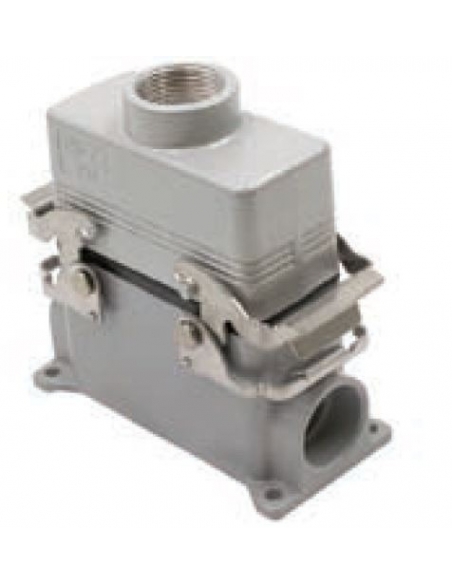

Full wall multipolar connector 16 poles and ground vertical output PG21

€82.41 Tax included

€68.11 tax excl.

16-pole multipole connectors + grounding, complete with vertical PG21 output, wall mounting. They can be used in non-aggressive industrial environments and wherever there is a need for high quality connection.

Part number: CNZ16PV

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Complete multipolar connectors, for wall mounting, 16 poles and grounding. Vertical cable output with PG21 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer/Supplier: ILME
  • Reference: CNZ16PV
  • Series: CNZ, full connector 16A max - 500Vac.
  • Number of poles: 16+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: PG21.
  • Situation: Vertical.
  • Weight:
  • Regulations: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar
