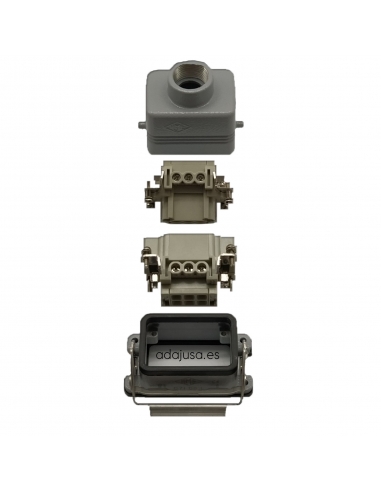

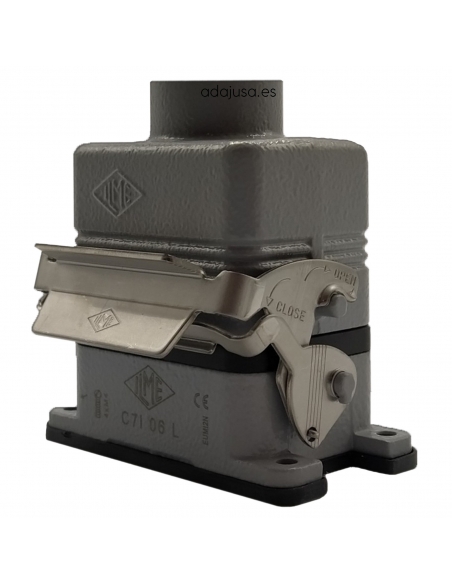

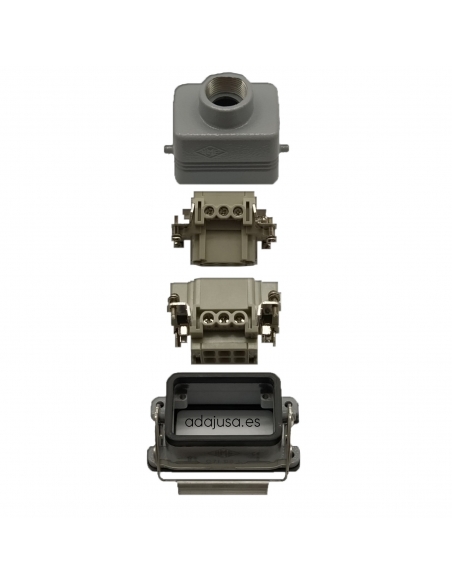

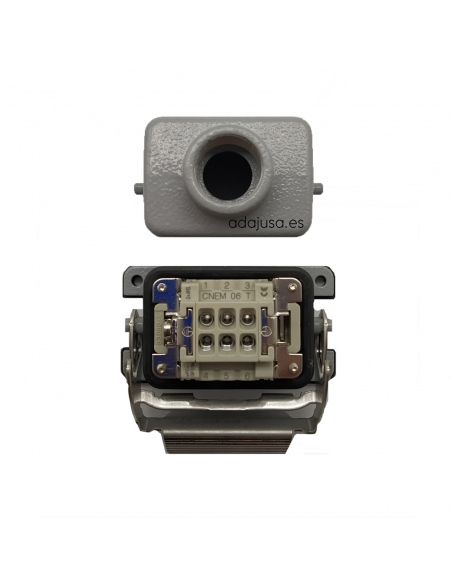

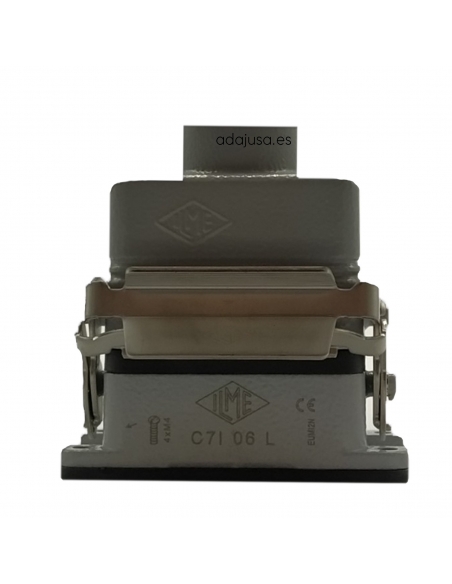

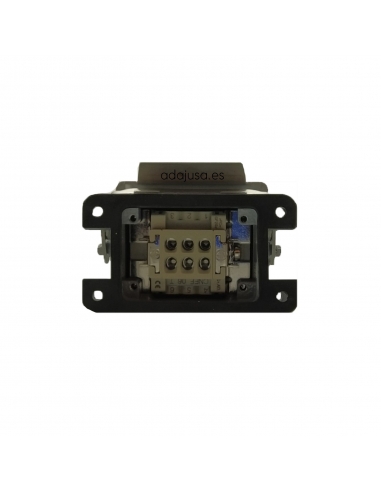

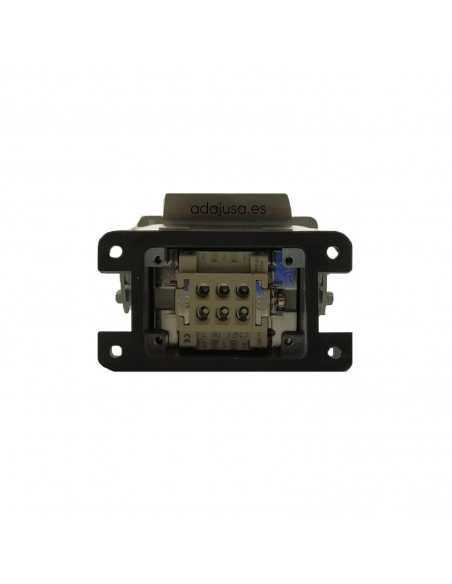

Full multipolar connector 6 poles and recessed ground vertical output Pg16

Full multipolar connector 6 poles and recessed ground vertical output Pg16

Name: Full multipolar connector 6 poles and recessed ground vertical output Pg16
Brand: ILME
SKU: 992CNLZ06IV
Price: 56.1319 EUR
Availability: PreOrder

€56.13 Tax included

€46.39 tax excl.

6-pole multipole connectors + grounding, complete with Pg16 vertical output, flush panel mounting. They can be used in non-aggressive industrial environments and wherever there is a need for high quality connection.

Part number: CNLZ06IV

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Complete multipole connectors, for panel mounting, 6-pole and grounding. Vertical cable outlet with Pg16 thread.

This series of multipole connectors can be used in non-aggressive industrial environments and wherever there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with tin-plated zinc contacts. The assembly is coupled by means of thermoplastic and galvanized steel cams for the enclosures.

Technical characteristics:

Manufacturer/Supplier: ILME
Part number: CNLZ06IV
Series: CNZ, complete connector 16A max - 500Vac.
number of poles: 6+Earth.
Maximum current: 16A.
Maximum voltage: 500V.
Conductor cross-section: 0.50 mm2 - 2.50 mm2.
Degree of protection: IP66.
Cable entry: Pg16.
Location: Vertical.
Weight: 0,304Kg.
Standard: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar

Material for professional use, install in compliance with current regulations at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

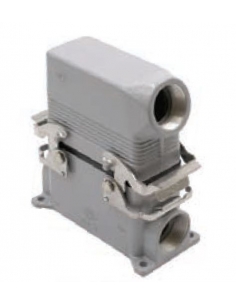

Full wall multipolar connector 6 poles and ground side outlet Pg16

Industrial multipolar connectors

Full wall multipolar connector 6 poles and ground side outlet M20/25

ILME

992MNLZ06PO

€60.00 (€49.59 tax excl.)

6-pole multipolar connectors + grounding, complete with M20/25 side output, wall mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. Reference: MNLZ06PO

Full multipolar connector 6 poles and recessed ground side output Pg16

Full multipolar connector 6 poles and recessed ground side output Pg16 2

Industrial multipolar connectors

Complete multipolar connector 24 poles and recessed ground M32 side output

ILME

992MNZ24IO

€92.49 (€76.44 tax excl.)

24-pole multipolar connectors + grounding, complete with M32 side output, recessed panel mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. Reference: MNZ24IO

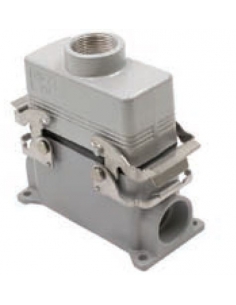

Full wall multipolar connector 6 poles and ground vertical output Pg16

Industrial multipolar connectors

Full wall multipolar connector 16 poles and ground vertical output PG21

ILME

992CNZ16PV

€89.37 (€73.86 tax excl.)

16-pole multipole connectors + grounding, complete with vertical PG21 output, wall mounting. They can be used in non-aggressive industrial environments and wherever there is a need for high quality connection. Part number: CNZ16PV Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Industrial multipolar connectors

Full recessed multipolar connector 32 poles and ground vertical output PG36

ILME

992CNZ32IV

€184.44 (€152.43 tax excl.)

36-pole multipolar connectors + grounding, complete with PG36 vertical output, recessed mounting. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. Reference: CNZ32IV

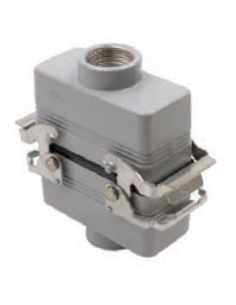

Full 6-pole multipolar extension connector and Pg16 ground
