€14.81 Tax included

€12.24 tax excl.

Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation, or general uses, 3 poles with a current capacity of 9A in AC3 or 25A in AC1, with 400Vac coil, Equipped with an open auxiliary contact (NA) and another closed (NC).

Reference: HGC9-11NSX400

Esquema electrico contactor

hyundai electric logo

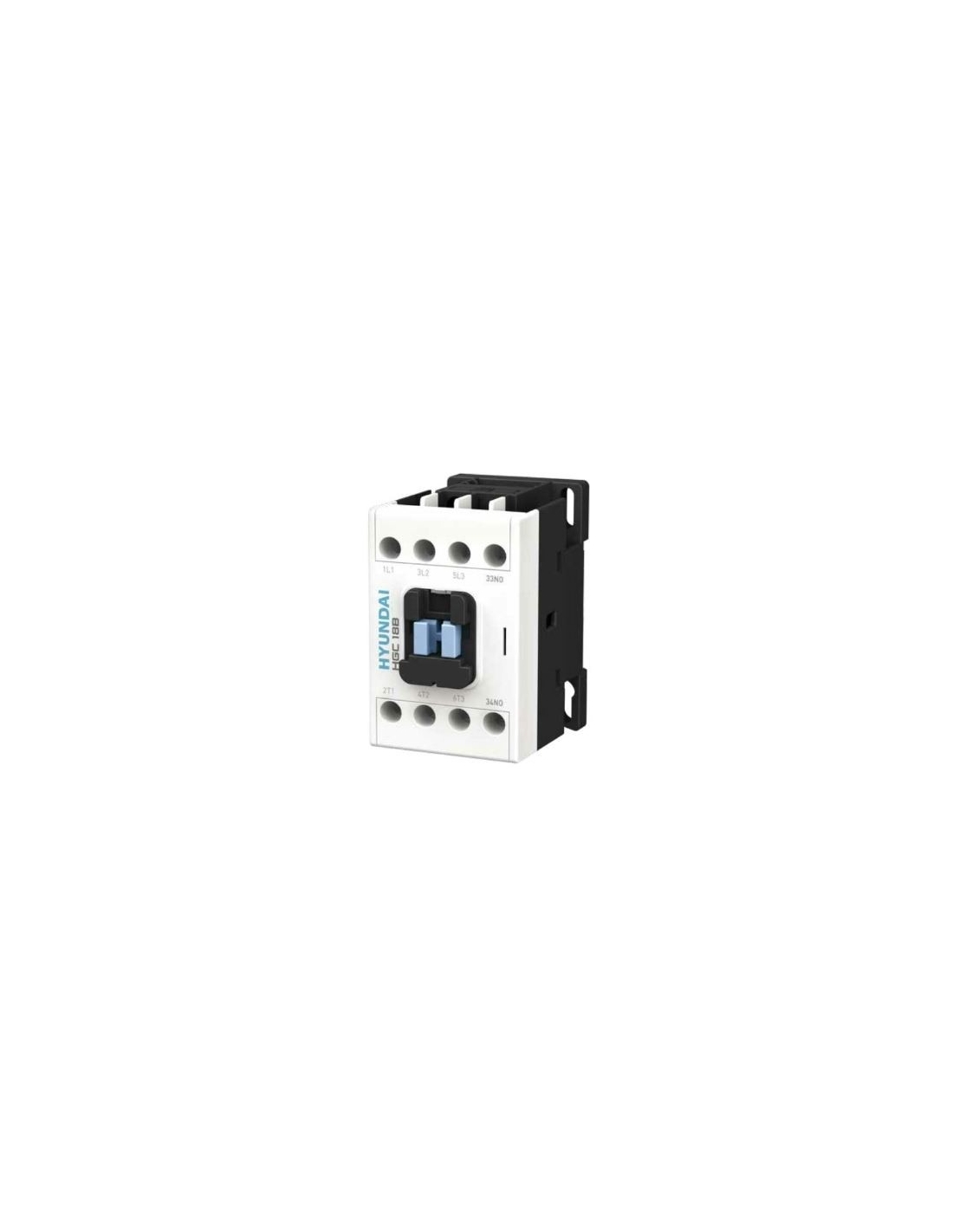

Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

No queries yet, leave the first!


9A three-phase contactor (3 poles) in AC3 category or 25A in AC1 category, the contactor is equipped with high robustness main contacts, suitable for demanding applications for electric motor control, heating, lighting, ventilation and general use systems. The contactor is equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC), located on the side of the contactor. The contactor can be fastened by screws or by DIN rail.

Technical details:

  • Manufacturer/Supplier: Hyundai Electric
  • Contactor Reference: HGC9-11NSX400
  • Assigned frequency: 50Hz
  • Maximum operating voltage: 1000Vac.
  • Coil voltage: 400Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 9A.
  • Current assigned for contactor in AC1 (Ith): 25A.
  • Maximum power (kW) 380-400Vac: 4kW.
  • Maximum power (kW) 220-230Vac: 2.5kW.
  • Auxiliary contacts: 2 sides (1 open and 1 closed)

To expand the information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
