Mini connector 9A coil 24Vac open auxiliary contact NA - LS

€16.31 Tax included

€13.48 tax excl.

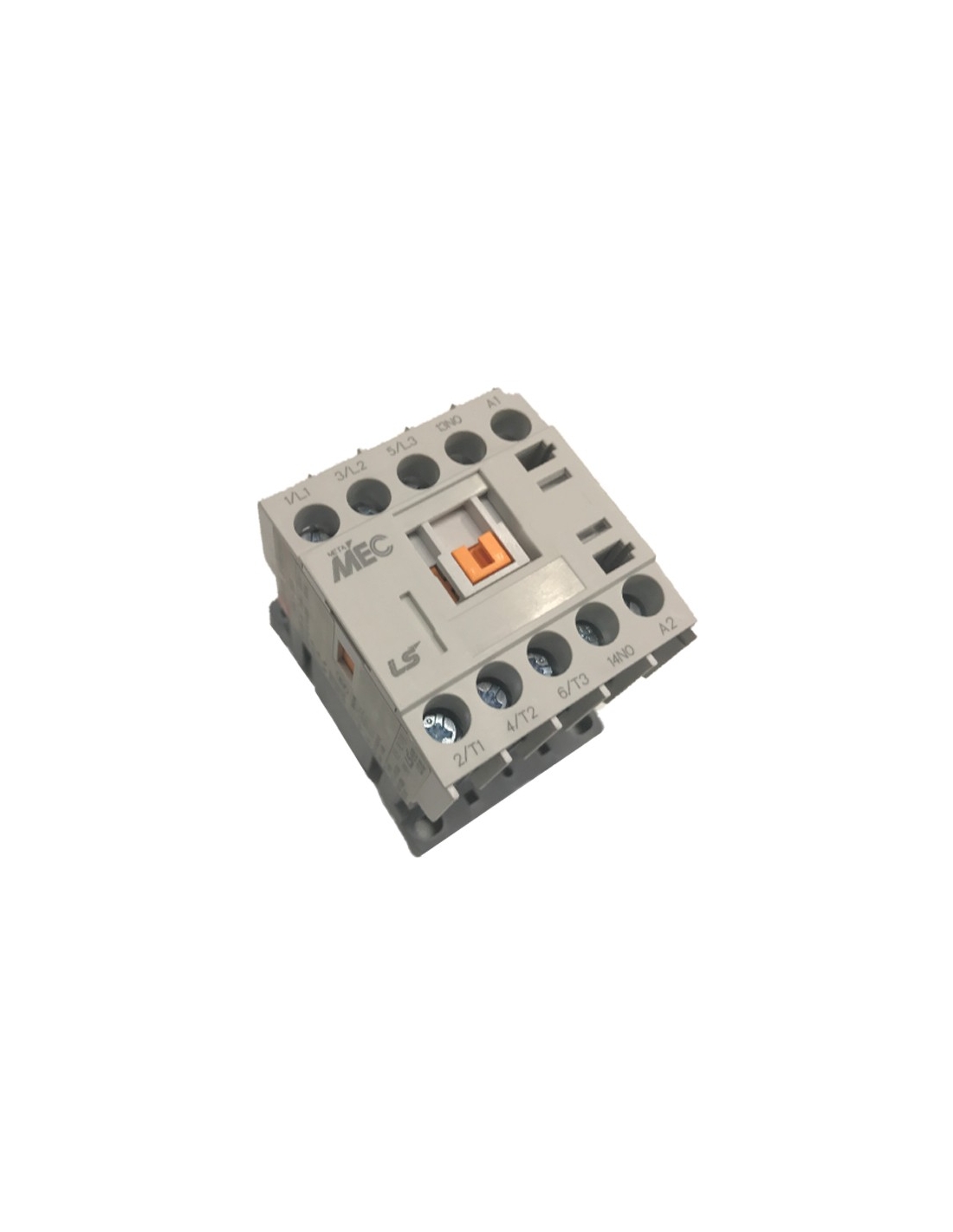

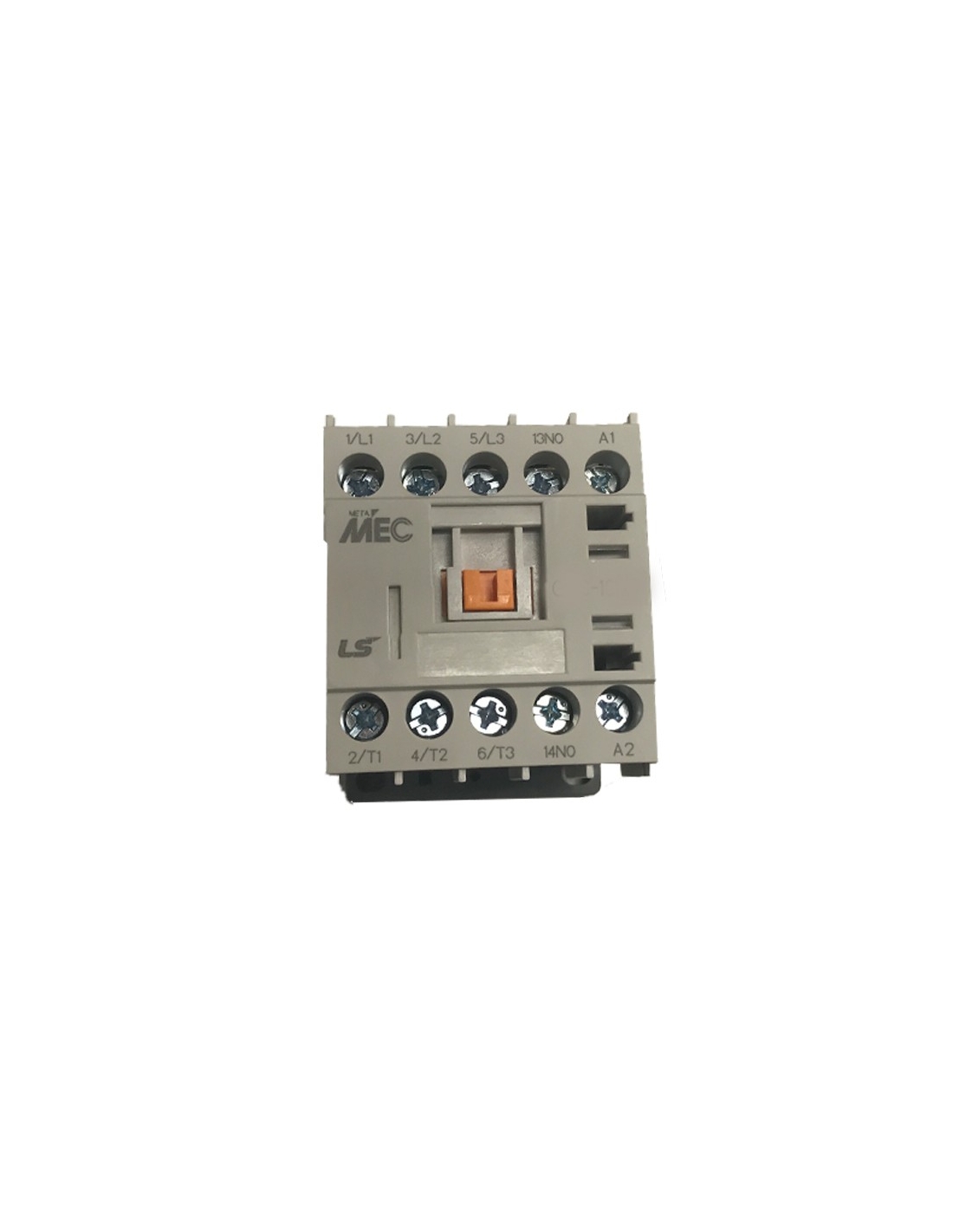

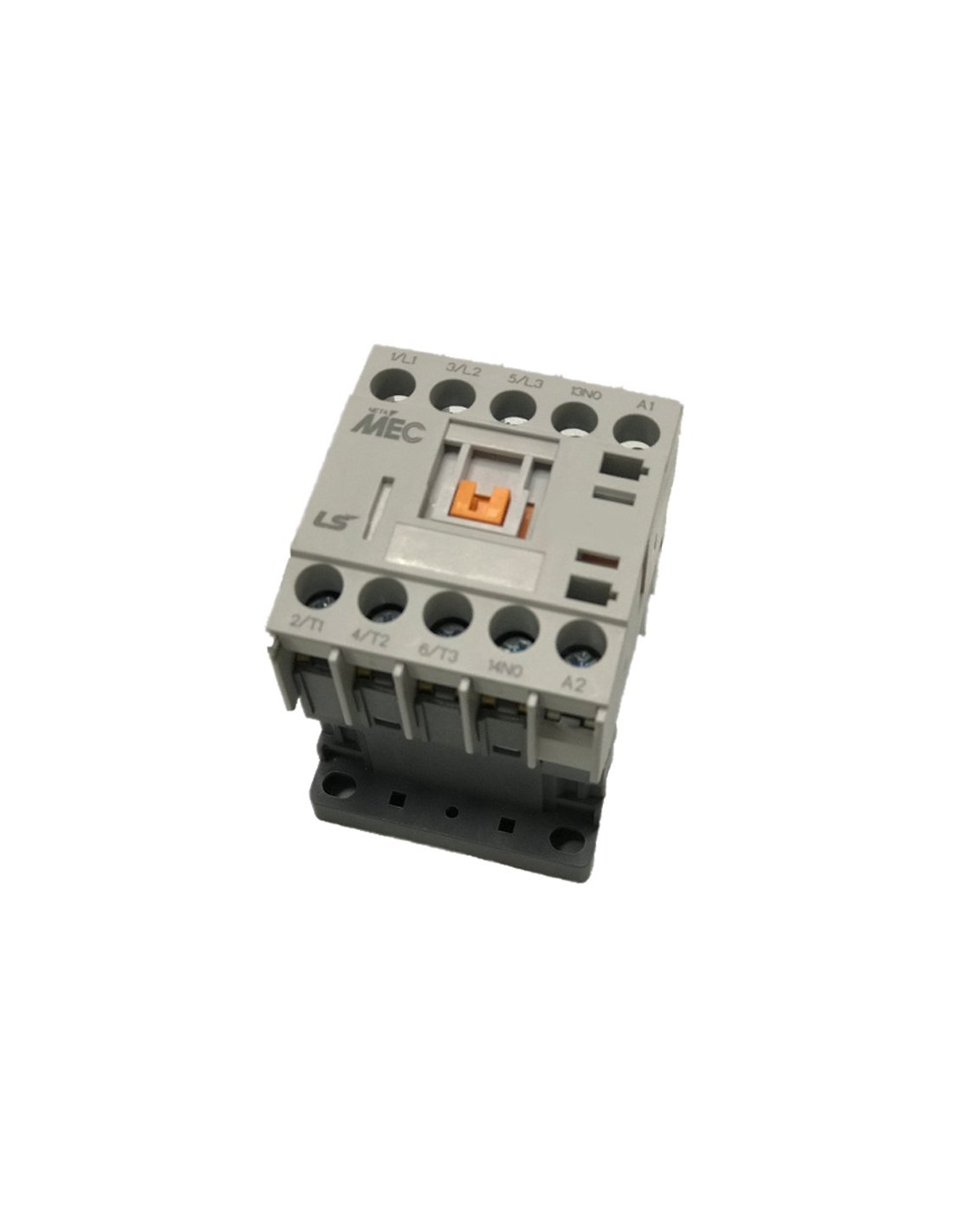

Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 9A AC3 category or 20A category AC1, with 24Vac coil, the contactor is equipped with an open auxiliary contact (NA).

Ref: GMC-9M-10-AC24V

Esquema eléctrico contactor 3P auxiliar NA

Logotipo LS LG industrial Systems

No queries yet, leave the first!


9A three-phase (3-pole) mini-connectorin AC3 category or 20A in AC1 category, the contactor coil voltage is 24 Vac, with an open auxiliary contact NA. Fixing the contactor by screws or DIN rail. Designed mainly for electric motor control, heating, lighting, ventilation, and general uses.

General features of the mini-ctor:

  • Manufacturer: LS.
  • Ref: GMC-9M-10-AC24V
  • Number of poles: 3.
  • Assigned current in AC3: 9A.
  • Maximum thermal current Ith: 20A.
  • Maximum voltage: 660Vac.
  • Maximum power: 3-AC3 230V: 2.2 Kw.
  • Maximum power: 3-AC3 400V: 4 Kw.
  • Control voltage (coil): 24Vac 50/60Hz.
  • Auxiliary contact integrated into the mini-connector: 1 open contact (NA).

Dimensiones contactor LS Electric vista frontal

Minicontactor LS Electric Vista lateral y posterior
