5x1.5mm black PVC hose
5x1.5mm black PVC hose

Hose 5x1.5mm black PVC

Special material, PayPal payment not accepted
€2.52 Tax included

€2.08 tax excl.

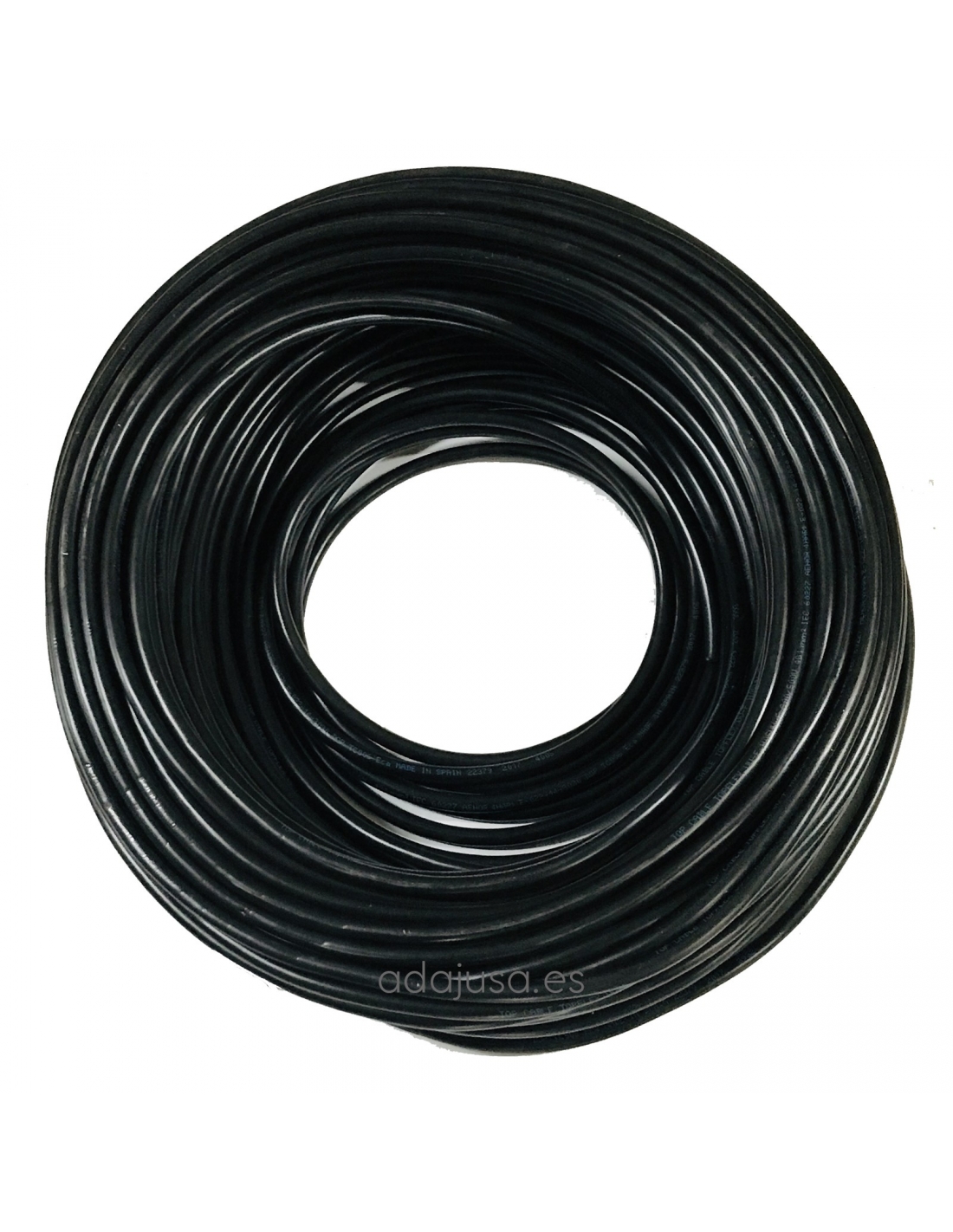

5x1.5mm2 section electric hose, flexible black PVC cover, for domestic and industrial power applications. Designed under CPR regulations (EN 50575)

Series: PowerFlex RV-K 0.6/1kV.

Color: Black.

Section: 1.5mm2.

Price per meter
Material cut to size, no return or cancellation of the order is allowed



logotipo_top_cable

No queries yet, leave the first!
Privacy
Shipments
Returns


Flexible hose with 5 conductors 1.5mm² section each, black PVC insulator. The TopFlex VV-F H05VVF multiconductor cable has been specially designed to connect small appliances and machinery, it is recommended for indoor use and can also be used for light mobile service.

Conductor colors:

  • Blue.
  • Brown.
  • Gray.
  • Brown.
  • Yellow green.

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed

Technical characteristics:

  • Manufacturer: Top Cable .
  • Series: TopFlex VV-F H05VV-F.
  • Conductor: class 5 electrolytic copper (flexible) according to UNE-UN 60228.
  • Insulation: flexible black PVC.
  • Nominal section per conductor: 1.5mm².
  • Nominal voltage: 0.6 / 1kV.
  • Thermal characteristics:
    • Temp. conductor maximum: 90ºC.
    • Temp. maximum in short circuit: 250ºC (maximum 5 s).
    • Temp. minimum service: -40ºC (static with protection).
  • Characteristics against fire:
    • Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
    • Fire relationship CPR: E according to EN 50575.
  • Outside diameter: 10.4mm.
  • Impact resistance: AG2 Medium.
  • Bend radius: 5 x outer diameter.
  • Resistant to chemical attack: Good
  • Resistance to ultraviolet rays: UNE 211605.
  • Presence of water: AD7 immersion.
  • Installation conditions:
    • In the air.
    • Buried.
    • Tubed.
  • Design: According to CPR standard (EN 50575).
    Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
    ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Industrial use.
    • Exterior lighting.
  • Packaging: 100m roll. with shrink film.
  • Weight: 15.3 kg.
