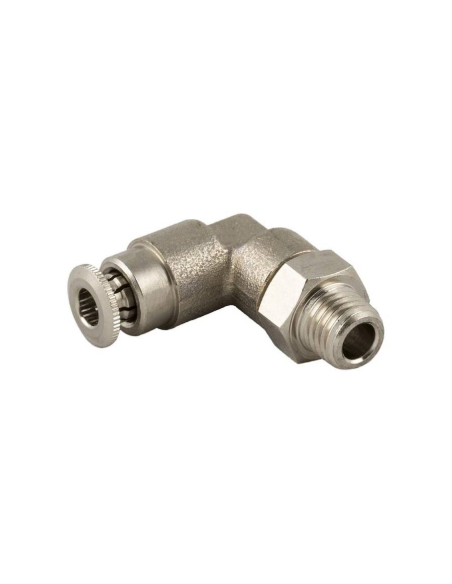

M6X1 metric conical male adjustable elbow fitting for 4mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to mobile centralized lubrication and greasing or in industrial machinery. They are suitable in high temperature and pressure environments of up to 150 bar with fluids.
The “high pressure” series with specific threads for lubrication and greasing systems is applicable in the heavy industry sector, railway sector, vehicles (truck, bus, agricultural, etc.), offering tightness reliability and quick installation.
Main advantages of the 58000 High Pressure series:
- Instant connection and disconnection
- full step
- Typical lubrication threads
- High resistance and robustness
- High temperature and pressure ranges
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 58111 4 M6X1
- Metric: M6X1
- Tube outer diameter: 4mm
- Fluid: Oil, grease, water and compressed air
- Material: Nickel-plated brass
- Temperature: - 30C to +150C
- Minimum pressure: 0 bar
- Maximum pressure with fluids: 150 bar
- Maximum pressure with air: 30 bar (*)
- Connection tubes:
- PA6, PA66 for High Pressure
- (*) PA6, PA66, PA11, PA12, Polyethylene
- (**) Polyurethane , PEF, PTFE.
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Conical metric according to UNI 7707
(**) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.
For more information you can download the technical sheet by clicking on the "Attachments" tab .
Material for professional use, install in compliance with the regulations in force at the installation site.
