Purifying filter 1/2 RMSA New Deal - Metal Work - ADAJUSA

Purge filter 1/2 semi-automatic TMV New Deal - Metal Work

Name: Purge filter 1/2 semi-automatic TMV New Deal - Metal Work
Brand: Metal Work
SKU: 1422002
Price: 155.1462 EUR
Availability: PreOrder

€155.15 Tax included

€128.22 tax excl.

1/2 RMSA Purifying Filter to separate solid or liquid particles dispersed in compressed air with a high degree of efficiency .

Series: New Deal
Reference: 1422002

metal work logo

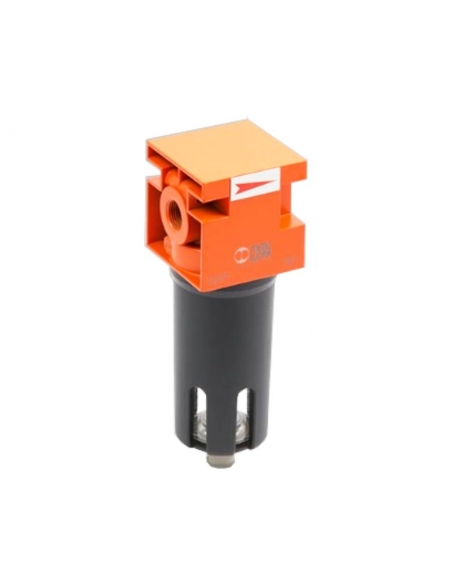

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

The job of the anti-oil scrubber filter is to separate solid or liquid particles dispersed in the air.
This separation is achieved thanks to the special filter element called "coalescing cartridge".

Product made of technopolymer specially indicated to eliminate traces of oil present in compressed air. In the front and rear there is a port that can be used as a pressure gauge, pressure switch or as an additional filter for the inlet air.

Characteristics:

Manufacturer: Metalwork
Manufacturer reference: 1422002
Threaded drive: 1/2"
Purification degree: 99.97% at 0.01 µm
Maximum inlet pressure (bar/Mpa/psi): 18 / 1.8 / 261
Recommended flow rate at 6 bar ( Nl/min): 230
Min/max temperature at 10 bar; 1MPa; 145psi: -10º to +50ºC
Weight: 0.9kg
Condensation discharge type: RMSA (manual condensate drain and automatic discharge when pressure is removed)
Fluid type: Filtered air 4 µm
Bowl capacity: 45cm³
Mounting position: Upright
Wall fixing screws: M4x55

Dimensions:

New deal purifier dimensions

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
