End of stroke adjustable vertical lever roller steel Series VP

€9.26 Tax included

€7.65 tax excl.

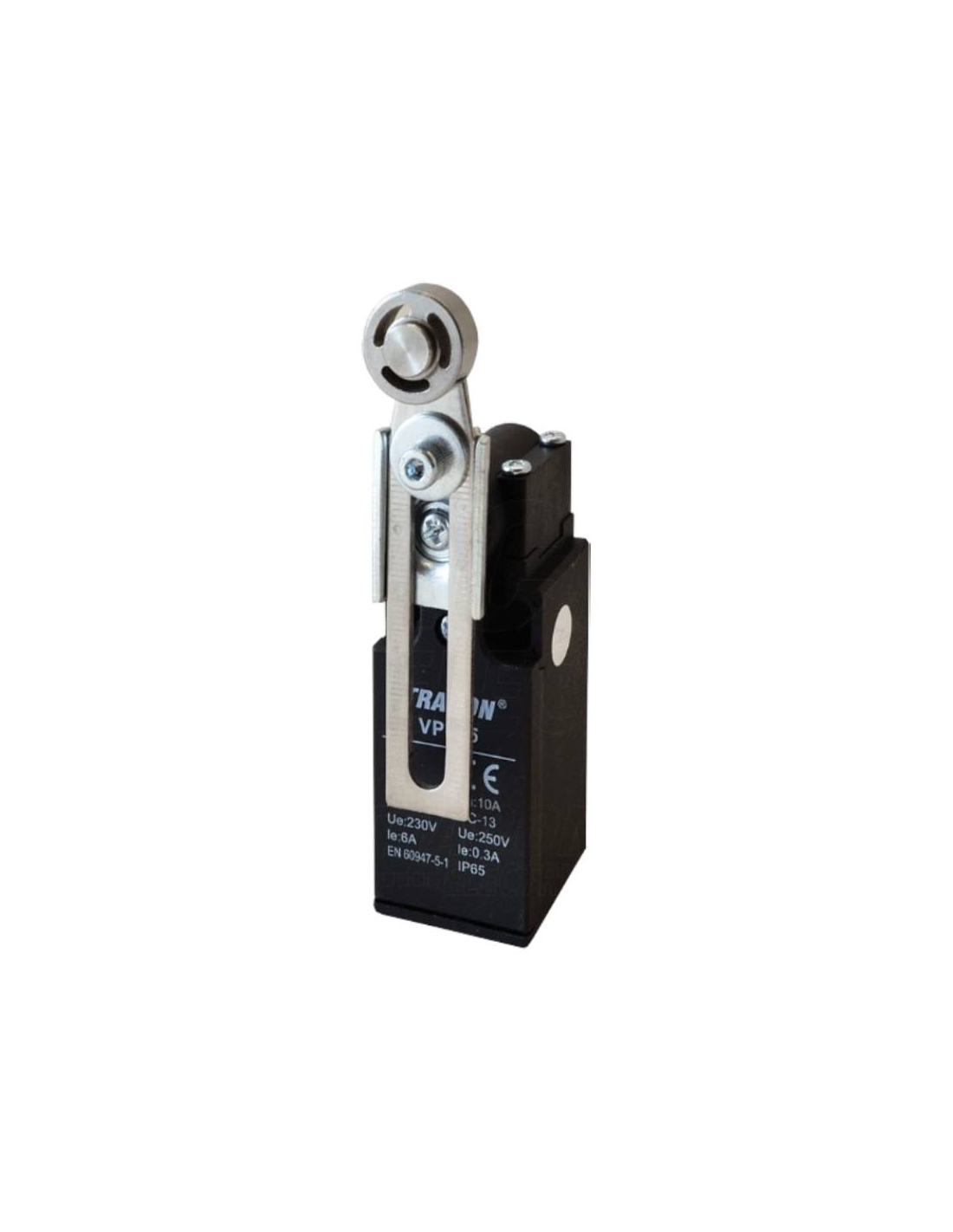

Electric limit switch, 1NO+1NC contacts, adjustable vertical lever drive with Ø18mm steel pulley. Made of highly impact resistant thermoplastic resin.


Part number: VP145



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch electric, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switchincorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The limit switchis operated by means of a metallic steel roller, adjustable in height, which can be operated in both directions. Sheave diameter 18mm.



Operating travel (mm)


Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VP145
  • Actuator type: metal pulley push button Ø18
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal intensity (Ith): 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, metal actuator head
  • Inlet thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1



Dimensions:








Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used safety or hazardous applications.
