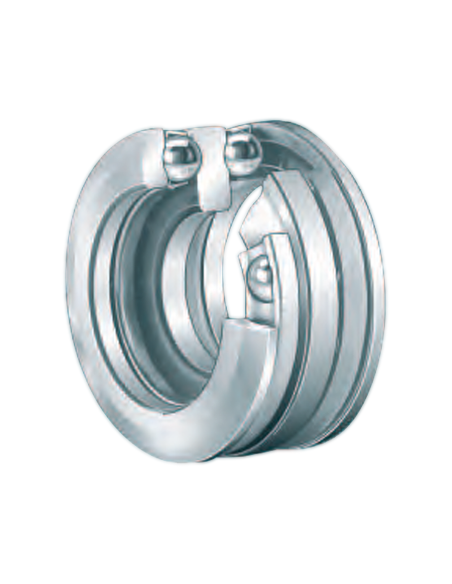

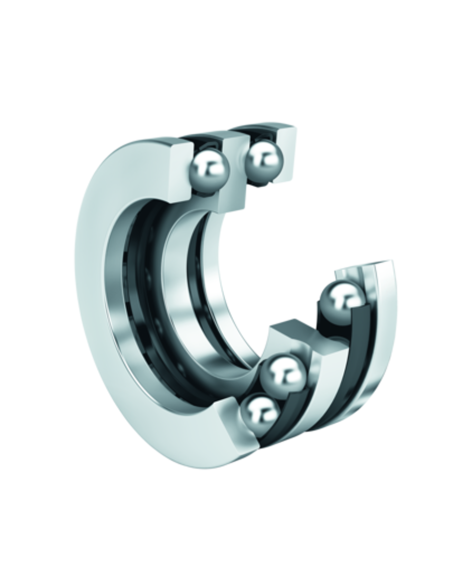

Double direction thrust ball bearing with spherical housing rings 54309, dimensions 35x85x56.2mm, inner diameter 35mm, outer diameter 85mm, width 56.2mm. These bearings consist of shaft rings, spherical housing rings and ball cage assembly. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately. They are particularly suitable for supporting axial loads in both directions. Thrust ball bearings with spherical housing rings compensate for static shaft alignment errors.
The main dimensions for double direction thrust bearings correspond to DIN 715. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.
Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.
Characteristics:
- Manufacturer/Distributor: FAG
- Reference: 54309 FAG
- Material: Steel
- Dynamic load capacity, axial (Cr) : 75000N
- Static load capacity, axial (Cor) : 140000N
- Fatigue load limit, axial (Cur) : 6300N
- Limiting rotation speed (nG): 3600 1/min
- Weight: 2.15 Kg
Dimensions:- Hole diameter (d): 35mm
- Outer diameter (D): 85mm
- Width (T2): 56.2mm
- Housing ring hole diameter (D1): 47mm
- Shaft ring width (B): 12mm
- Minimum chamfer dimensions (r1): 0.6mm
- Radius of spherical housing ring (R): 64mm
- Center point distance (A): 21mm
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
