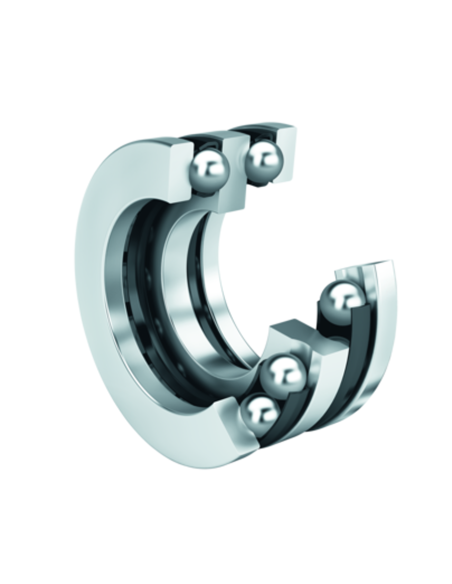

Double direction thrust ball bearing with flat housing rings 52204 , dimensions 15x40x26mm, inner diameter 15mm, outer diameter 40mm, width 26mm. These bearings consist of shaft rings, housing rings and ball cage. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in both directions. Thrust ball bearings in the 522 and 523 series have two flat housing rings and have no alignment adjustment.
The main dimensions for double direction thrust bearings correspond to DIN 715. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.
Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.
Characteristics:
- Manufacturer/Distributor: FAG
- Reference: 52204 FAG
- Material: Steel
- Dynamic load capacity, axial (Cr) : 22400N
- Static load capacity, axial (Cor) : 37500N
- Fatigue load limit, axial (Cur) : 1660N
- Limiting rotation speed (nG): 7500 1/min
- Weight: 0.145 Kg
Dimensions:
- Hole diameter (d): 15mm
- Outer diameter (D): 40mm
- Height (T2): 26mm
- Housing ring hole diameter (D1): 22mm
- Shaft ring height (B): 6mm
- Minimum chamfer dimensions (r): 0.6mm
- Minimum chamfer dimensions (r1): 0.3mm
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
