Disconnector switch 4-pole 25a SE 48x48mm red...

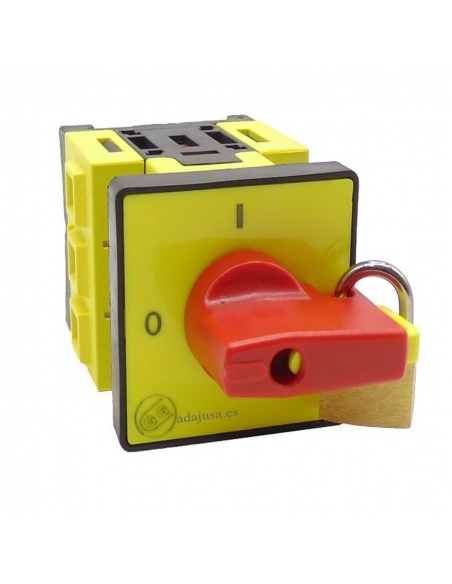

Disconnector switch 4-pole 25a SE 48x48mm red lever with lock SE series- Giovenzana

Disconnector switch 4-pole 25a SE 48x48mm red lever with lock SE series- Giovenzana

€18.97 Tax included

€15.68 tax excl.

4-pole disconnector switch (four-poles) 25a. ,rotary knob 90º 0-1. front yellow and lever in red, possibility of locking in tight, made according to the strictest European standards, which allow, to meet the safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. Suitable up to 11kw. 400Vac.

Reference: GISE160348RB
esquema electrico interruptor 4 polos
Giovenzana
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.



4-pole disconnector switch (four-poles) 25a for inductive loads (electric motors) and general control. Rotary control 90º with two positions 0-1, front plate in yellow and lever in red, possibility of locking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

This three-phase switch is suitable for machinery, motors and installations up to 7.5kw connected to 230Vac or 11kw connected to 400Vac.

Supply includes:

  • 4-pole switch: SE163004R
  • Front plate: 004/0001
Supply does not include padlock.

characteristics:

  • Brand: Giovenzana
  • Switch reference: SE163004R
  • Front plate reference: 004/0001
  • number of poles: 4.
  • Rated voltage Ue: 690V.
  • Thermal nomitanl current ith: 32A.
  • Nominal current Ie (AC21A): 16a.
  • Nominal current Ie (AC22A): 25a.
  • Nominal current Ie (AC23A):25a.
  • Nominal current Ie (AC3):25a.
  • Nominal interrupt capacity: 10kA.
  • Contacts: Slow opening of double interruption.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuvering angle: 90º.
  • Built-in mounting.
  • Degree of protection:
    • Type 1-4-4X controls: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A usage category: 32A.
  • AC-22A Usage Category: 25a.
  • AC-23A Usage Category:
    • 230Vac three-phase standard motors: 25a - 7.5kW.
    • Standard 400Vac three-phase motors: 25a - 11kW.
  • AC-3 Usage Category:
    • Standard three-phase motors 230Vac: 22A - 7.5kW.
    • Standard three-phase motors 400VAc: 22A - 11kW.

    dimensions:

    Dimensiones interruptor SE1632

    assembly:

    Monaje interruptores serie SE

    As additional elements we can add the following references:

    • Auxiliary contact closed: GIPL004001
    • Auxiliary contact open: GIPL004002
    • Auxiliary contact fixing plate: GI1184021
