Tensioning wheel for chain diameter 30mm 15 teeth 16B ISO St 52 - INA

€84.30 Tax included

€69.67 tax excl.

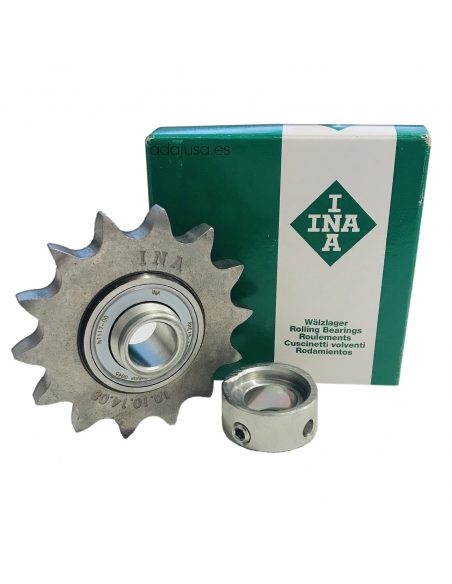

Tensioning wheel with ball bearing for steel chain (St 52). Diameter 30mm and 15 teeth. Valid for normal chains and roller chains European standard.

Reference: KSR 30.B0.16.10.15.15




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!


The tensioning wheels or sprockets for INA chains are units of guidance and forwarding of chains, being valid for normal chains and rollers. They serve to compensate for the elongations of the chains, which occur throughout the service life by the operation itself, improve the smoothness of the ride and increase the performance of the system under high loads and speeds.

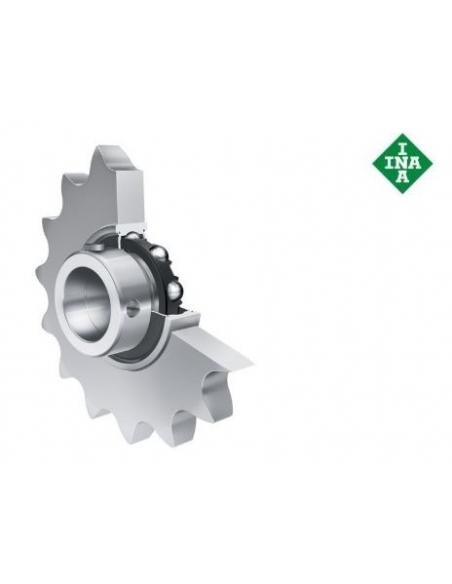

The units are supplied ready for assembly, are composed of wheel for the chain and rigid ball bearing already assembled. The tensioning wheels for chains are made of high-strength sintered steel. As the inner ring of the rigid ball bearing is extended on both sides, no additional separator rings are required.

The inner ring is fixed to the shaft by an eccentric tensioning ring. The drill in this series has a positive tolerance. In this way, unhanhanized shafts up to ISO h9 tolerance can be used under medium loads and speeds.

Manufacturer: INA

Reference: KSR 30.B0.16.10.15.15

Dimensiones rueda dentada perfil

Dimensiones rueda dentada frente

Dimensions:

  • Hub diameter (d): 30 mm Tolerance: +0.018/0
  • Tip diameter (Dk): 131 mm
  • Tensioner width (B1): 35.7 mm
  • Outer ring width (C): 18 mm
  • Tensioning thickness (C1): 15.3 mm.
  • Chamfer acho (C2): 2 mm.
  • Outer diameter (D): 62 mm.
  • Primitive diameter (D0): 122.2 mm.
  • Outer diameter of the tensioner (d3): 44 mm.
  • Dentate (p): 16B
  • Width between faces (W): M8x1 mm.
  • Number of teeth (Z): 15
  • Weight: 1,09 Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
