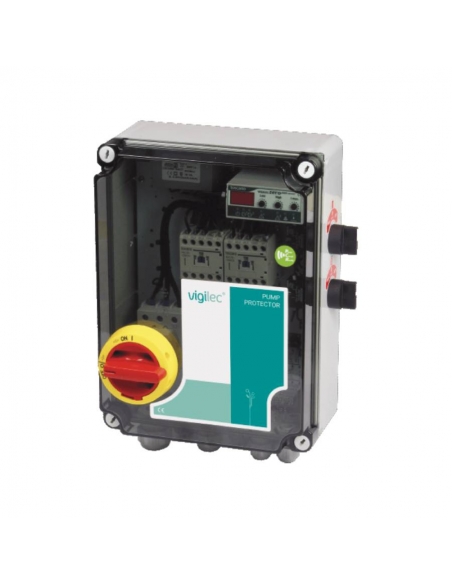

Control panel V2ZPS for 2 single-phase/three-phase pumps controlled by pressure switches or pressure sensor - TOSCANO

Modular control and protection panel for 2 single-phase or three-phase pumps up to 12A with automatic alternation between them by means of a 4/20mA pressure sensor or pressure switches (high pressure switch and low pressure switch), selectable 230Vac or 400Vac power supply.

It offers built-in protection of the pumps against overload, phase failure (three-phase pumps) and overheating in the event that the motor has a Klixon thermal contact that will cause it to stop due to thermal failure. It allows the detection of lack of air in the boiler, control of lack of water (minimum level) by buoy, sensor failure, automatic switching of the pumps due to failure or deactivation of one of them, remote control input, general alarm output by voltage free contact. Activation of the alarm contact can be caused by power failure, pump failure, air loss, sensor failure, pressure (sensor) failure. Compatible with Toscano brand PumpCheck data reader.

The TZ2PS control module, which is available in the modular panel, allows quick and easy adjustment of intensity for overload protection, as well as low and high pressure adjustment. Its display allows you to show data such as the status of the pumps and their current consumption, operating modes and times, detected faults and alarms. It also has pilot lights indicating the presence of voltage, pump operation, infrared communication (PumpCheck), states of overload or phase failure and low level. The reduced size of the TZ2PS control module allows for greater interior space and greater comfort inside the frame.

The panel has a load cut-off switch for forced stopping that stops the motor and does not allow it to start under any circumstances, as well as two selectors for operation in manual or automatic mode for each of the pumps. In the manual mode of operation, the pumps are not protected against any type of fault.


Wall mounting by direct fixing by screws or by means of claws.


Operating modes:

Technical characteristics:

• Manufacturer: Toscano
• Reference: V2ZPS
• Power supply: 230/400Vac (selectable) – 50/60Hz
• Allowable voltage variation: -20% to +30%
• Pump current range: 1...12A - AC3
• Overload setting: 1.1…13A – AC3 (alarm trip in 7 seconds).
• Control mode: Pressure switches or pressure sensor 4-20mA
• Control input voltage: 24VDC (pressure switches, low level float and external ON/OFF)
• 4-20mA sensor supply voltage: 24Vdc
• Sensor range: 10 bar
• Sensor failure detection: Open circuit and short circuit
• Low pressure setting (PLo): 0.1 to 9.8 bar
• High pressure setting (PHi): 0.3 to 10 bar
• Minimum distance PHi and PLo: 0.2 bar
• Cable gland configuration: 1xM25 (power supply) / 2xM20 (motors) / 6xM16 (controls)
• Protections: Overload, phase failure and pump overheating (Klixon contacts)
• Alarm contact: 5A, 250Vac
• Alarm contact activation: Overload, phase failure, sensor failure, power failure, lack of air and lack of pressure.
• Stored information (PumpCheck) for preventive maintenance of the pump: Module identification, reset counter, pump operating hours, pump starts, pump alarms and intensity of the last alarm trip.
• Working temperature: -10º to +55ºC
• Degree of protection: IP65
• Size: 300*220*120mm
• Weight: 3.55kg

Panel connection:




NOTE: A jumper must be placed to select the desired supply voltage. Consult instruction manual.

NOTE: For the connection of a 230V three-phase pump to single-phase current, it is necessary to create a false phase to enable asynchrony in the three-phase system. To do this, a capacitor is connected between one phase and the tip of the winding that remains without power.

For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
