Protection panel for photovoltaic installations, 2x2 strings (4 strings) / 2 MPPT.

The ECO-DC-INV-S model incorporates for each group of strings: disconnecting switch and DC transient overvoltage protection. It also includes, for each string, fuse holder base + 15A fuse. Maximum 1000VDC. IP65 protection degree.

Part number:  ECO-DC4I2F15S63FV10M-S

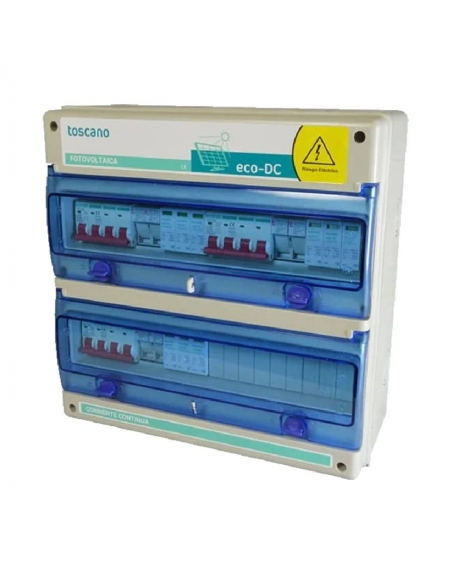

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!


Panel for switching and protection against transient overvoltages of 2x2 strings photovoltaic power generating systems (2 groups of 2 strings each) and 2 MPPT regulators used to transform solar radiation into electrical energy


The ECO-DC-INV-S panels, already wired and ready for installation, protect the line connecting the photovoltaic panels to the DC/AC inverter of the installation. . Each of the strings is protected with 1000Vdc fuse holder and 15A fuse, disconnector for each MPPT output and Vdc surge protectors.

The surge protectors incorporated in the ECO-DC-INV-S have been developed to protect against discharges and overvoltages produced by lightning strikes on the DC side of these systems. The protection consists of three stages of varistors equipped with thermal disconnectors that indicate through a window the failure of the element. It has a remote output (indication contact)








Regulatory regulations:

  • EN 20460-7-712
  • EN 60269-6
  • EN 60947-3
  • EN 50539-11



General characteristics:

  • Manufacturer Toscano
  • Part number:  ECO-DC4I2F15S63FV10M-S
  • Input-Output: 2x2 strings / 2 MPPT
  • Rated voltage (Unpv): 1000Vdc
  • Number of disconnectors: 2x63A
  • Maximum current: 25Adc (per string)
  • Maximum voltage DC+/DC- (Ucpv): 1500Vdc
  • Rated discharge current 8/20 (In): 20kA
  • Max. discharge current (Imax): 40kA
  • Protection level (Up): ≤ 3,4
  • Response time (ta): ≤ 25nS
  • Degree of protection: IP65
  • Operating temperature: -5º...+40oC
  • Dimensions: 362 x 362 x 160mm


Connection:







For more information, you can download the data sheet by clicking on the "Attachments" tab

Material for professional use, install respecting the regulations in force at the place of installation.
