Control panel V1N for 1 single-phase/three-phase pump control with or without probes- TOSCANO

€329.12 Tax included

€272.00 tax excl.

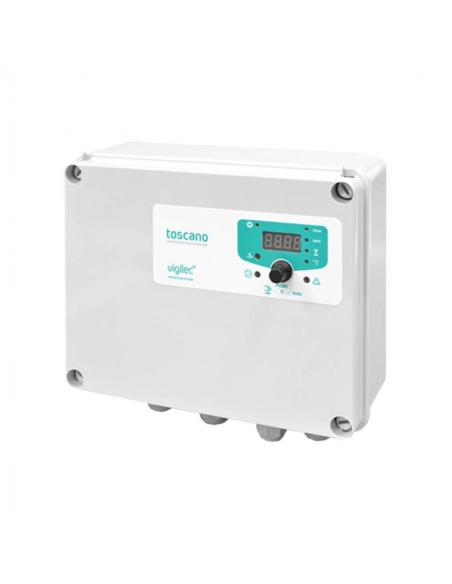

Compact control and protection panel for 1 single-phase or three-phase pump up to 16A, 230/400Vac power supply (selectable) for submersible or surface pump. It has integrated display on the front of the panel, overload and underload adjustment, low level control with or without probes (underload detection) and port for Wifi connection


Part number: V1N




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Compact control and protection panel for 1 single-phase or three-phase pump up to 16A, 230Vac or 400Vac selectable power supply, valid for both submersible and surface pumps. It offers built-in pump protection against overload, underload, phase failure, excessive starting frequency, overvoltage, power failure and anti-blocking protection that activates the pump for one second after 23 hours to prevent motor stalling after long periods of inactivity. Operating mode by probe(s), float(s) or motor underload


The front panel of the panel has a control panel for automatic (self-calibration at first start-up) or manual adjustment of the current for pump overload and underload protection and manual adjustment of the reset time and inhibition time. It has a 4-digit display showing pump status, operating modes and times, pump current consumption, alarm detected due to different types of faults, number of starts, intensity of the last alarm. It also has function or alarm indicator lights that, depending on the operation being carried out or the warning that the equipment is indicating, will light up in different colors and in a fixed or intermittent way (pump running, low level, general alarm, overload, underload, reset time in progress, inhibition time in progress)
It has an input for level control that can be performed by probes or without probes, by float and flow detector or inverse pressure switch, as well as a voltage-free contact input that allows the pump to be safely activated or deactivated by means of a pressure switch or level float. Another auxiliary input allows the pump to be shut down in case of low level, which can be used to refill the reservoir via a filler solenoid valve . Communication port for Wifi connection.


Operating modes (level control inputs):













Operating modes (external control)






Features:

  • Manufacturer Toscano
  • Reference: V1N
  • Power supply: 230/400Vac (selectable) - 50/60Hz
  • Admissible voltage variation: +/-20% (>30%: Auto-disconnection)
  • Maximum current: 16A AC3
  • Protections: Overload, Underload, Phase failure, Excessive frequency, Anti-blocking
  • Display: LED 4 digits
  • Signaling: Pump running, Alarm, Low level, Maximum current, Minimum current, Reset time and Flow detector inhibition time
  • Overload setting (Amp.max): 1 - 16A
  • Underload setting (Amp.min): OFF (disconnectable) or from 1 -16A
  • Reset time setting: 3 minutes - 99h or manually
  • Inhibition time setting: 5-200 seconds (flow detector)
  • Overload trip time: 7 seconds
  • Underload trip time: 4 seconds (20s at start-up)
  • Probe voltage: 24Vac
  • Sensitivity of probes: 10K ± 15%Ω
  • External ON/OFF input: Contact or voltage 6 to 400Vac/dc
  • Alarm and auxiliary contact: AC1: 2A / 250Vac, AC11: 1A / 230Vac
  • Remote control connection (REMOTE): Contact or voltage 6...400Vac/dc
  • Stored information: Running hours, number of starts, number of alarms and intensity of last alarm
  • Mounting: Direct or with mounting forks
  • Cable glands (Mains/Motor/Control): 1xM20/1xM20/1xM20+2xM16
  • Working temperature: -10 +55ºC
  • Protection degree: IP56
  • Dimensions: 225 x 255 x 110 mm
  • Weight: 1.8 Kg
  • Software: V.1.4


Panel wiring:



NOTE: A jumper must be placed to select the desired supply voltage. See instruction manual.











NOTE: The panel has space to place a starter capacitor for the pump. Maximum capacitor capacity: 80uF (50uF inside the unit)



For further information, you can download the technical data sheet by clicking on the "Attachments" tab

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.
