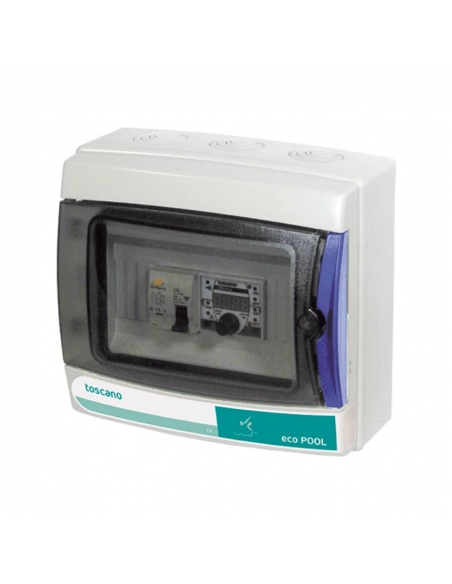

Modular control and protection panel for 1 three-phase pump up to 16A, 400Vac power supply, valid for both submerged and surface pumps. It offers built-in thermal protection of the pump against overload, underload, phase loss and excessive starting frequency. Operating mode by probe(s), float(s) or motor underload.
The TPM6 control module has a display and multi-control command with automatic or manual adjustment of overload, underload and reset time in one electrode mode or in motor underload mode; It has pilot lights indicating functions such as pump running, low level, maximum intensity, minimum intensity, reset time or alarms for overload, low load or excessive frequency of starts (> 30 starts/hour).
It also has a voltage-free input for external on/off control that allows the pump to be safely activated or deactivated through a pressure switch or level float, separate external outputs for pump operation, low level (lack of water ) and main alarm, specific location and connection terminals for the starter capacitor (fixing kit included), forced start of the pump in manual mode, storage of the operating data of the pump such as total operating hours and number total starts. Connection for remote control by voltage-free contact.
Operating modes:
1. Two probes (maximum level, minimum level)
2. One probe (minimum level) + Reset time
3. Without probes (underload: level below pump suction) + Reset time
4. Two buoys or floats (maximum level, minimum level) / One buoy (minimum level) + Reset time
5. Two probes (maximum level, minimum level) + External on/off control by pressure switch
6. Two probes (maximum level, minimum level) + External control on/off by buoy
Characteristic:
- Manufacturer: Toscano
- Reference: ECO-PUMP-400
- Power supply: 400VAC – 50/60Hz
- Protections: Overload, Underload, Phase failure, Excessive starting frequency
- Display: LED 4 digits
- Pump output: 16A
- Auxiliary outputs: Low level (LEVEL) and Alarm (ALARM) - 230V, 5A maximum
- Maximum current adjustment: Auto - 0.6...40A (jump in 7s)
- Minimum current setting: OFF - 0.5...40A (jump in 4s with 20s inhibition at start-up)
- Reset time setting: OFF - 3'...240min
- Degree of protection: IP65
- Operating temperature: -10º...+55 o C
- Dimensions: 235x245x110mm
Panel connection:
TPM6 connection:
For more information, you can download the technical sheet by clicking on the "Attached Files" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
