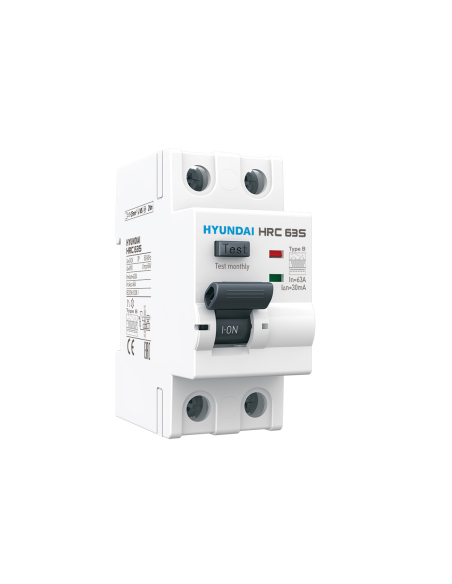

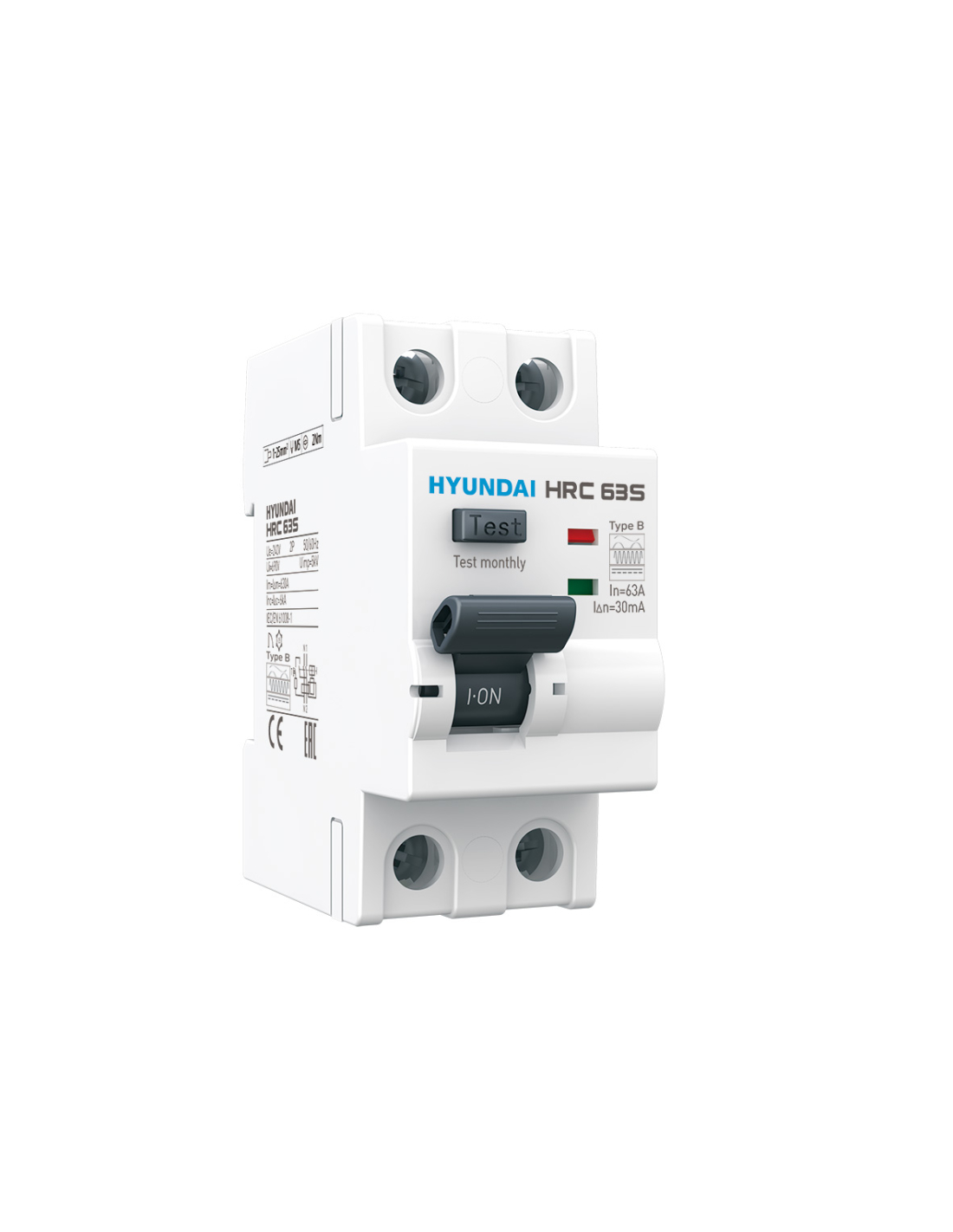

2-pole differential 63A 300mA class B - Hyundai Electric

€316.63 Tax included

€261.68 tax excl.

HRC63SB2P7063

Single-phase 2-pole (1P+N) 63A 300mA (0,3A) Class Bdifferential. Allows detection of 50Hz sine and pulsating signals with mixed components up to 1kHz and pure direct current component signals, ensuring at all times the protection of people against insulation/division problems in installations or electrical elements. Breaking capacity 10kA.

Class "B" is suitable for protection and monitoring of computer equipment (UPS), frequency converters, three-phase battery chargers, electric vehicle chargers and photovoltaic installations.

Part number: HRC63S-B2PG7063

esquema electrico magnetotermico diferencial




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Circuit breaker 63A 300mA (0.3A), category "B", 2-pole, for protection of persons against insulation/drift problems in electrical installations or elements. Allows detection of 50Hz sine and pulsed signals with mixed components up to 1kHz and DC component signals


Class "B" is suitable for protection and monitoring of computer equipment (UPS), frequency converters, battery chargers, electric vehicle chargers and photovoltaic installations. Class "B" residual-current devices can be considered suitable for all difficult applications, not only in terms of protection, but also in terms of operational continuity.

In this type of residual-current devices, tripping is ensured as in class A residual-current devices and also in the case of residual currents from rectified DC circuits or high-frequency AC circuits. They provide protection in case of continuous power failures, generated by controllers and variable frequency drives, batteries, inverters, power supplies UPS/UPS.

Technical characteristics:

  • Manufacturer/Supplier: Hyundai Electric
  • Part number: HRC63S-B2PG7063
  • Number of poles: 2 (1 Pole + Neutral)
  • Class: B
  • Operating voltage (Ue): 240Vac 50/60Hz
  • Rated current (In): 63A
  • Sensitivity (IΔn): 300mA
  • Breaking capacity10kA
  • Tripping time: 1In
  • Insulation voltage (In): 690V
  • Electrical life expectancy: 10,000 operations min
  • Mechanical life expectancy: 20,000 operations min
  • Degree of protection: IP20
  • Operating temperature: -40°C to +55°C (-40°C to +55°C)
  • Visual indication of contact position: Red-ON, Green-OFF
  • Standards: IEC/EN 61008-1, 62423
  • CE marking
  • Terminal size: 25 mm2
  • Net weight (Kg): 0.200
  • Dimensions (H x D x W): 81 x 74 x 35,8 mm
  • Mounting position: Vertical/Horizontal
  • Casing and cover: Molded thermoplastic material, flame-retardant
  • Comb connection possibility: Bottom only
  • Comb connection type: Pin typeFork
  • Contacts auxiliary: No



For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Superimmunized Class A 2-Pole 40A 300mA Differential Circuit Breaker VDA Toscano | ADAJUSA
Bipolar differential (2 poles)

2-pole differential 40A 300mA class A-SI - Toscano

Toscano
VDA2P40300
€56.19 (€46.44 tax excl.)
Single-phase Class A-SI superimmunized RCD, 40A 300mA (0.3A) 2 Poles (1P+N). Type A-SI RCD, designed to ensure continuous and efficient protection, detects alternating and pulsating residual current that occurs suddenly or increases slowly in magnitude, and presents high immunity to unwanted tripping. Breaking capacity 10kA. High-immunity Circuit breaker...
Differential 2 poles 100A 30mA 10kA - Hyundai Electric
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 100A 30mA 10kA Class A- Hyundai Electric

Hyundai Electric
HY102P10030A
€205.16 (€169.55 tax excl.)
Single-phase differential 2 poles (1+N) 100A 0.03A (30mA) Class A. Electromagnetic type, which allows you not to lose protection in case of variation in the voltage input and thus be able to maintain the protection of the active phase in case of neutral loss. High immunity to electrical noise, breaking capacity 10kA. Standard differential class "A"....
Differential 2 poles 25A 10mA AC iID - Schneider Differential 2 poles 25A 10mA AC iID - Schneider 2
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 25A 10mA AC iID - Schneider Electric

Schneider
A9R10225
€67.24 (€55.57 tax excl.)
2 Pole 25A differential switch, very high sensitivity, 10mA (0.01A), specially designed for protection against derivations in areas of special hazard (baths, hot tubs...). Standard "AC" class differential. Ref: A9R10225 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Circuit breaker Class A selective single-phase 40A 2-pole Hyundai | ADAJUSA : price
Shipping time: 2-3 days
Bipolar differential (2 poles)

Differential 2 poles 40A class A selective - Hyundai Electric

Hyundai Electric
HRC63ST2PG704
€71.64 (€59.21 tax excl.)
Single-phase class A selective 2-poledifferential (1 Pole + Neutral), 40A 300mA. Detects alternating and pulsating residual current that occurs suddenly or slowly increases in magnitude. Ordering Number: HRC63S-T2PG7040 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
2-pole differential 40A 30mA Superimmunized - Hypro 2-pole differential 40A 30mA Superimmunized - Hypro 2
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 63A 30mA Class F superimmunized 10kA

Generico-HYP
HY007SI26330A
€134.30 (€110.99 tax excl.)
Superimmunized Class F single phase differential 63A 30mA (0.03A). Electromagnetic type, which allows not to lose protection in case of variations in the voltage input in order to maintain the protection of the active phase. Cutting power 10kA. High immunization differential switch (Type F) avoiding untimely firing due to the presence of distorted...

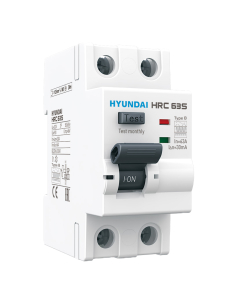

Class B differential 2 poles 63A, 30mA Hyundai Electric | ADAJUSA
Bipolar differential (2 poles)

Differential 2 poles 63A 30mA class B - Hyundai Electric

Hyundai Electric
HRC63SB2P4063
€356.30 (€294.46 tax excl.)
single-phase differential 2 poles (1P+N) 63A 30mA (0.03A) Class B. It allows the detection of 50Hz sinusoidal and pulsating signals with mixed components of up to 1kHz and pure direct current component signals, ensuring at all times the protection of people against insulation/derivation problems in installations or electrical elements. Breaking power...
Differential 2 poles 25A 30mA OMU adajusa OMR
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 25A 30mA 10kA class A - OMU

OMU System
OMR102A25003
€23.18 (€19.16 tax excl.)
Single-phase differential 2 Poles (P+N) 25A 0.03A (30mA) class A 10kA. Electromagnetic type, which allows you not to lose protection in case of variation in voltage input and thus be able to maintain the protection of the active phase in case of neutral loss. Standard differential class "A". Ref: OMR102A25003 Representative image for illustrative...
Differential Class B 2 poles 40A, 300mA Hyundai Electric | ADAJUSA
Bipolar differential (2 poles)

Differential 2 poles 40A 300mA class B - Hyundai Electric

Hyundai Electric
HRC63SB2P7040
€292.17 (€241.46 tax excl.)
Single-phase 2-pole (1P+N) 40A 300mA (0.3A) Class Bdifferential. Allows detection of 50Hz sinusoidal and pulsating signals with mixed components up to 1kHz and pure DC component signals, ensuring at all times the protection of people against insulation/division problems in installations or electrical elements. Breaking capacity 10kA. Class "B" is...

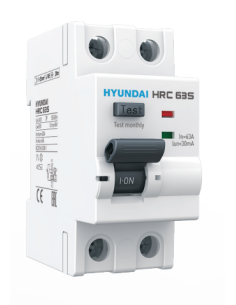

Circuit breaker Class A-APR superimmunized single-phase 25A 300mA 2-pole Hyundai | ADAJUSA | price
Shipping time: 2-3 days
Bipolar differential (2 poles)

Superimmunized 2-pole differential 25A 300mA class A-APR - Hyundai Electric

Hyundai Electric
HRC63SR2PG702
€70.33 (€58.12 tax excl.)
Single-phase class A-APR superimmunized 2-pole (1 Pole + Neutral), 25A 300mAdifferential. It detects alternating and pulsating residual current that occurs suddenly or increases slowly in magnitude, and presents high immunity to unwanted tripping. Circuit breaker of high immunization very suitable for installations with presence of electronic equipment...

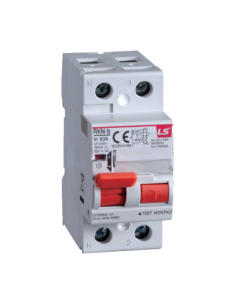

Differential 2 poles 40A 30mA 10kA Class A - LS | Adajusa
Bipolar differential (2 poles)

Differential 2 poles 40A 30mA 10kA Class A - LS

LS Electric
9RKNb2P4030A
€92.35 (€76.32 tax excl.)
single-phase electrical differential (1P+N) 40A, 30mA (0.03A), breaking capacity capacity 10kA . Electromagnetic type, which allows not to lose the protection in case of variations in the input voltage and maintain the protection of the active phase in case of loss of the neutral. Standard class "A" differential. Reference: RKN-b 2P 40A 30mA Class A...

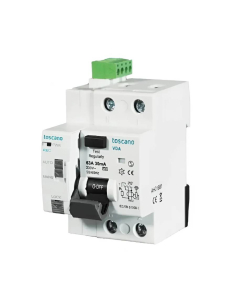

2-pole, 25A, 30mA, A-SI, Toscano self-resetting RCD | ADAJUSA | price
Bipolar differential (2 poles)

Pole self-resetting differential 2- 25A 30mA Class A-SI - Toscano

Toscano
VDA2P2530REC
€139.51 (€115.30 tax excl.)
Single-phase RCD with automatic reclosing 25A 30mA (0.03A) Class A-SI, 2 poles . Self-resetting RCD for alternating and pulsating current, Type A-SI, designed to guarantee continuous and efficient protection. It has 3 reset attempts and an alarm contact to indicate the end of the automatic reset attempts. The device only reconnects when the fault that...

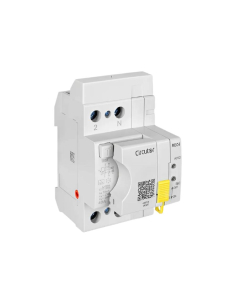

Self-resetting Circuit breaker 63A 30mACIRCUITOR REC4 | ADAJUSA | price Self-resetting Circuit breaker 63A 30mACIRCUITOR REC4 | ADAJUSA | price 2
Bipolar differential (2 poles)

Self-resetting differential 2 poles 63A 30mA Class A - Circutor

Circutor
REC-2P-63-30
€260.38 (€215.19 tax excl.)
2-pole class A single-phase automatic reconnection Circuit breaker , 63A 30mA. Isolation reconnection mode for high sensitivity protection, the equipment only reconnects when the defect that caused the trip has disappeared.Reference: REC4-2P-63-30 Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Differential 2 poles 40A 30mA OMU adajusa OMR
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 40A 30mA 10kA class AC - OMU

OMU System
OMR102040003
€14.68 (€12.13 tax excl.)
Single-phase differential 2 Poles (P+N) 40A 0.03A (30mA) CLASS AC 10kA. Electromagnetic type, which allows you not to lose protection in case of variation in voltage input and thus be able to maintain the protection of the active phase in case of neutral loss. Standard "AC" class differential. Ref: OMR102040003 Representative image for illustrative...
Differential 2 poles 40A 30mA - Hyundai Electric
Bipolar differential (2 poles)

Differential Circuit Breaker RCD 2 poles 40A 30mA - Hyundai Electric

Hyundai Electric
HY632P40030AC
€18.59 (€15.36 tax excl.)
Single-phase differential 2 Poles (1+N) 40a 0.03A (30mA) AC class. Electromagnetic type, which allows you not to lose protection in case of variation in voltage input, and thus be able to maintain the protection of the active phase in case of neutral loss. Standard "AC" class differential. Reference: HRC63S-G2PG4040 Representative image for...

Customers who bought this product also bought:

MCB circuit breaker 4 poles 6A (4x6A) - Hyundai Electric MCB circuit breaker 4 poles 6A (4x6A) - Hyundai Electric 2
MCB circuit breakers 4 poles

MCB circuit breaker 4 poles 6A (4x6A) - Hyundai Electric

Hyundai Electric
HHGD63M4P006C
€30.02 (€24.81 tax excl.)
4-pole 6A C-curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations. With an assigned breaking capacity of 6000A. Protects both conductors. Can be used in installations and assembly up to 500Vac. Reference: HGD63-M4P006C Representative image for illustrative purposes, the item supplied will correspond...

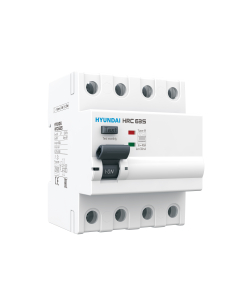

Differential Class B 4 poles 63A, 300mA Hyundai Electric | ADAJUSA
