Differential 2 poles 40A class A selective - Hyundai Electric

Differential 2 poles 40A class A selective - Hyundai Electric

€67.82 Tax included

€56.05 tax excl.

Single-phase class A selective 2-poledifferential (1 Pole + Neutral), 40A 300mA. Detects alternating and pulsating residual current that occurs suddenly or slowly increases in magnitude.


Ordering Number: HRC63S-T2PG7040

esquema electrico magnetotermico diferencial

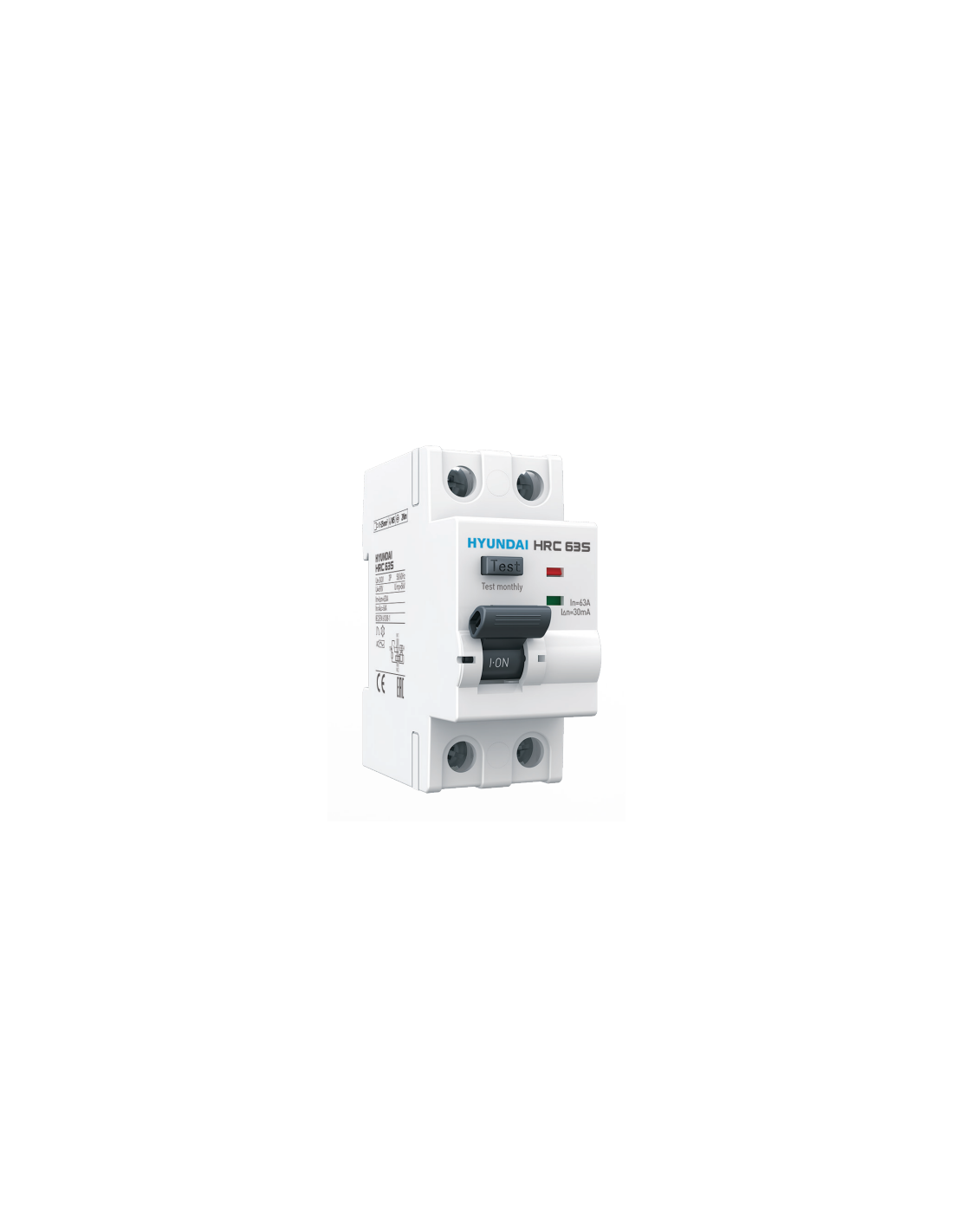

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electric differential switch 40A 300 mA (0,3A) selective, 2-pole (1 Pole + Neutral), electromagnetic type, for protection of persons against insulation/shunt problems in electrical installations or elements. For use in tertiary and industrial sectors and for loads with electronic components such as air conditioning, LED lighting, computers...

This type of selective (delayed) earth leakage circuit breakers allow the coordination of several earth leakage circuit breakers to avoid the total cut-off of the service in case of tripping. Detects residual alternating and pulsating current that occurs suddenly or increases slowly in magnitude.

Includes visual position indicator of contact red-ON, green-OFF.


Technical features:

  • Manufacturer/Supplier: Hyundai Electric
  • Part number: HRC63S-T2PG7040
  • Number of poles: 2 (1Pole+Neutral)
  • Class: Class A Selective
  • Type: Electrical differential
  • Use: Tertiary and industrial sector
  • Operating voltage: 240Vac
  • Frequency: 50/60Hz
  • Rated current (In): 40A
  • Sensitivity (IΔn): 300mA
  • Breaking capacity6kA
  • Rated closing power (Im): 500A or 10In (whichever is greater)
  • Tripping time: 1 IΔn
  • Minimum response time: 30ms
  • Insulation voltage (Ui): 690V
  • Electrical / Mechanical life (number of operations) Minimum: 10,000 / 20,000
  • Operating Temperature: -40ºC to + 55ºC
  • Maximum terminal size: 25mm2
  • Degree of protection: IP20
  • Visual position indicator of contact: Red-ON, Green-OFF
  • Installation position: Vertical / Horizontal
  • Housing and cover: Molded thermoplastic, flame-retardant
  • Auxiliary contacts: No
  • Weight: 0.20 Kg
  • Standards: IEC/EN61008-1
  • CE Marking







For further information you can download the installation manual by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
