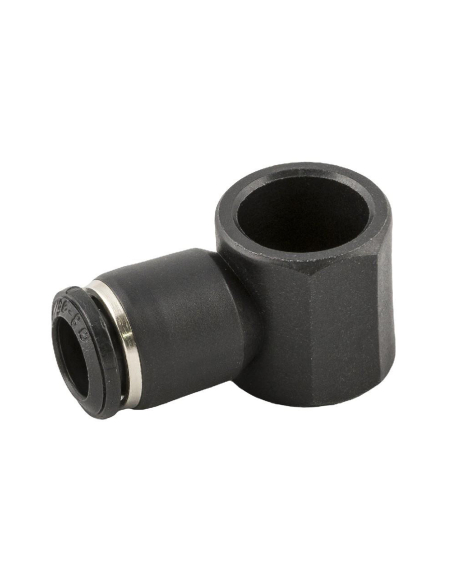

Steerable ring simple 1/4 tube diameter 4mm Series 55000 - Aignep

Adjustablering 1/4 tube diameter 4mm, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical specifications:

• Manufacturer: Aignep.
• Part number: 55500 4 1/4
• Outer tube diameter: 4mm.
• Thread: 1/4
• Fluid: vacuum, compressed air and water
• Material: Technopolymer
• Tube extractor ring: acetal resin
• Seal of retention: NBR
• Clamping spring: stainless steel
• Pressure: -0,99 bar to 20 bar
• Working temperature: -20°C to +80°C
• Thread standard
  • Gas conical according to ISO 7.1, BS 21,DIN 2999
  • Gas cylindrical according to ISO 228 Class A
  • Metric according to ISO R/262

Material for professional use, install in compliance with the regulations in force at the place of installation.
