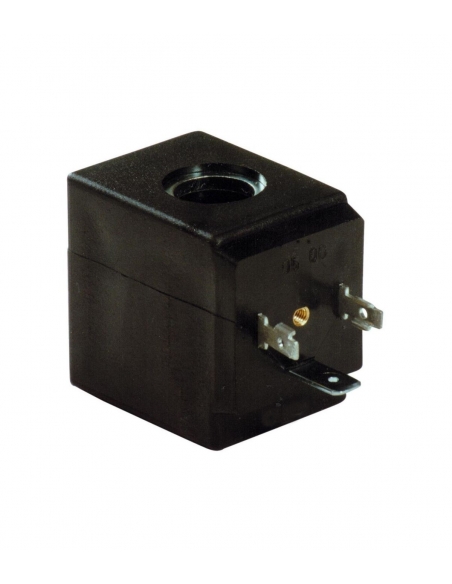

Solenoid valve coil 110Vac 22VA RSPJ

Name: Solenoid valve coil 110Vac 22VA RSPJ
Brand: Aignep
SKU: MA30110AC
Price: 11.5192 EUR
Availability: InStock

€11.52 Tax included

€9.52 tax excl.

Coil for electrovalve size 30mm, voltage 110Vac., with a consumption of 22VA.

Manufactured by Aignep and valid for RSPJ series electrovalves.

Reference: MA30110AC

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Coil size 30mm for voltage of 110Vac with a power of 22VA, suitable for electrovalves series RSPJ

specifications:

Manufacturer: Aignep.
Reference: MA30110AC
Rated voltage: 110Vac.
Stress tolerance: ±10%.
Rated power: 22VA.
Size: 30mm DIN 43650
Type of insulation: H CEI EN 60529.
Degree of protection: IP65 according to EN60529 with connector.
Temp. max. coil at ED100%: 70ºC for an ambient temperature of 20ºC.

Dimensiones bobina electroválvula tamaño 30 diámetro 13
Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

flow solenoid valves

aIGNEP flow solenoid valves

Download (2.63MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)
