Threaded female transits fitting 1/8 tube 6mm Series 50000 - Aignep

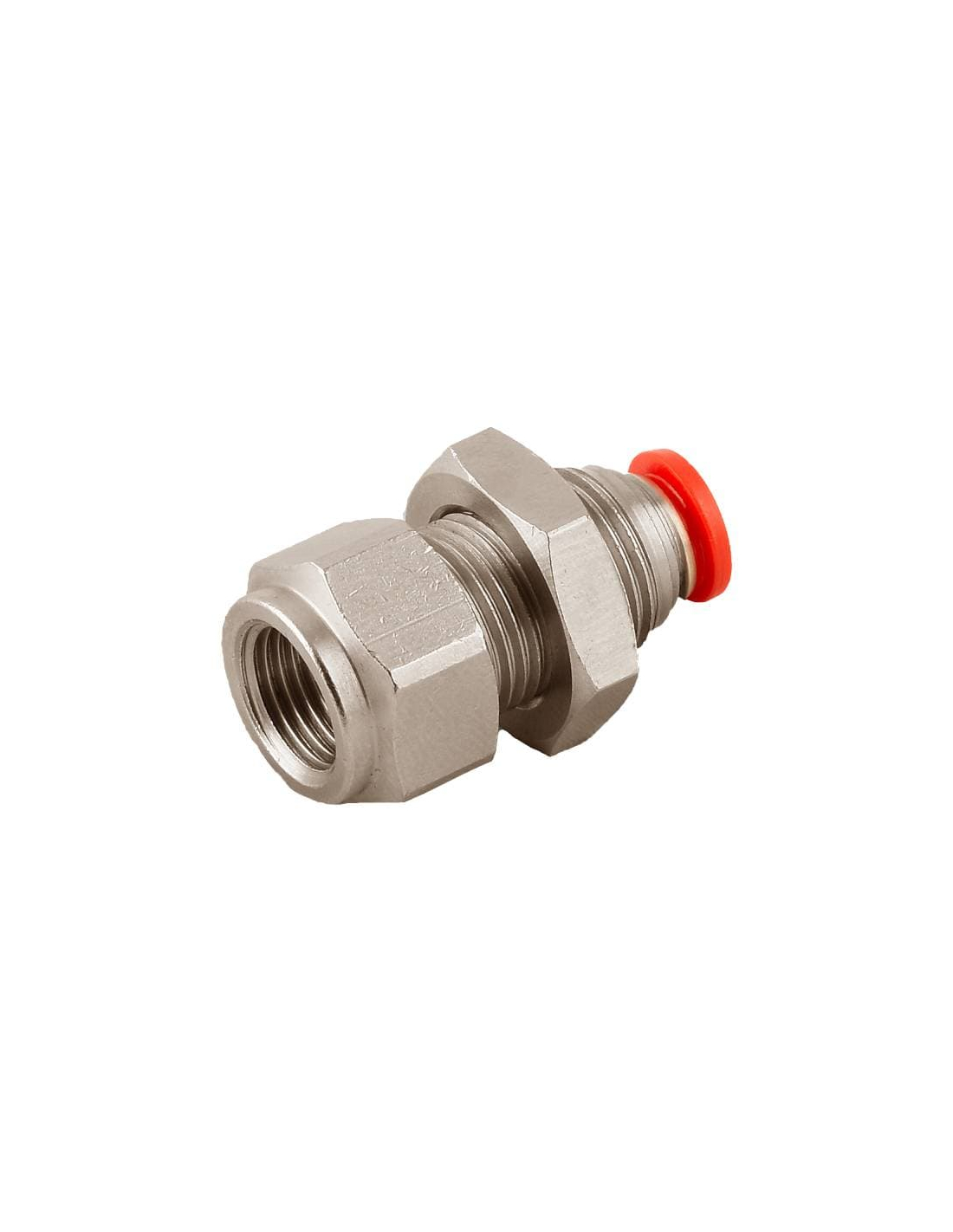

1/8 female threaded transits bushing fitting for 6mm tube with included metal nut measuring M14x1 , made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications that are inaccessible to the fingers.

Technical characteristics:

• Manufacturer: Aignep .
• Reference: 50055 6 1/8
• Female thread: 1/8
• Number of nuts: 1
• Tube outer diameter: 6mm
• Fluid: Vacuum - Compressed air
• Operating pressure: -0.99 bar to 20 bar
• Material: Chromed brass
• Tube extractor ring: acetal resin
• Clamping spring: stainless steel
• Working temperature: -20ºC to +80ºC
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas conforming to ISO 228 Class A
  • ISO R/262 compliant metric

Material for professional use, install in compliance with the regulations in force at the installation site.
