Double discs or ring gears Z15 5/8 x 3/8 10B-2 ISO DIN 606

€26.23 Tax included

€21.68 tax excl.

Toothed discs or double toothed chains for roller chain 5/8" x 3/8" mm 10B-2 according to European standard DIN ISO 606

Reference: DISC Z15 5/8 DOUBLE

Teeth: 15

ISO: 10B-2 ( 5/8" x 3/8" mm )

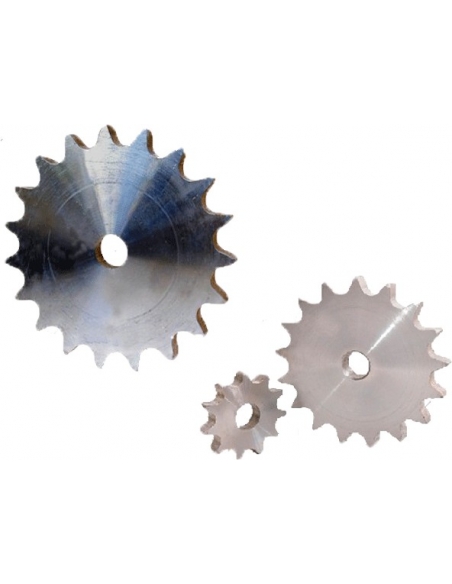

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Toothed discs or double sprockets Z15 (15 teeth) for roller chain 5/8" x 3/8" mm 10B-2.
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISC Z15 5/8 DOUBLE

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristic:

  • 5/8" x 3/8"mm 10B-2
  • 15.875 x 9.65mm
  • Teeth: 15
  • Tooth Radius: 16mm
  • Curved area width: 1.6 mm
  • Tooth Width (h1): 9.1mm
  • Outer Diameter (OD): 83.0
  • Primitive diameter (Dp): 76.36
  • Hub diameter (D): 12 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
