Single discs or ring gears Z11 5/8 x 3/8 10B-1 ISO DIN 606

€6.62 Tax included

€5.47 tax excl.

Discos dentados o cadenas dentadas simples Z11 para cadena de rodillos 5/8" x 3/8" 10B-1 según norma Europea DIN ISO 606

Referencia: DISCO Z11 5/8

Dientes: 11

ISO: 10B-1 (5/8" - 3/8")

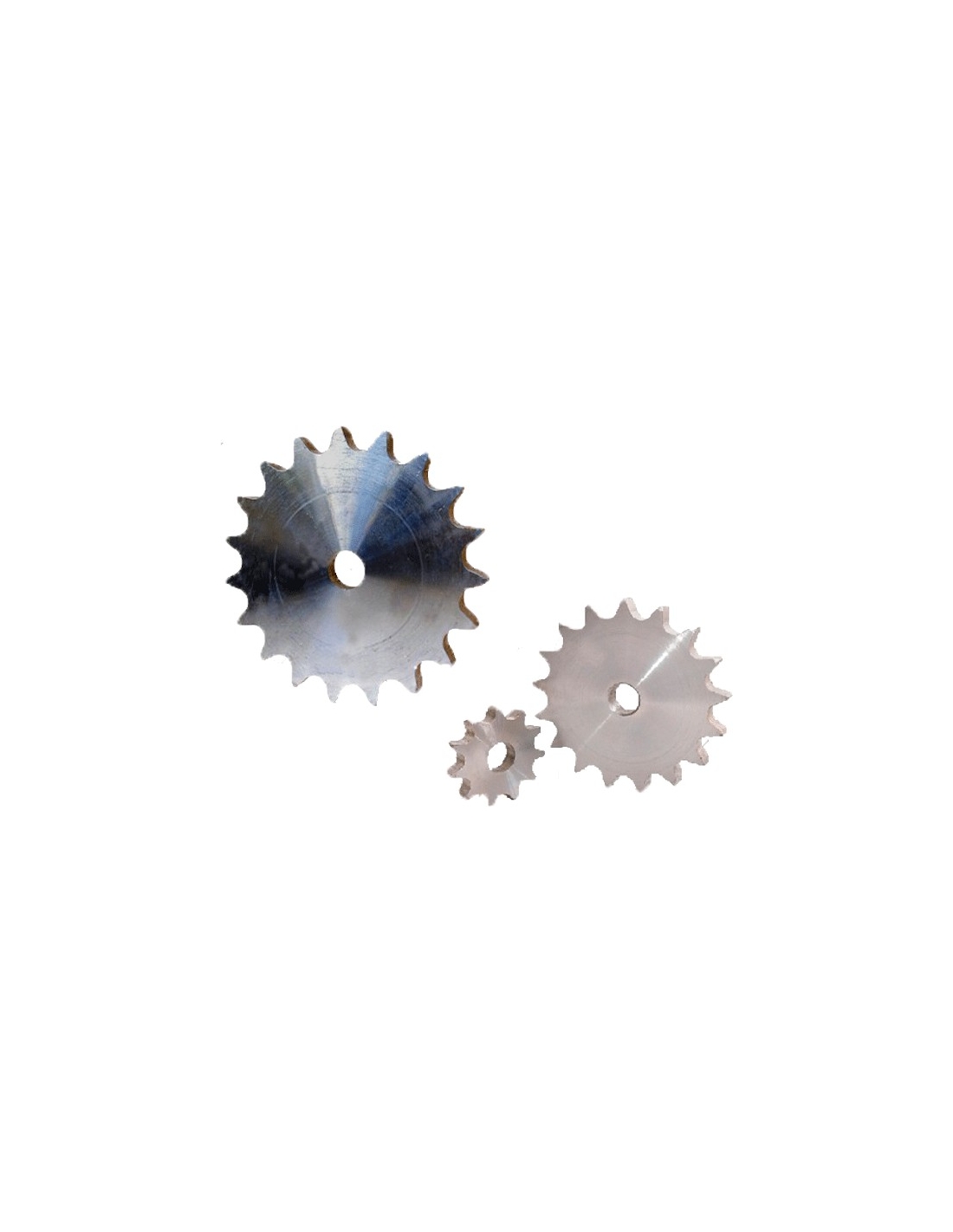

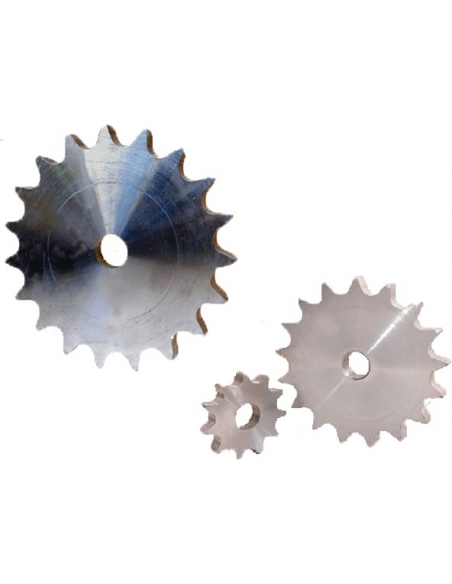

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!


Toothed discs or simple toothed crowns Z11 (11 teeth) for roller chain 5/8" 10B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z11 5/8

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristics:

  • 5/8” x 3/8”mm ISO 10B-1
  • 15.875 x 9.65mm
  • Teeth: 11
  • Tooth Radius: 16mm
  • Curved area width: 1.6 mm
  • Tooth width (h1): 9 mm
  • Outside Diameter (OD): 63.0
  • Primitive diameter (Dp): 56.34
  • Hub diameter (D): 10 (unmachined shaft)



Material for professional use, install in compliance with the regulations in force at the place of installation.
