Simple toothed discs or crowns Z60 1/2 x 5/16 08B-1 ISO DIN 606

€68.69 Tax included

€56.77 tax excl.

Toothed discs or simple toothed chains for roller chain 1/2" 08B-1 according to European standard DIN ISO 606

Reference: DISCO Z60 1/2

Teeth: 60

ISO: 08B-1 (1/2" - 5/16mm)

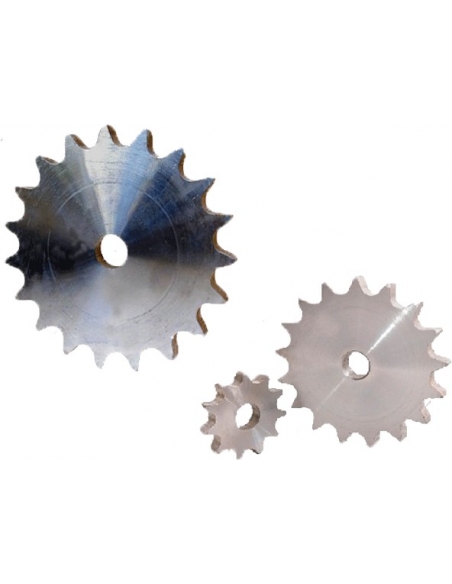

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.



Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns


Toothed discs or simple toothed crowns Z60 (60 teeth) for roller chain 1/2" 08B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z60 1/2

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristic:

  • 1/2” x 5/16”mm ISO 08B-1
  • 12.7x7.75mm
  • Teeth: 60
  • Tooth Radius: 13mm
  • Curved area width: 1.3 mm
  • Tooth width (h1): 7.2mm
  • Outer Diameter (OD): 248.6
  • Primitive diameter (Dp): 242.66
  • Hub diameter (d): 20 (unmachined shaft)



Material for professional use, install in compliance with the regulations in force at the place of installation.
