Simple toothed discs or crowns Z19 3/8 x 7/32 06B-1 ISO DIN 606

€4.31 Tax included

€3.56 tax excl.

Toothed discs or simple toothed chains Z19 for roller chain 3/8" 06B-1 according to European standard DIN ISO 606

Reference: DISCO Z19 3/8

Teeth: 19

ISO: 06B-1 (3/8" - 7/32mm)

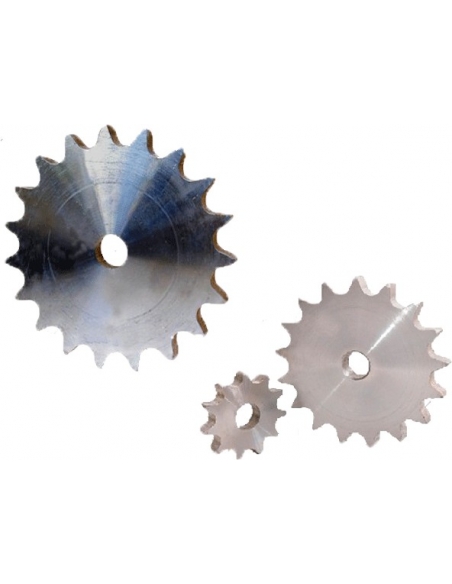

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Toothed discs or simple toothed crowns Z19 (19 teeth) for roller chain 3/8" 06B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z19 3/8

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristic:

  • 3/8” x 7/32”mm ISO 06B-1
  • 9.525 x 5.72mm
  • Teeth: 19
  • Tooth radius: 10mm
  • Curved area width: 1 mm
  • Tooth width (h1): 5.3mm
  • Outer Diameter (OD): 61.3
  • Primitive diameter (Dp): 57.87
  • Hub diameter (d): 10 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
