Three-phase to single-phase transformer 16 KVA 400/230Vac with case

Special manufacturing material
€1,238.74 Tax included

1023.75 tax excl.

TRTM16

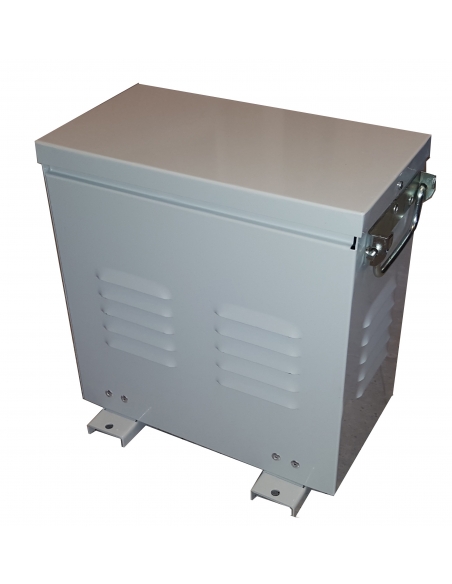

Three-phase to single-phase 16kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and voltages 400Vac to 230Vac. It provides galvanic separation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Part number: TRTM16

Esquema_Transformador_trifasico_monofasico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

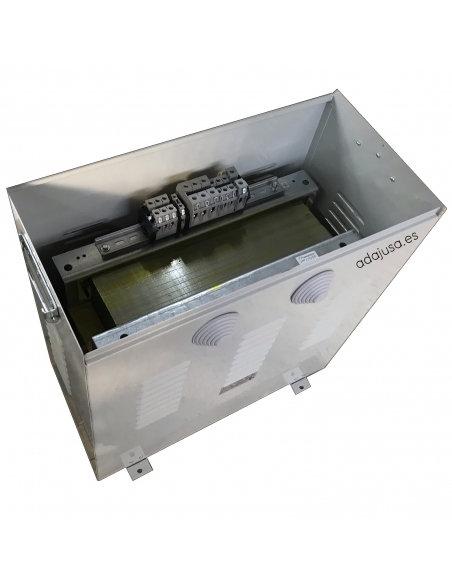

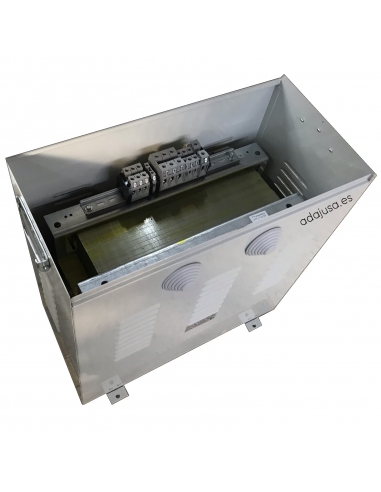

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e. they cannot transform a single-phase line into a three-phase line.

Technical characteristics:


  • Reference: TRTM16
  • Primary voltage: three-phase 400Vac.
  • Secondary voltage: Single-phase 230Vac.
  • Power: 16KVA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200ºC.
  • Test voltage: 5KV between windings and 3KV between windings and ground.
  • Insulation: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
mi necessita lo schema il datasheet del trasformatore e comprendere se l'uscita è unica, ossia i 16kva sono su una unica linea; dovendo alimentare 3 pompe di calore in parallelo monofase il cui assorbimento è di circa 9kw
Answer

Buongiorno,

Inviamo la scheda tecnica del trasformatore. Un'unità da 16 kVA sarà troppo piccola per alimentare 3 pompe da 9 kW.


Saluti

ADAJUSA

Pasquale Ruocco on 02/02/2025 15:29:10
Question
Buenos días Quería consultaros sobre el Periodo de Garantía que tiene este producto y cual es el procedimiento para reclamar durante el mismo en caso de alguna incidencia. Gracias por anticipado y Atentamente
Answer
Estimado cliente,


Todos nuestros artículos tienen dos años de garantía.


Para gestionar la garantía, deben generar un RMA de devolución desde su usuario indicando el producto que desea devolver para gestionarlo por garantía, y enviárnoslo.

Una vez que nos llegue, se revisara y en caso de ser un fallo de fábrica, se le abonara o se le mandará otro en su lugar, en caso de que se detecte que es un fallo por mal uso o manipulación, entonces, se dejara en nuestras instalaciones a la espera de que pasen a recogerlo.


Un saludo
ADAJUSA
Eduardo Garcia on 10/03/2022 10:17:16
