Three-phase motor 0.25Kw 0.33hp 230/400V 1500 rpm Flange B5
Three-phase motor 0.25Kw 0.33hp 230/400V 1500 rpm Flange B5
Three-phase asynchronous electric motor 0.25Kw 0.33HP B5 aluminum flange 4 poles 1500 | ADAJUSA | price
Three-phase motor 0.25Kw 0.33hp 230/400V 1500 rpm Flange B5
Three-phase motor 0.25Kw 0.33hp 230/400V 1500 rpm Flange B5
Three-phase asynchronous electric motor 0.25Kw 0.33HP B5 aluminum flange 4 poles 1500 | ADAJUSA | price

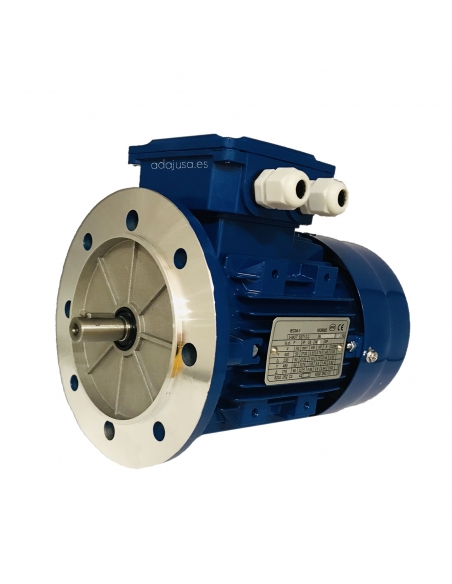

Three-phase motor 0.25Kw 0.33HP 230/400V 1500 rpm Flange B5

€94.51 Tax included

78.11 tax excl.

SS7114B54E1

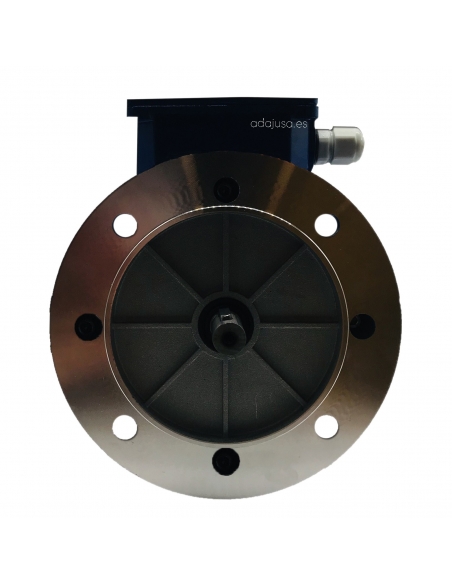

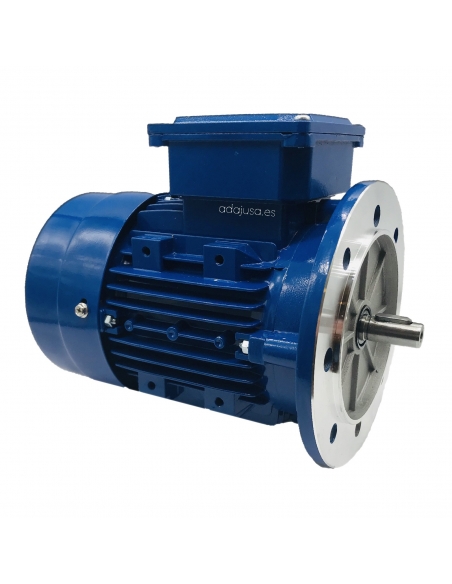

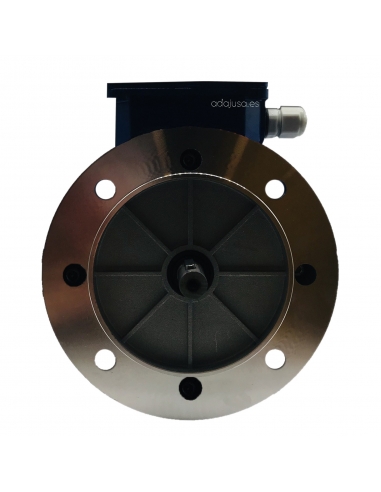

Three-phase electric motor 0.25kW (0.33HP) 230/400Vac , 1500 rpm (4 Poles), B5 flange, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SS-71M1-4 B5
  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 4.
  • Revolutions: 1500 rpm .
  • Flange: B5.
  • Shaft diameter: 14mm.
  • flange diameter: 160m.
  • Power: 0.25Kw - 0.33hp.
  • Size: 71.
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

.

1 question about the product
Privacy
Shipments
Returns


Three-phase electric motor 0.25kW (0.33HP) asynchronous 230/400V 1500 rpm Flange B5. Aluminum casing.
Standardized three-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-71M1-4 B5
  • Motor type: squirrel cage asynchronous.
  • Efficiency: IE1.
  • Voltage: 230/400 Vac., 50/60Hz.
  • number of poles: 4 Poles.
  • Revolutions: 1500 (1400)
  • Power: 0.25 Kw (0.33 HP).
  • Intensity: 1.44/0.83 A.
  • Performance: 67%.
  • Continuous service: S1.
  • Protection degree: IP55.
  • Fastening type: B5 flange.
  • shaft diameter: Ø14mm.
  • flange diameter 160mm
  • Shell size: 71(M1).
  • PAM : 160/14.
  • Color blue.
  • Housing material : Aluminum.
  • Weight: 5.6 kg.
  • CE marking.

For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

B5-B14 aluminum motor table


For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.

Questions

Question
buenas tardes el motor motor trifasico 0,25Kw 0,33CV 230/400V 1500 rpm Brida B5 carcasa aluminio tiene certificado ATEX, un saludo
Answer

Buenas tardes,

Este tipo de motores no son ATEX. son estandar IP55

Saludos

Manuel on 04/19/2018 14:44:30

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Three-Phase Cast Iron Electric Motor 11Kw 15HP B3 foot flange 4 Pole 1500 | ADAJUSA
Check availability
Three-phase electric motors 1500 rpm flange B3 (foot) car. Casting

Three-phase motor 11Kw/15HP 400/690V 1500 rpm B3 foot flange cast iron case

Especial-MOT
SSY160M4B341
€794.50 (€656.61 tax excl.)
Three-phase electric motor 11kW (15HP) 400/690Vac., 1500 rpm (4 Poles), B3 foot flange, cast housing. Voltage: 400/690Vac 50/60Hz. Reference: SSY-160M-4 B3 4/6 Number of poles: 4. Revs: 1500 rpm. Flange: B3 foot. Shaft diameter:42mm. Power: 11Kw - 15hp. Size: 160. Energy efficiency: IE1. Representative image for illustrative...

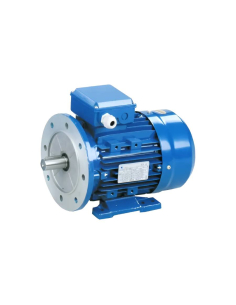

Three-phase electric motor 0.06kW 0.08HP B35 legs 4 poles 1500 | ADAJUSA | price
Three-phase electric motors 1500 rpm flange B35 (Legs) aluminum housing

Three-phase motor 0.06kW/0.08HP 230/400V 1500 rpm Flange B35

Generico-MOT
SS5614B354E1
€79.27 (€65.51 tax excl.)
Three-phase electric motor 0.06kW (0.08HP) 230/400V 1500rpm (4 Poles), B35 flange, aluminum housing and IP55 protection degree, S1 service factor. Manufactured under European IEC regulations.A B35 flange motor is a motor that has a B5 front flange and legs (B3 flange) mounted. Reference: SS-56M1-4 B35 Voltage: 230/400Vac, 50/60Hz Power: 0.06kW -...
Three-phase cast iron electric motor 18.5Kw 25 HP 400/690V B5 flange 4 poles 1500 | ADAJUSA | price Three-phase cast iron electric motor 18.5Kw 25 HP 400/690V B5 flange 4 poles 1500 | ADAJUSA | price 2
Three-phase electric motor 1500 rpm flange B5 cast iron case

Three-phase motor 18.5Kw/25HP 400/690V 1500 rpm B5 flange cast iron casing

Especial-MOT
SSY180M4B561
€1,254.46 (€1,036.74 tax excl.)
Three-phase electric motor 18.5kW (25HP) 400/690Vac., 1500 rpm (4 Poles), B5 flange, cast iron housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm . Flange: B5. Shaft diameter: 48mm. Power: 18.5Kw - 25hp. Size: 180. Energy efficiency: IE1 . Representative image for...
Three-phase motor 3Kw 4CV 230/400V 1500 rpm IE3 Flange B5 Three-phase motor 3Kw 4CV 230/400V 1500 rpm IE3 Flange B5 2
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

Three-phase motor 3Kw 4HP 230/400V 1500 rpm IE3 Flange B5

Generico-GAR
AL100L4BB54E3
€356.35 (€294.50 tax excl.)
Three-phase electric motor 3kW (4HP) 230/400V 1500 rpm (4 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations. High energy efficiency, category IE3. Voltage: 230/400Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm. Flange: B5. Shaft diameter: 28mm. Flange diameter: 250mm Power: 3Kw - 4HP. Size: 100. Energy...
Three-phase electric motor 0.09kW 0.12CV B35 legs 4 poles 1500 | ADAJUSA | price
Three-phase electric motors 1500 rpm flange B35 (Legs) aluminum housing

Three-phase motor 0.09kW/0.12HP 230/400V 1500 rpm Flange B35

Generico-MOT
SS5624B354E1
€73.47 (€60.72 tax excl.)
Three-phase electric motor 0.09kW (0.12HP) 230/400V 1500rpm (4 Poles), B35 flange, aluminum housing and IP55 protection degree, S1 service factor. Manufactured under European IEC regulations.A B35 flange motor is a motor that has a B5 front flange and legs (B3 flange) mounted. Reference: SS-56M2-4 B35 Voltage: 230/400Vac, 50/60Hz Power: 0.09kW -...
Three-phase motor 1.1Kw 1.5CV 230/400V 1500 rpm IE1 Flange B5 reduced housing Three-phase motor 1.1Kw 1.5CV 230/400V 1500 rpm IE1 Flange B5 reduced housing 2
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

Three-phase motor 1.1Kw 1.5HP 230/400V 1500 rpm IE1 Flange B5 reduced casing

Generico-MOT
SS8034B54E1
€137.89 (€113.96 tax excl.)
Three-phase electric motor 1.1kW (1.5HP) asynchronous 230/400V 1500 rpm Flange B5. Reduced aluminum housing. Manufactured under European IEC regulations. Reference: SS-803-4 B5 CR Voltage: 230/400Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm . Flange: B5. Shaft diameter: 19mm. flange diameter: 200mm Power: 1.1Kw - 1.5HP. Size: 80....

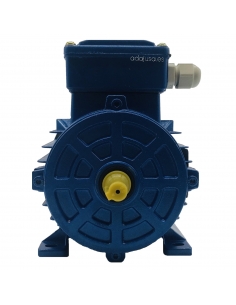

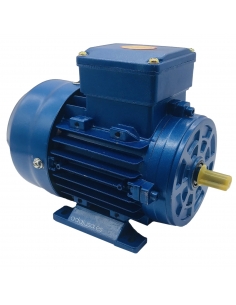

Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot 2
Three-phase electric motors 1500 rpm flange B3 (foot) aluminum housing IE1, IE2, IE3

Three-phase motor 4Kw 5.5HP 400/690V 1500 rpm IE1 Flange B3 Foott

Generico-MOT
SS112M4B36E1
€318.28 (€263.04 tax excl.)
Three-phase electric motor 4kW (5,5CV) 400/690V 1500 rpm (4 poles) Flange B3 legs, aluminum housing. Manufactured under European IEC standards Voltage: 400/690Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm. Flange: B3 Legs. Shaft diameter: 28mm. Power: 4Kw - 5,5Cv. Size: 112. Energy efficiency: IE1 Representative image for...
Three-phase electric motor 7.5kW 10HP B34 legs 4 poles 1500 | ADAJUSA | price Three-phase electric motor 7.5kW 10HP B34 legs 4 poles 1500 | ADAJUSA | price 2
Three-phase electric motors 1500 rpm flange B34 (Legs) aluminum housing

Three-phase motor 7.5kW/10HP 400/690V 1500 rpm Flange B34

Generico-MOT
SS132M4B346E1
€523.11 (€432.32 tax excl.)
Three-phase electric motor 7.5kW (10HP) 400/690V 1500rpm (4 Poles), B34 flange, aluminum housing and IP55 protection degree, S1 service factor. Manufactured under European IEC regulations.A B34 flange motor is a motor that has a B4 front flange and legs (B3 flange) mounted. Reference: SS-132M-4 B34 Voltage: 400/690Vac, 50/60Hz Power: 7.5kW - 10HP...
Three-phase motor 2.2Kw 3CV 230/400V 1500 rpm IE1 Flange B3 foot Three-phase motor 2.2Kw 3CV 230/400V 1500 rpm IE1 Flange B3 foot 2
Three-phase electric motors 1500 rpm flange B3 (foot) aluminum housing IE1, IE2, IE3

Three-phase motor 2.2Kw 3HP 230/400V 1500 rpm IE1 Flange B3 foot

Generico-MOT
SS100L14B34E1
€220.87 (€182.54 tax excl.)
Three-phase electric motor 2.2kW (3HP) 230/400V 1500 rpm (4 Poles) Flange B3 foot, aluminum housing. Manufactured under European IEC regulations. Reference: SS100L14B34E1 Voltage: 230/400Vac 50/60Hz. number of poles: 4. Revolutions: 1500 rpm. Flange: B3 foot. Shaft diameter: 28mm. Power: 2,2Kw - 3HP. Size: 100. Energy efficiency: IE1...

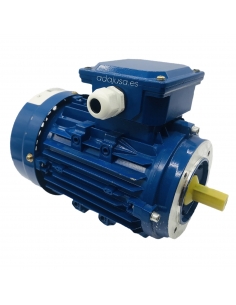

Three-phase motor 5.5Kw 7.5hp 230/400V 1500 rpm IE1 Flange B14
Three-phase electric motors 1500 rpm flange B14 aluminum housing IE1, IE2, IE3

Three-phase motor 5.5Kw 7.5HP 230/400V 1500 rpm IE1 Flange B14

Generico-MOT
SS132S4144E1
€434.74 (€359.29 tax excl.)
Three-phase electric motor 5.5kW (7.5HP) 230/400V 1500 rpm (4 Poles) B14 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS132S4144E1 Voltage: 230/400Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 38mm. flange diameter: 200mm Power: 5.5Kw - 7.5HP. Size: 132. Energy...
Three-phase motor 1.5Kw 2CV 230/400V 1500 rpm IE3 Flange B5 Three-phase motor 1.5Kw 2CV 230/400V 1500 rpm IE3 Flange B5 2
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

Three-phase motor 1.5Kw 2HP 230/400V 1500 rpm IE3 Flange B5

Generico-GAR
ALH90L4B54E3
€245.18 (€202.63 tax excl.)
Three-phase electric motor 1.5kW (2HP) 230/400V 1500 rpm (4 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations. High energy efficiency, category IE3. Voltage: 230/400Vac 50/60Hz. Number of poles: 4. Revolutions: 1500 rpm. Flange: B5. Shaft diameter: 24mm. Flange diameter: 200mm Power: 1,5Kw - 2HP. Size: 90. Energy...

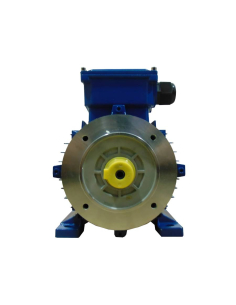

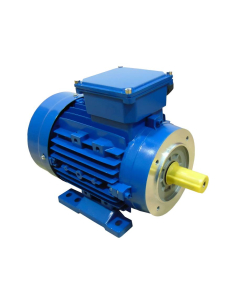

Three-phase electric motor 0.06kW 0.08HP B34 legs 4 poles 1500 | ADAJUSA | price Three-phase electric motor 0.06kW 0.08HP B34 legs 4 poles 1500 | ADAJUSA | price 2
