Three-phase motor 37Kw 50HP 400/690V 750 rpm...
Three-phase motor 37Kw 50HP 400/690V 750 rpm Flange B3 foot cast iron case

Three-phase motor 37Kw 50HP 400/690V 750 rpm Flange B3 foot cast iron case

€3,056.19 Tax included

€2,525.78 tax excl.

Three-phase electric motor 37kW (50HP) 400/690V 750 rpm (8 Poles) Flange B3 foot, cast housing. Manufactured under European IEC regulations.

  • Voltage: 400/690Vac 50/60Hz.
  • Reference: SSY-280S-8 B3 4/6
  • number of poles: 8.
  • Revs: 750 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 65mm.
  • Power: 37Kw - 50Hp.
  • Size: 280.
  • Energy efficiency: IE1.

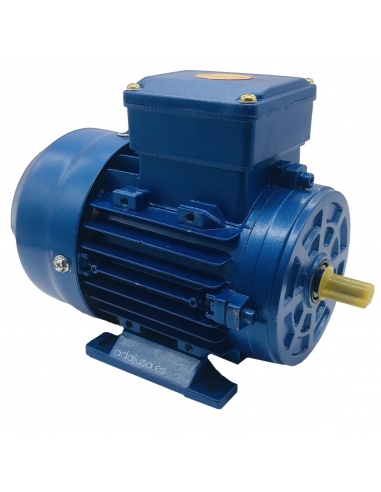

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 37kW (50hp) 400/690V 750 rpm Flange B3 (foot). Made of cast iron.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SSY-280S-8 B3 4/6
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 400/690 V. III. 50/60 Hz.
  • number of poles: 8.
  • Revolutions: 750 (735).
  • Power: 37Kw (50HP).
  • Intensity: 73.9/42.7A
  • Yield: 90.3%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot
  • Shaft diameter: Ø65mm
  • Housing size 280 (280S).
  • Color: Blue.
  • Weight: 475Kg.
  • Housing material: casting.
  • CE marking.

For more information, other powers or executions consult.

B3 Hierro Imagen cotas

As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Material for professional use, install in compliance with the regulations in force at the installation site.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
