Three-phase motor 3Kw/4CV 3000 rpm Flange B5 - IE2 - IE3 - Siemens
Three-phase motor 3Kw/4CV 3000 rpm Flange B5 - IE2 - IE3 - Siemens

Three-phase motor 3Kw-4CV 3000 rpm Flange B5 IE3 - INNOMOTICS

Shipping time: 2-3 days
€844.45 Tax included

697.89 tax excl.

E10031AA42FA4

Three-phase electric motor 3kW (4CV) asynchronous 230/400Vac, 2 Poles 3000 rpm Flange B5. Energy rating IE3.

Manufactured by INNOMOTICS, series SIMOTICS GP in aluminum.

Part number: 1LE1003-1AA4-2FA4.

INNOMOTICS

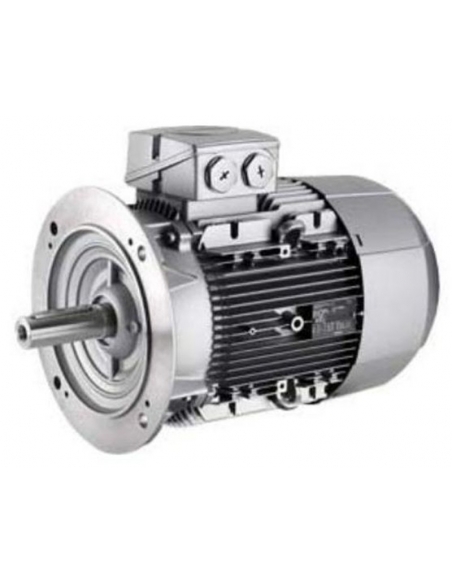

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 3kW (4CV) asynchronous 230/400V, 3000 rpm B5 flange, aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

characteristics:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Reference: 1LE1003-1AA4-2FA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230/400 V. III. 50-60 Hz.
  • Power: 3Kw 4CV.
  • Current: 6,1/10,56A
  • number of poles: 2.
  • Rpm: 3000 (2800).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B5 flange.
  • shaft diameter: Ø28mm
  • diameter of flange: Ø250mm
  • Case size 100.
  • Color: Gray.
  • Housing materialweight: : Aluminum.
  • Weight: 22 Kg.
  • CE Marked.

Material for professional use, install in compliance with current regulations at the place of installation.
