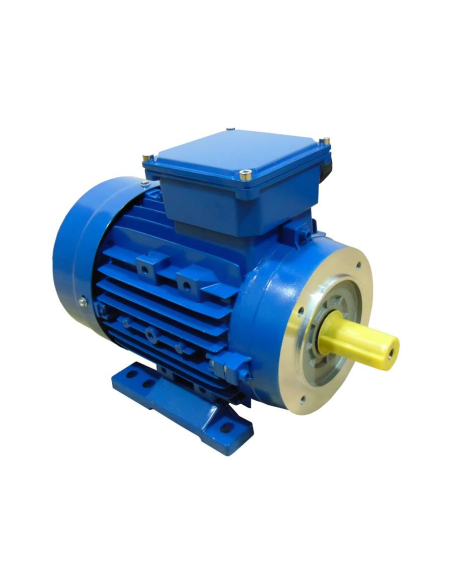

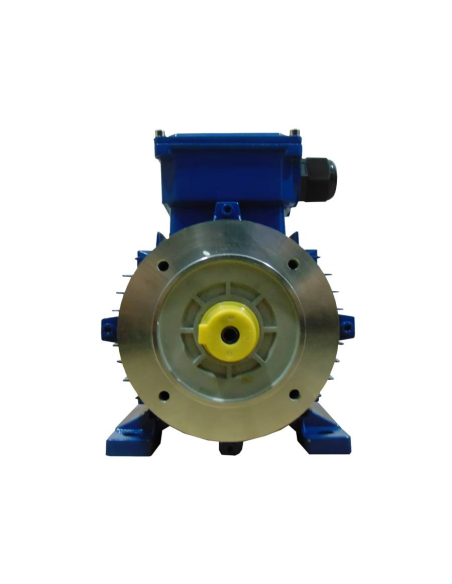

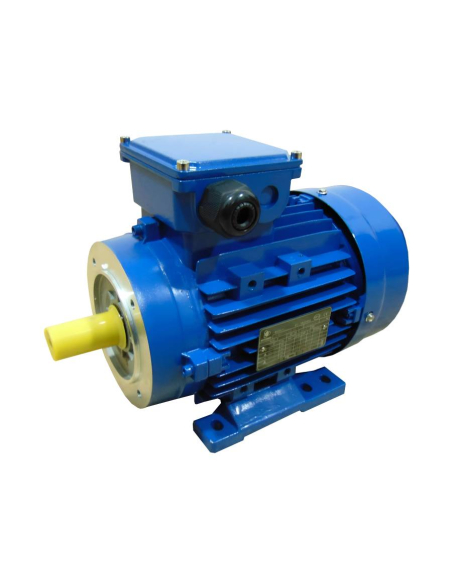

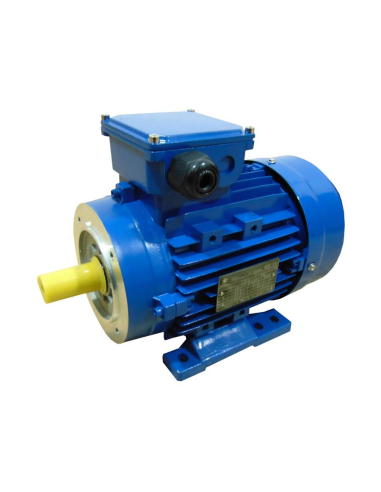

Three-phase motor 0.18kW/0.25HP 230/400V 3000 rpm B34 flange reduced casing

Three-phase electric motor 0.18kW (0.25HP) 230/400Vac 3000 rpm and B34 flange . Reduced casing made of cast aluminium, removable legs. Standard three-phase electric motors for general use, manufactured under European IEC regulations in aluminium with removable legs. Enamelled copper windings with class F insulation. The casing is closed and ventilated from the outside, with a seal on the output shaft which gives it a degree of protection IP55. The service factor is S1 (continuous service).

Characteristics:

• Manufacturer/Importer: Motorseg
• Reference: SS-56M3-2 B34 CR
• Motor type: Asynchronous squirrel cage
• Efficiency: IE1
• Voltage: 230/400 Vac, 50/60Hz
• Power: 0.18kW (0.25HP)
• Number of poles: 2
• Revolutions: 2800 rpm
• Intensity: 0.91/0.53 A
• Performance: 69%
• Continuous service: S1
• Protection class: IP55
• Mounting type: B34 flange Legs
• Shaft diameter: Ø9mm
• Case size : 56 (56M3)
• Color: Blue
• Housing material : Aluminum
• Weight: 4 Kg
• CE marking

For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection device to prevent damage due to overload.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the place of installation.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
