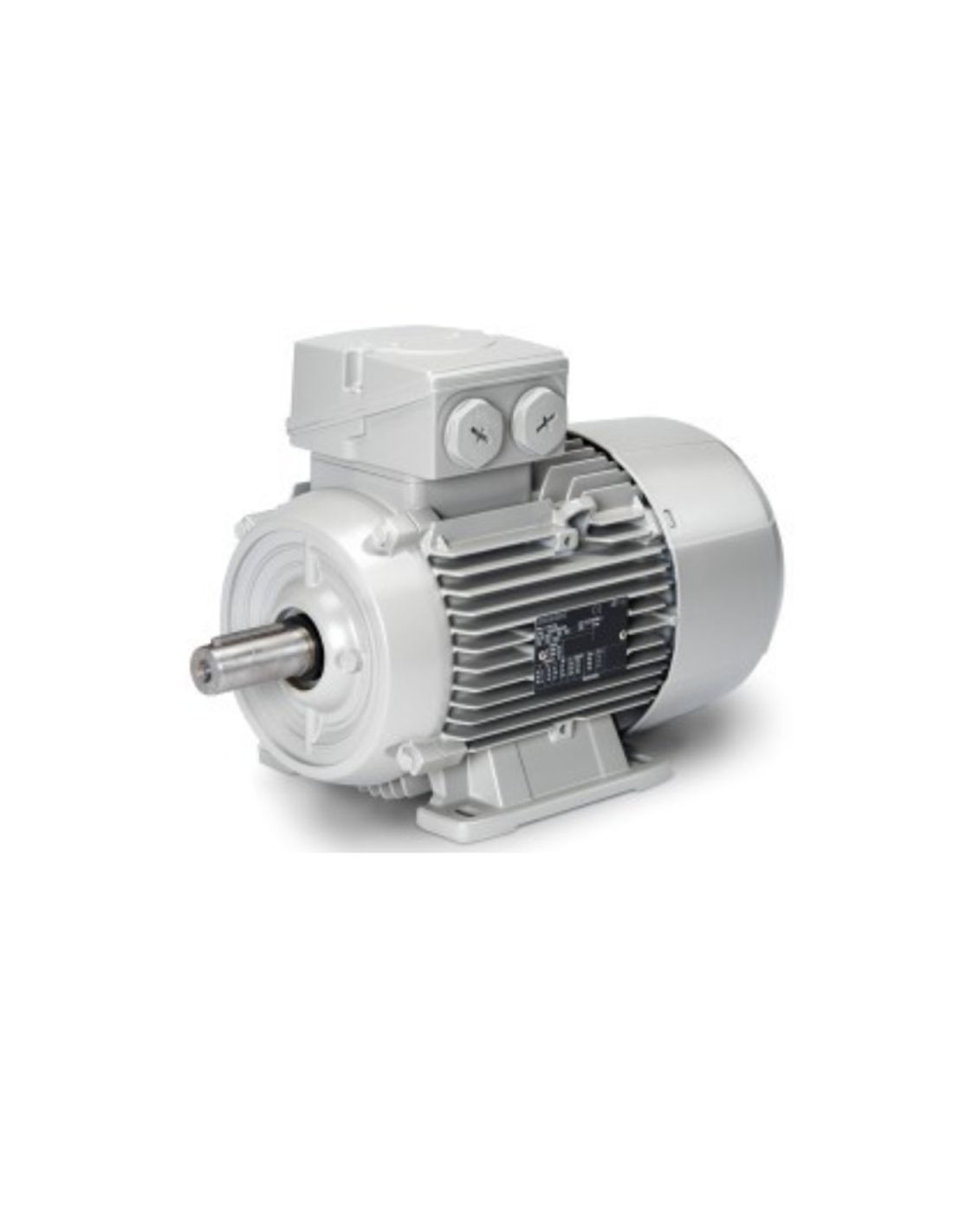

Three-phase motor 7.5Kw-10HP 3000 rpm 230/400Vac Flange B3 IE3 Siemens

€1,452.91 Tax included

€1,200.75 tax excl.

Three-phase electric motor 7,5kW (10HP) asynchronous 230/400Vac 2 Poles 3000 rpm Flange B3 (foot ). IE3 energy rating.

Manufactured by SIEMENS, SIMOTICS GP series in aluminum.

Ref: 1LE1003-1CA1-2AA4.

Logotipo Siemens

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 7.5kW (10HP) asynchronous 230/400V 3000 rpm Flange B3 (foot), aluminum housing.

Manufactured by SIEMENS, SIMOTICS GP series of aluminum.

Features:

  • Manufacturer: SIEMENS.
  • Series: SIMOTICS GP.
  • Reference: 1LE1003-1CA1-2AA4.
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230/400 V. III. 50-60 Hz.
  • Power: 7.5Kw 10HP.
  • Current: 14.1/24.42A.
  • Number of poles: 2.
  • Rpm: 3000 (2800).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Fastening type: Flange B3 (foot).
  • Shaft diameter: .38mm
  • Housing size 132.
  • Color: Grey.
  • Housing material: Aluminum.
  • Weight: 46 Kg.
  • CE marking.
