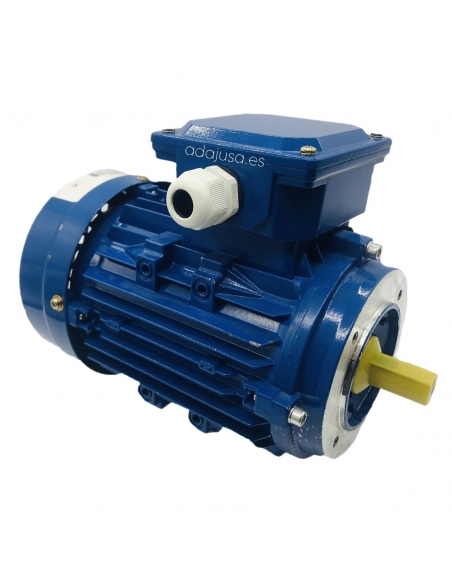

Three-phase motor 5.5Kw 7.5CV 230/400V 3000 rpm IE1 B14 flange reduced aluminum casing

Three-phase electric motor 5.5kW (7.5CV) asynchronous 230/400V 3000 rpm Flange. Reduced aluminum housing.
Standardized three-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55.

characteristics:

• Manufacturer/Importer: Motorseg
• Reference: SS-112M1-2 B14 CR
• Motor type: squirrel cage asynchronous.
• Efficiency: IE1
• Voltage: 230/400 V. III
• Power: 5.5Kw (7.5CV)
• Number of poles: 2
• Revolutions: 3000 (2900)
• Intensity: 11/6.3A
• Performance: 85.5%
• Continuous service: S1
• Protection grade: IP55
• Fastening type: B14 flange
• Shaft diameter: Ø28mm
• flange diameter: Ø160
• Case size 112 (112M1) reduced housing.
• PAM flange: 160/28
• Color blue.
• Housing material : Aluminum.
• Weight: 41 Kg
• CE marking.

For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.
