Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot
Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot
Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot
Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot
Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot
Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot

Three-phase motor 7.5Kw 10HP 400/690V 1500 rpm IE2 Flange B3 foot

€591.38 Tax included

€488.74 tax excl.

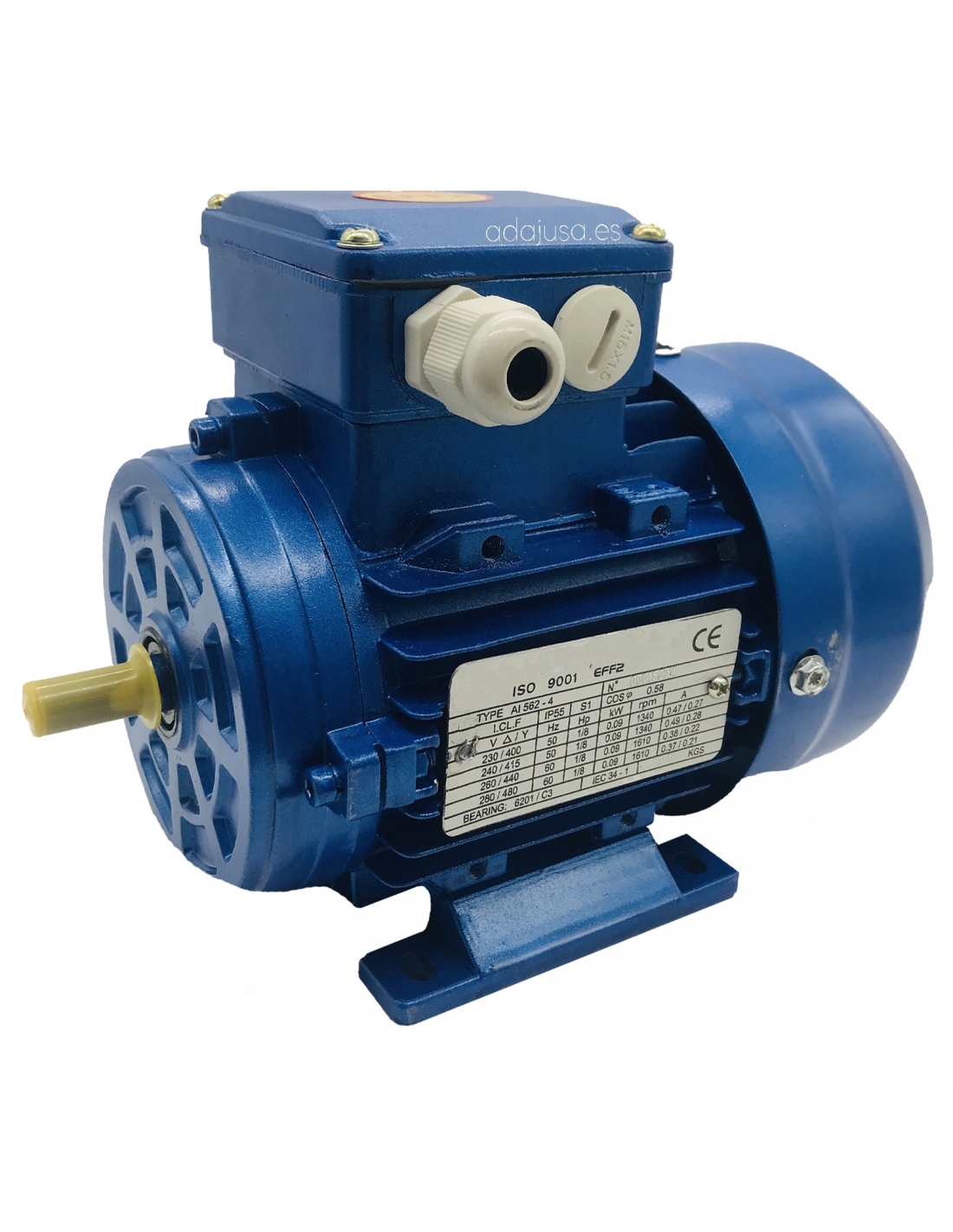

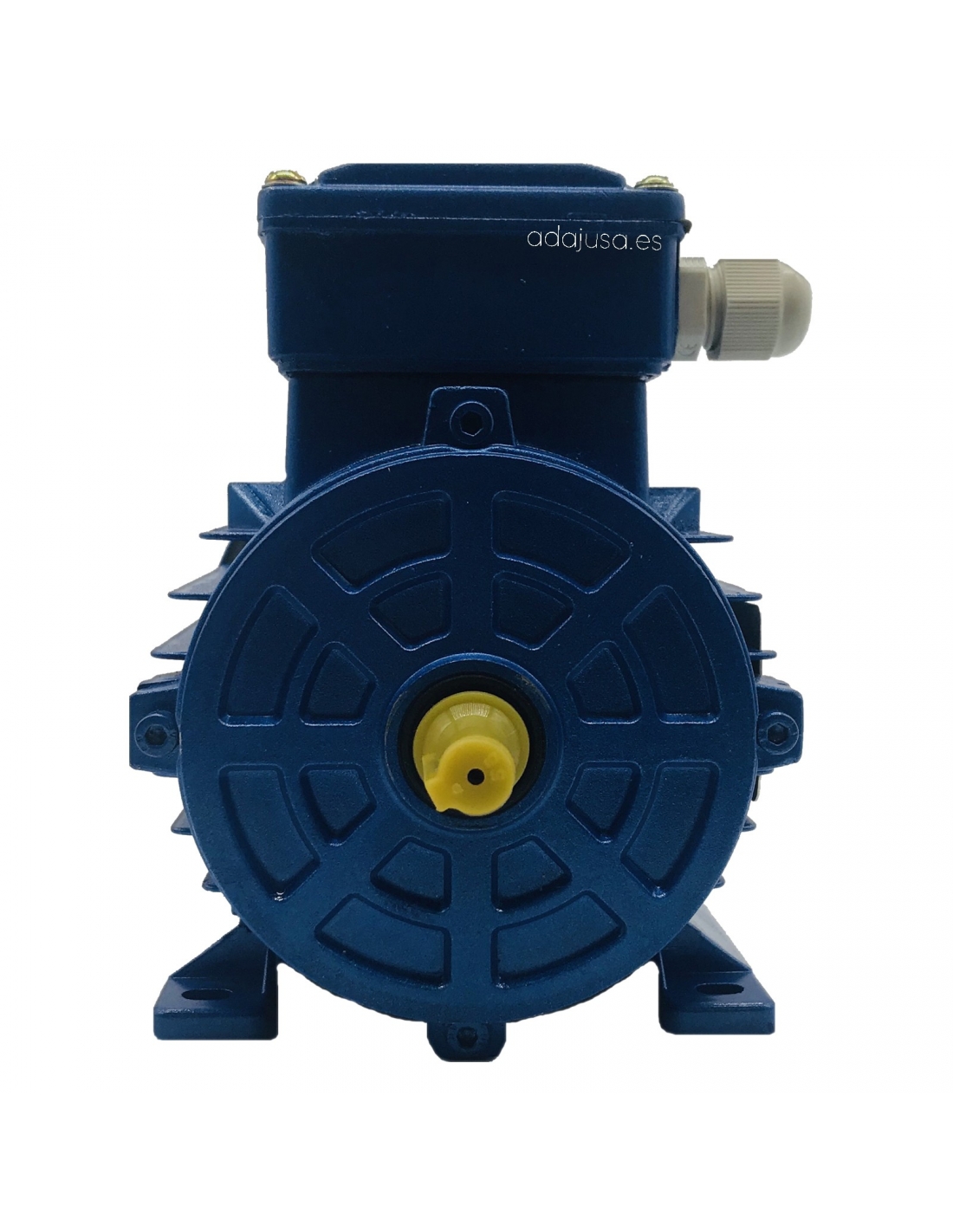

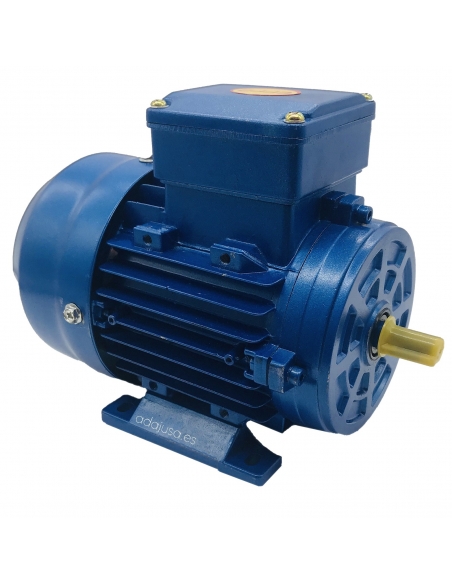

Three-phase electric motor 7.5kW (10HP) 380/690Vac., 1500 rpm (4 Poles), B3 leg flange, aluminium housing. Manufactured under European IEC regulations.

  • Voltage: 380/690Vac 50/60Hz.
  • Number of poles: 4.
  • Revolutions: 1500 rpm .
  • Flange: B3 Legs .
  • Shaft diameter: 38mm.
  • Power: 7.5Kw - 10hp.
  • Size: 132.
  • Energy efficiency: IE2


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 7.5kW (10HP) 380/690Vac 1500 rpm B3 flange ( Legs ). Made of cast aluminum, removable legs.
Standard three-phase electric motors for general use, manufactured in accordance with European IEC regulations in aluminium with removable legs. Enamelled copper windings with class F insulation. The casing is closed and has a seal on the output shaft which gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg/ ALREN
  • Reference: ALH132M4AB36E2
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE2
  • Voltage: 380/690 Vac., 50/60Hz.
  • number of poles: 4 Poles.
  • Revolutions: 1500 (1440) rpm .
  • Power: 7.5 Kw (10 HP).
  • Intensity: 15/8.6 A.
  • Performance: 87%.
  • Continuous service: S1.
  • Protection grade: IP55.
  • Fastening type: B3 Flange Legs .
  • Shaft diameter: Ø38mm.
  • Case size 132 (132M).
  • Color: Blue.
  • Housing material : Aluminum.
  • Weight: 54 Kg.
  • CE marked.

For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection switch to prevent damage due to overload.

Tabla dimensiones motores brida B3

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
