Three-phase 3-pole Switch disconnector 80A ON-OFF yellow-red
Three-phase 3-pole Switch disconnector 80A ON-OFF yellow-red
Three-phase 3-pole Switch disconnector 80A ON-OFF yellow-red

Three-phase 3-pole Switch disconnector 80A ON-OFF yellow-red

€41.83 Tax included

€34.57 tax excl.

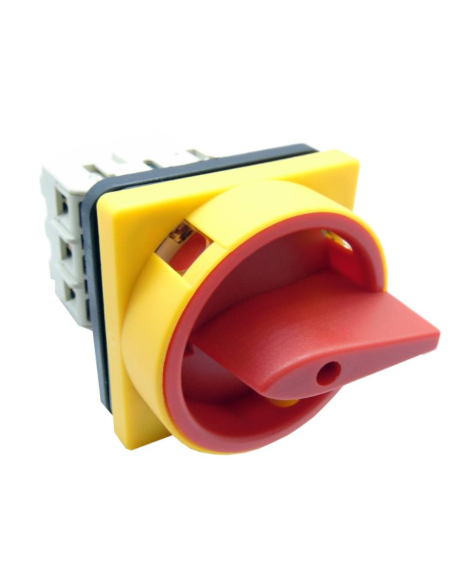

Rotary switch disconnector, 3-pole 80A main switch, 90º rotary handle, with two positions 0-1. Front plate size 64x64mm in yellow with red handle. Possibility of locking with padlock, lockable in position 0 (OFF).

Suitable for switching on/off and disconnecting electrical circuits, can be used as a motor switch, main switch, disconnector or as a safety switch. Maximum motor power 22kW.


Reference: TSS-80/3



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase ON-OFF Switch disconnector , 3 poles 80A for inductive loads (electric motors) and general control. 90º rotary handle, with two positions 0-1. Front plate size 64x64mm in yellow with red handle. Possibility of locking with a padlock, lockable in position 0 (OFF) . This switch allows starting motors up to a maximum power of 22kW 400Vac.


Switch with double interruption contacts, switching speed independent of manual operation, active parts are protected against accidental contact and self-extinguishing distribution board (UL94-V0) with high mechanical resistance of insulating material.

This series of rotary switches have been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which allows them to meet all safety requirements.




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TSS-80/3
  • Number of poles: 3
  • Supply voltage: 360-440V
  • Rated insulation voltage: 690V
  • Nominal intensity: 80A
  • Rated operating power at AC-3, 400V: 22kW
  • Rated operating power at AC-23A, 400V: 30kW
  • Execution as main switch: Yes
  • Execution as maintenance/repair switch: Yes
  • Execution as safety switch: Yes
  • Number of maneuvers/hour: 30
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42







L=82mm; A = 80mm; B=70mm; a = 64mm; d = 48mm; c = 4.2mm






Professional use material, install in compliance with the regulations in force at the place of installation.
