Disconnector Switch 3 - SE Series
Disconnector Switch 3 - SE Series

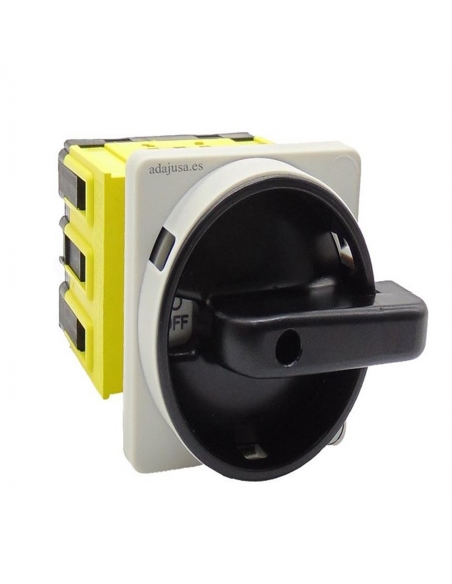

Disconnector switch 3 poles 63A full 67x67 grey lever black se giovenzana series

€37.22 Tax included

€30.76 tax excl.

Three-phasedisconnecting switch 63A, rotary knob 90º 0-1 of 67x67mm in gray color and black handle, made according to the strictest European standards that allow to comply with the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and main switch on machines. Suitable for three-phase 400Vac motors up to 22kw.

Part number: SE636703N

Esquema interruptor seccionador trifásico

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


63A three-phase disconnecting switch for inductive loads (electric motors) and general control. Rotary knob 90º with two positions 0-1 67x67mm, gray front knob with black handle and padlock possibility.

This series of rotary switches have been manufactured according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to comply with all safety requirements.

Mounting by panel mounting (back panel), IP-20 protection degree on terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

This three-phase switch is suitable for three-phase motors up to 11kw connected to 230Vac or 22kw connected to 400Vac.

Delivery includes:
  • Three-phase switch: SE323003R
  • Front control: 009/0001

Note: Padlock not included in the scope of supply.

Features:

  • Brand: Giovenzana.
  • Supplier reference: SE323003R.
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Rated thermal current ith: 40A.
  • Rated current Ie (AC21A): 32A.
  • Rated current Ie (AC22A): 32A.
  • Rated current Ie (AC23A): 32A.
  • Rated current Ie (AC3): 30A.
  • Rated interrupting capacity: 10kA.
  • Contacts: Double interrupting slow opening.
  • Number of operations / hours: 120.
  • Mechanical durability: 100,000 operations.
  • Switching angle: 90º.
  • Flush mounting.
  • Protection degree:
    • 1-4-4-4X type controls: IP-65.
    • Terminals: IP-20.
  • Standards: CE; IEC60947; IEC60204; UL508 CSA 22.2 Nº14

Table of intensities and powers of use:

  • Category of use AC-21A: 32A.
  • Category of use AC-22A: 32A.
  • Use category AC-23A:
    • Standard three-phase 230Vac motors: 32A - 9kW.
    • Standard three-phase 400Vac motors: 32A - 18.5kW.
  • Use category AC-3:
    • 230Vac three-phase standard motors: 30A - 9kW.
    • Standard three-phase 400VAc motors: 30A - 15kW.

    Dimensions:

    Dimensiones interruptor SE1632

    Mounting:

    Monaje interruptores serie SE

    As additional elements we can add the following references:

    • Auxiliary contact closed: GIPL004001
    • Auxiliary contact open: GIPL004002
    • Auxiliary contact fixing plate: GI11814021
