3-pole cam switch 32A full 64x64mm - Giovenzana adajusa
3-pole cam switch 32A full 64x64mm - Giovenzana adajusa

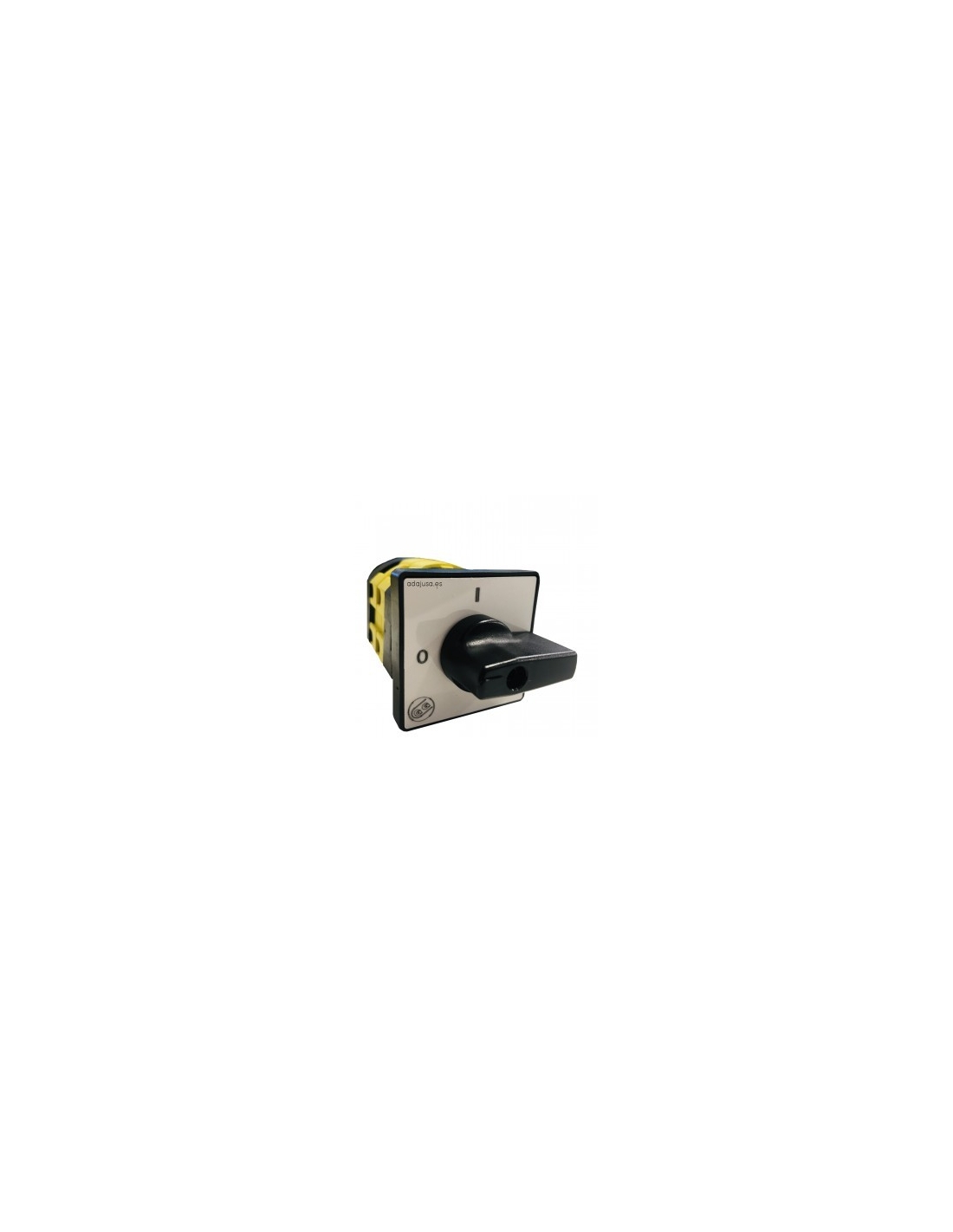

Cam switch 3-pole 32A full 64x64mm black lever - Giovenzana

€23.21 Tax included

€19.18 tax excl.

Rotary cam switch, 32A three-phase main switch, 90º 0-1 rotary knob, aluminium front plate and black lever, made to the strictest European standards, which allow to meet safety requirements.
Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines.

reference: GI320364N
Esquema interruptor seccionador trifasico

Giovenzana

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Out of stock

No queries yet, leave the first!


32A three-phase cam switch for inductive loads (electric motors) and general control. Rotary control 90º, with two positions 0-1. Aluminum plate and lever in black.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of ul94 VO self-extinguishing material.

Supply includes:

  • Three-phase switch: C0320003R
  • Front plate with black lever: 007/0001

characteristics:

  • Brand: Giovenzana
  • Switch reference: CO320003R
  • Front reference: 007/0001
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 32A.
  • Nominal interrupt capacity: 10kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A usage category: 32A.
  • AC-22A use category: 32A.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 30A - 5.5kW.
  • Standard three-phase motors 230Vac: 30A - 9kW.
  • Standard three-phase motors 400Vac: 24A - 15kW.
  • AC-3 Usage Category:
  • Standard single-phase 230Vac motors: 25a - 4kW.
  • Standard three-phase motors 230Vac: 23A - 11kW.
  • Standard three-phase motors 400VAc: 23A - 15kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 25a.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 20a.
