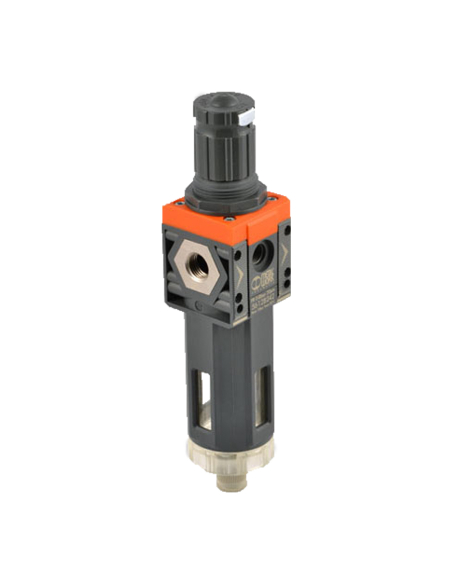

Filtering unit with 1/4 pneumatic pressure regulator, composed of 1 element (Filter-regulator) with semi-automatic purge. This device combines in a single unit the functions of filtration, condensation separation and pressure regulator. The pneumatic pressure regulation margin is between 0 and 12 kg/cm2, the degree of filtering is 50 μm.
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent resistance to corrosion.
The type of purge is semi-automatic with condensate discharge, independent of pressure and flow.
Note: the pressure gauge is not included in the supply, it must be ordered separately.
Characteristic:
- Manufacturer: Metal Work
- Manufacturer reference: FR SY1 1/4 50 012 RMSA
- Code: 5612B362
- Thread size: 1/4"
- Group Size: Size 1
- Regulation field: 0 to 12 bar .
- Maximum inlet pressure: 15 bar .
- Manual condensate drain and automatic drain when pressure is removed.
- Built-in overpressure bleed valve.
- Filtration degree: 50μm.
- Cup capacity: 30cm3
- Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 800
- Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 2000
- Relieving discharge flow rate, at 6.3 bar (0.63 MPa; 91 psi) ( Nl/min): 70
- Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
- Thread size for pressure gauge: 1/8"
- Wall fixing screws: M4x45.
- Mounting position: Vertical.
- Working temperature: -10 to +50ºC.
- Included: full passage in discharge by zeroing the inlet pressure and unlockable knob.
For other sizes or references: consult.
.jpg?1644420548456)
Material for professional use, install in compliance with the regulations in force at the place of installation.
For more information, you can download the technical sheet by clicking on the "Annexes" tab.
