Luminous red switch 16A-250V 2 circuits 28.5x21mm Tes Series | Adajusa
Luminous red switch 16A-250V 2 circuits 28.5x21mm Tes Series | Adajusa

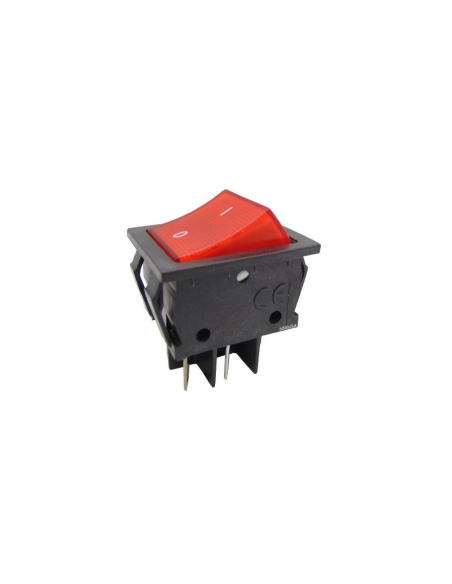

ON-OFF switch with red indicator light 16A-250V 2 circuits 28.5x21mm Tes Series

€0.92 Tax included

€0.76 tax excl.

TES-42

Flush mounted ON-OFF switch, with red indicator light, 2 open contacts, 16(6)A - 250V. Dimensions 28,5x21mm.




Reference: TES-42

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

1 question about the product
Privacy
Shipments
Returns


Flush-mounted ON-OFF switch, with red indicator light, 2 open contacts, 16(6)A - 250V.

Flush-mounted switches with indicator light are suitable for installation in control technology devices and various household and other electrical appliances as they allow displaying the status of the device. Easy and quick installation.



Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Part number: TES-42
  • 2 Circuits: Position 1 - 0
  • Number of poles: 4
  • Indicator light: Red
  • Marking: I - O
  • Rated voltage: 250V
  • Rated current: 16A AC1 230V / 6A AC15 230V / 0,27A DC13 250V
  • Rated voltage from isolation: 660V
  • Rated impulse voltage: 6kV
  • Connection cable: 0.5 - 2.5mm2
  • Quick connect terminals: 6,3x0,8mm
  • Electrical life: 5x104 cycles
  • Life expectancy: 15000 hours
  • Ambient operating temperature: -20oC to +55oC
  • Operating relative humidity: 95%
  • Vibration resistant
  • Degree of protection: IP40
  • Standards: EN 61058-1, EN 61058-2-5




Dimensions:





Material for professional use, install in compliance with the regulations in force at the place of installation

Questions

Question
Bonjour, est ce que ce modèle est compatible avec les interrupteur de tableau cellule de camping car . Pour mettre la pompe à eau en marche ? Merci je cherche aussi un interrupteur de bascule batterie porteur vers auxiliaire. Si vous avez
Answer
Bonjour.

La première chose que nous devons savoir est la tension à laquelle les éléments que vous avez installés fonctionnent, il peut s'agir de 230 Vac monophasé ou de courant continu, la magnétothermie est différente.

https://adajusa.fr/fr/839-disjoncteurs-magneto-thermiques-a-courant-continu

https://adajusa.fr/fr/840-disjoncteurs-magneto-thermiques-2-poles-pour-courant-continu-ls

https://adajusa.fr/fr/144-disjoncteurs-magneto-thermiques-2-poles

L'article que vous demandez est destiné aux lignes triphasées de 400 Vac.

Veuillez toutefois vérifier qu'il correspond à vos spécifications.

Cordialement
Benoit on 05/25/2023 21:23:54
