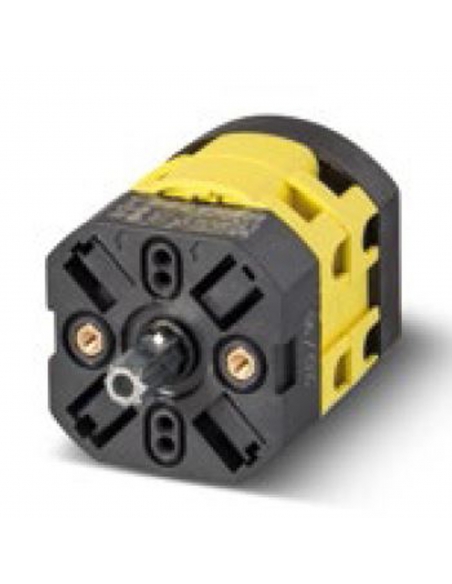

Three-phase star-delta switch 20A - Giovenzana

Q: Grazie mille, forse mi sono espresso male. Volevo sapere se avesse la predisposizione per il contatto della messa a terra. Grazie mille e cordiali saluti.

Buongiorno. Il motore è quello che deve essere collegato a terra, nell'interruttore vengono collegati i cavi che corrispondono ai collegamenti delle bobine del motore per effettuare la manovra di retromarcia. Saluti Adajusa

Q: Il commutatore ha il filo giallo/verde per la messa a terra?

Gentile Cliente, Questo tipo di interruttore non viene fornito con alcun tipo di filo Ti auguro il meglio ADAJUSA

€28.75 Tax included

€23.76 tax excl.

GIP0200015R

Star-triangle starter switch 20a for electric motors. It allows the start and stop of a three-phase electric motor in star-triangle mode to reduce the initial consumption peak during start-up.

Engine power 7.5hp (5.5Kw) with voltage 400Vac.

Reference: P0200015R

Logotipo Giovenzana

2 questions about the product

Privacy

Shipments

Returns

Star-triangle 20A starter switch for 7.5hp (5.5kW) electric motors. It allows the start of an electric motor by manually switching star-triangle.

This series of rotary inverter switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by rear-panel fixation (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

Esquema interruptor estrella-triangulo

Characteristics:

Brand: Giovenzana.
Supplier reference: P0200015R.
number of poles: 3.
Rated voltage Ue: 690V.
Nominal intensity Ie (AC21A): 20A.
Rated interrupt capacity: 5kA.
Mechanical durability: 1,000,000 maneuvers.
Built-in assembly.
Degree of protection:

Controls type 1-4-4X: IP-65.
Lever-only controls: IP-40.
Bornes: IP-20.

Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Assembly:

Montaje interruptor de levas trifásicos

Dimensiones interruptor levas PO20-16-12

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.

Phoenix cam switches

Cam switches Phoenix Giovenzana

Download (3.15MB)

Questions

Question

Grazie mille,

forse mi sono espresso male.

Volevo sapere se avesse la predisposizione per il contatto della messa a terra.

Grazie mille e cordiali saluti.

Answer

Buongiorno.

Il motore è quello che deve essere collegato a terra, nell'interruttore vengono collegati i cavi che corrispondono ai collegamenti delle bobine del motore per effettuare la manovra di retromarcia.

Saluti

Adajusa

Daniele on 11/04/2024 09:42:41

Question

Il commutatore ha il filo giallo/verde per la messa a terra?

Answer

Gentile Cliente,

Questo tipo di interruttore non viene fornito con alcun tipo di filo

Ti auguro il meglio
ADAJUSA

Daniele on 11/04/2024 09:11:51
