SA-207 Ball Bearing ISB | Adajusa
SA-207 Ball Bearing ISB | Adajusa

Ball bearing insert SA207-2RS with eccentric for sheet metal housing - ISB

€9.57 Tax included

€7.91 tax excl.

Ball bearingwith eccentric ring SA207-2RS, dimensions 35x72x17mm. Single row deep groove ball bearing to be mounted on stamped sheet metal housing, single-sided collar and eccentric ring fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Part number: SA207-2RS

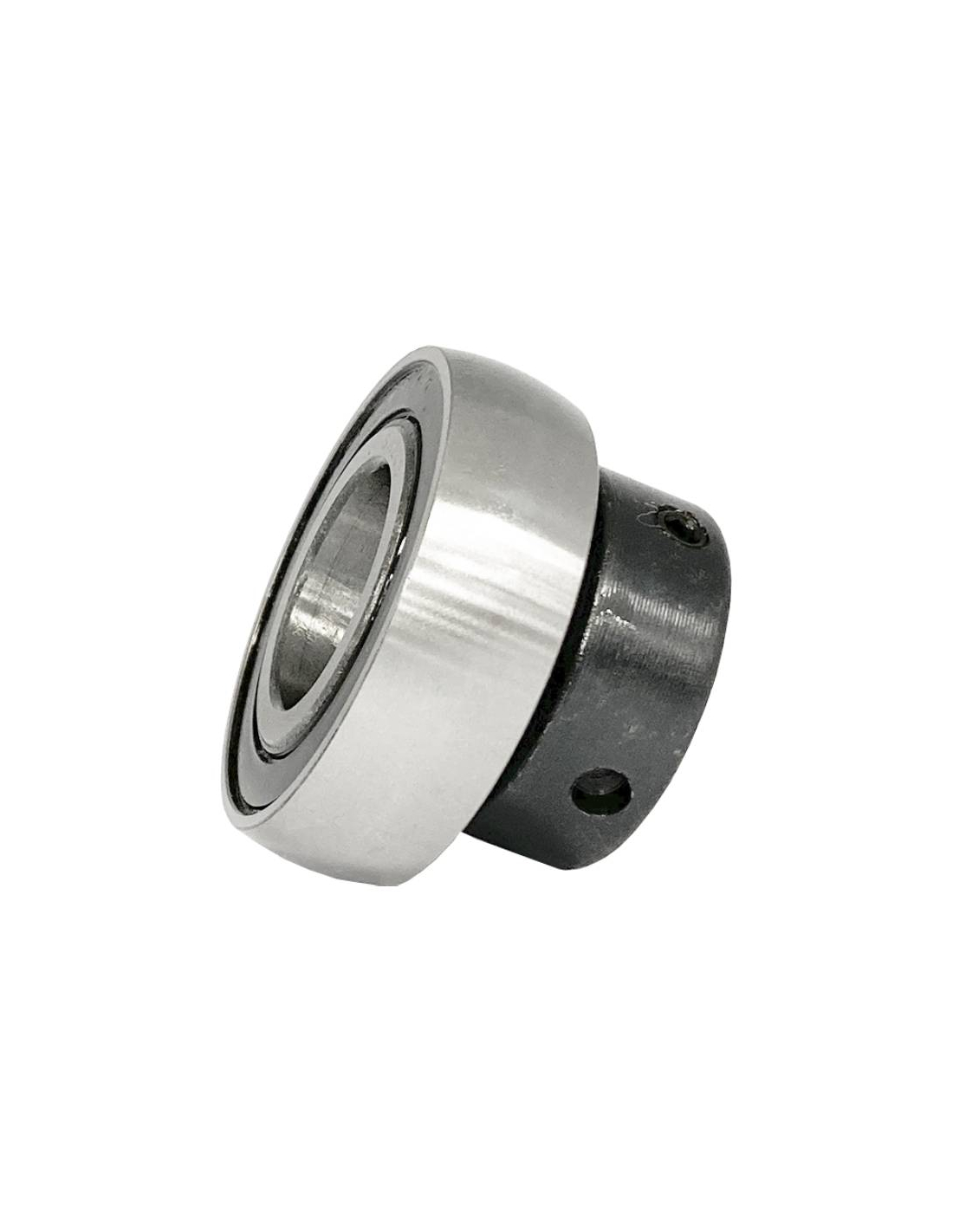

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Ball bearing with eccentric SA207-2RS. Single row deep groove ball bearing to be mounted on a stamped sheet metal support, single-sided collar and eccentric ring fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Dimensions: Ø35xØ72x17mm


Characteristics:

  • Manufacturer ISB
  • Part number: SA207-2RS
  • Inner diameter: 35mm
  • Outside diameter: 72mm
  • Sealing: 2RS type, elastic (NBR) on both sides
  • Material: hardened steel
  • Dynamic load capacity C: 24500N
  • Static load capacity C₀: 14600N
  • Weight: 0,42Kg


Dimensions:


  • d: 35 mm
  • D: 72 mm
  • B1: 38.9 mm
  • B: 25.4 mm
  • C: 17mm
  • S: 9.5 mm
  • ds: M8x1
  • G: 6.8 mm
  • B5: 17.5 mm
  • d3: 55.6 mm
  • F: 5.7 mm



Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation
